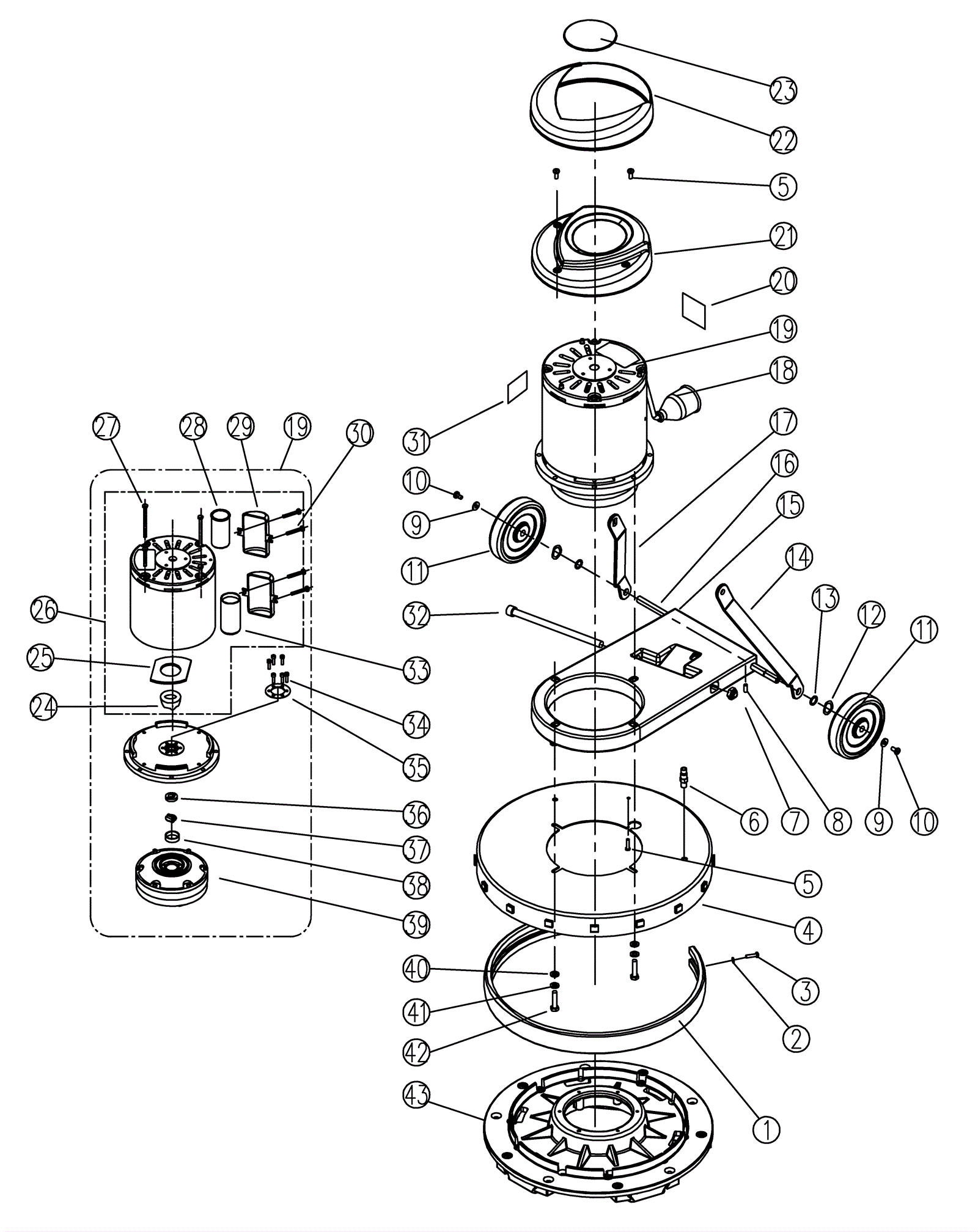

IP17 Base Assembly

#PartDescriptionPriceReqNotesAvailability
1a 278-1088 17 inch bumper $16.02 1 usually ships 5-12 days
1b 278-1089 20 inch bumper $16.02 1 usually ships 5-12 days
2 999-9100 Washer M5 flat stainless steel $5.83 4 ships same day
3 278-1090 Screw M5 x 14mm $3.17 2 usually ships 5-12 days
4a 278-1091 17 inch frame $66.70 1 usually ships 5-12 days
4b 278-1092 20 inch frame $135.52 1 usually ships 5-12 days
5 999-9109 Screw M5-.8 x 12mm pan head phillips stainless steel $0.99 5 ships same day
6 278-1093 Barb hose $6.36 1 usually ships 5-12 days
7 999-0519 Nut M12-1.75 nylon insert lock stainless steel $2.12 1 ships same day
8 278-0007 Set screw $3.17 2 usually ships 5-12 days
9 999-1803 Washer M6 flat fender stainless steel $0.99 2 ships same day
10 999-1383 Screw M6-1 x 16mm hex head stainless steel $0.99 2 ships same day
11 278-1095 5 inch wheel $26.69 2 usually ships 5-12 days
12 278-1096 Washer M12 lock $3.17 2 usually ships 5-12 days
13 278-1097 Washer M12.5 $3.17 2 usually ships 5-12 days
14 278-1098 Left hand bracket $19.25 1 usually ships 5-12 days
15 278-1099 Aluminum base motor $106.72 1 usually ships 5-12 days
16 278-1100 Axle $19.36 1 usually ships 5-12 days
17 278-1101 Right hand bracket $19.25 1 usually ships 5-12 days
18 278-1102 Plug protector $3.17 1 usually ships 5-12 days
19 278-1103 Motor with gear box $1,291.71 1 usually ships 5-12 days
20 278-1104 Read manual decal $3.17 1 usually ships 5-12 days
21 278-1105 Motor cover $39.71 1 usually ships 5-12 days
22 278-1106 Top cover $10.98 1 usually ships 5-12 days
23 278-0029 ICE decal $6.36 1 usually ships 5-12 days
24 278-1107 Stationary switch $48.05 1 usually ships 5-12 days
25 278-1108 Centrifugal switch $40.02 1 usually ships 5-12 days
26 278-1109 120V motor $519.75 1 usually ships 5-12 days
27 278-1110 Bolt with washer kit $6.36 4 usually ships 5-12 days
28 278-1111 Start up capacitor $67.89 1 usually ships 5-12 days
29 278-1112 Cover capacitor $16.02 2 usually ships 5-12 days
30 N/A Not available Call for price 4 (screw 8-32UNCX10) usually ships 3-26 days
31 278-1113 Motor decal $2.89 1 usually ships 5-12 days
32 N/A Not available Call for price 1 (hex socket head m12x 210) usually ships 3-26 days
33 278-1114 Running capacitor $42.42 1 usually ships 5-12 days
34 278-1115 Screw 10-32 X 25.4 $3.17 6 usually ships 5-12 days
35 278-1116 Big washer $3.17 1 usually ships 5-12 days
36 278-1117 Ring guard $16.02 1 usually ships 5-12 days
37 278-1118 Coupling $15.73 1 usually ships 5-12 days
38 278-1119 Sleeve $6.36 1 usually ships 5-12 days
41 999-0674 Washer M8 split lock plain finish $0.99 4 ships same day
42 278-1018 Bolt M8 x 55mm hex head $3.17 4 usually ships 5-12 days
43a 278-1120 16 inch pad driver assembly $200.20 1 (iP 17) usually ships 5-12 days
43b 278-1121 19 inch pad driver assembly $200.20 1 (iP 20) ships same day
