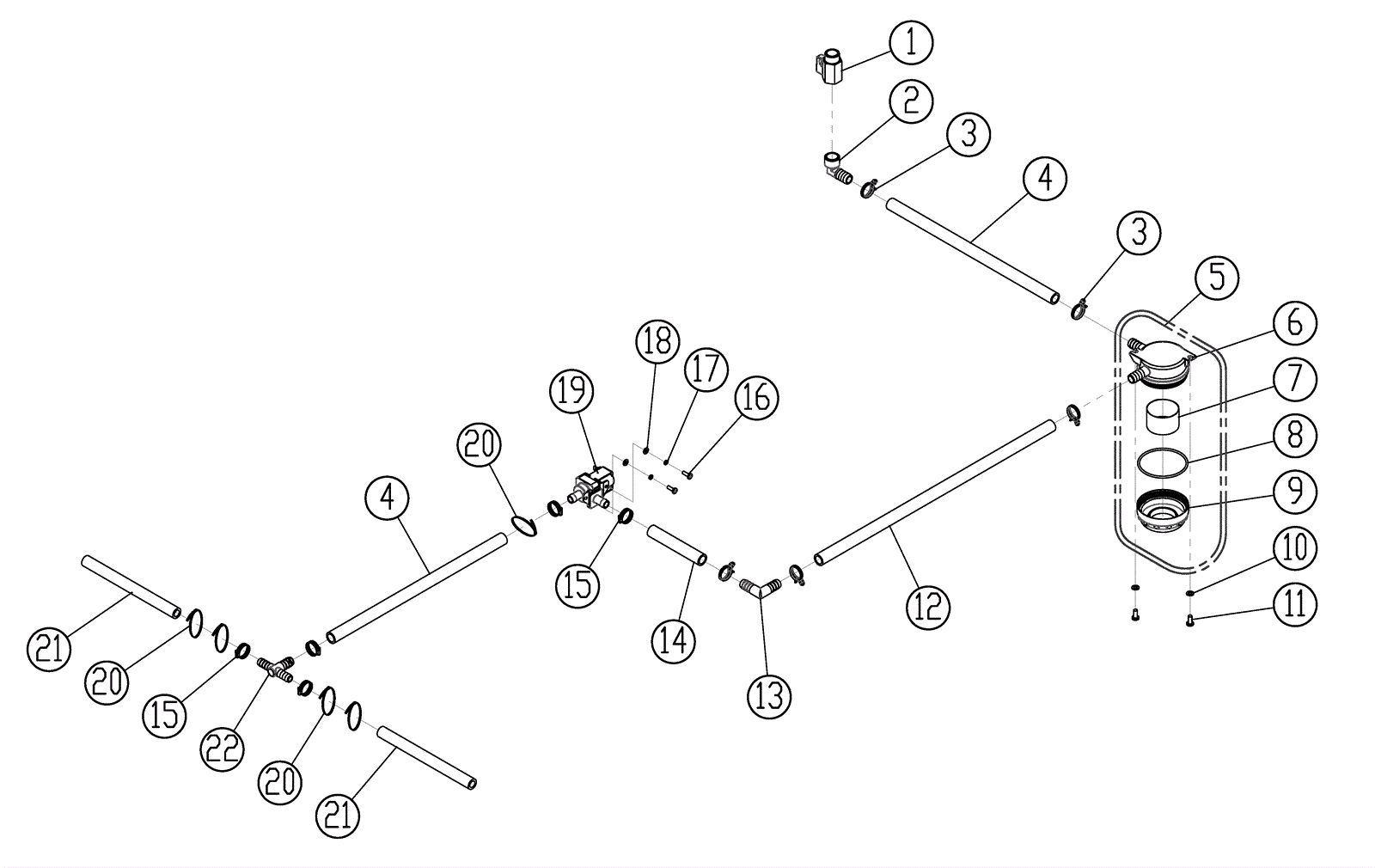

I32BT Solution Assembly

#PartDescriptionPriceReqNotesAvailability
1 278-0069 Ball valve $24.55 1 usually ships 27-41 days
2 278-0070 Elbow $8.36 1 usually ships 27-41 days
3 278-0303 Clamp $3.65 5 usually ships 27-41 days
4 278-1036 Hose 12mm x 330mm $7.30 2 usually ships 27-41 days
5a 278-0307 Filter assembly $32.01 1 (includes 6-9) ships same day
5b 278-0307 Filter assembly $32.01 1 (includes 6-9) ships same day
6 278-0308 Filter assembly base $7.30 1 usually ships 27-41 days
7 278-0310 40 mesh filter screen assembly $7.30 1 usually ships 27-41 days
8 278-0311 O-ring $3.65 1 ships same day
9 278-0312 Filter assembly cap $12.65 1 ships same day
10 999-9100 Washer M5 flat stainless steel $5.83 2 ships same day
11 999-9109 Screw M5-.8 x 12mm pan head phillips stainless steel $0.99 2 ships same day
12 278-1037 Hose 12mm x 480mm $7.30 1 usually ships 27-41 days
13 278-0305 Elbow $3.65 1 usually ships 27-41 days
14 278-1038 Hose 12mm x 120mm $3.65 1 usually ships 27-41 days
15 278-0244 Clamp $3.65 5 usually ships 27-41 days
16 999-1645 Screw M4-.7 x 12mm hex head stainless steel $1.29 2 ships same day
17 999-1954 Washer M4 lock $0.99 2 ships same day
18 999-9089 Washer M4 flat stainless steel $0.99 2 ships same day
19 278-2193 24V solenoid valve $57.40 1 usually ships 27-41 days
20 278-0043 Nylon tie $3.65 5 usually ships 27-41 days
21 278-1039 Hose 10mm x 180mm $3.65 2 usually ships 27-41 days
22 278-1040 Tee fitting $3.65 1 (plastic) usually ships 27-41 days
