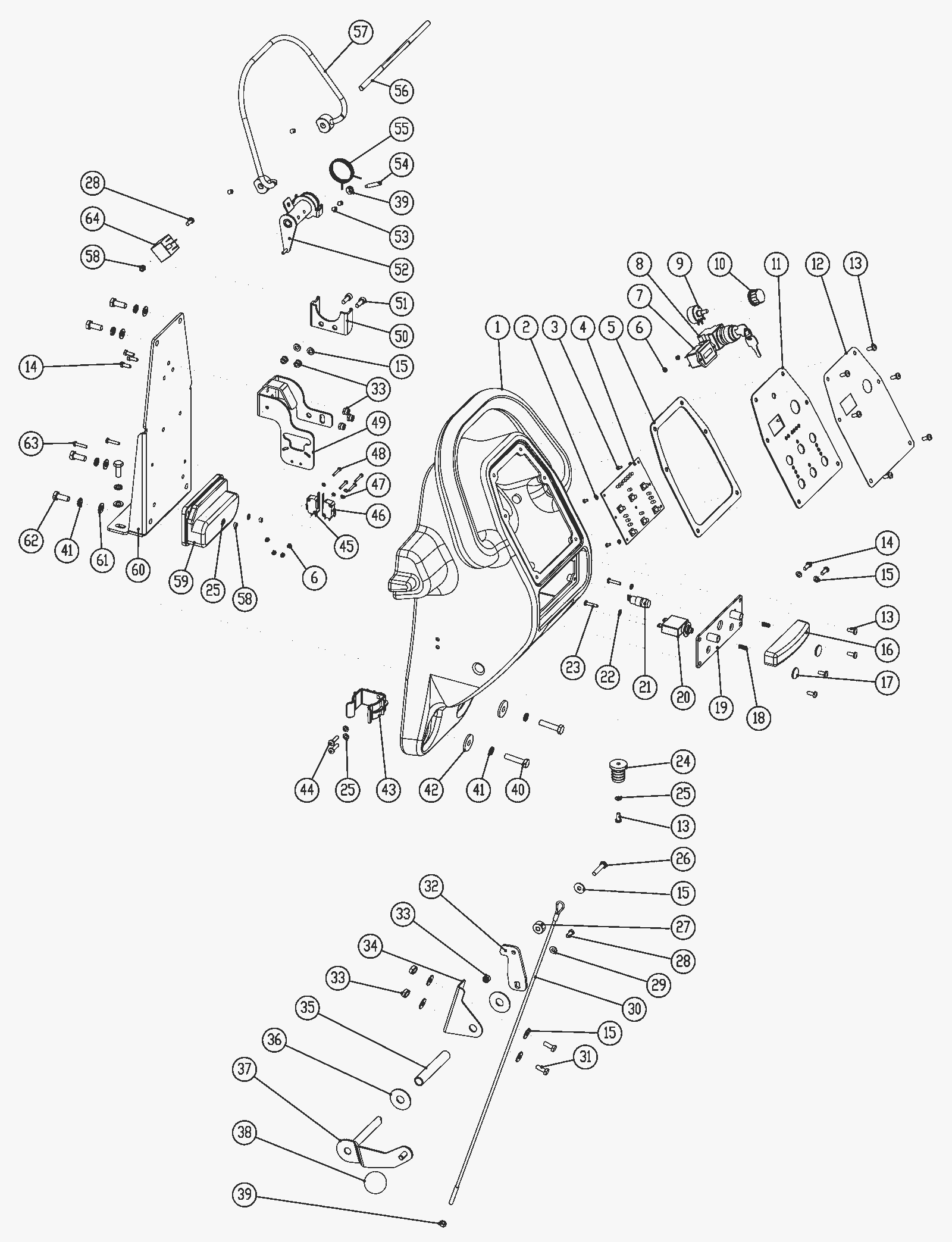

Control Console Assembly

#PartDescription ReqNotesAvailability
1 278-0750 Control console housing 1
2 999-1521 Washer M3 flat stainless steel 5
3 999-6715 Screw M3-.5 x 6mm pan head stainless steel 5
4 278-1009 PCB assembly 1
5 278-0096 Gasket 1
6 999-1161 Nut M3-.5 hex nylock stainless steel 6
7 278-0755 Timer 1
8a 278-0756 Key switch 1
8b 278-0318 Key (pkg of 2) 1
9 278-0757 Potentiometer kit 1
10 278-0758 Potentiometer knob 1
11 278-0759 Control panel 1
12a 278-1010 Control panel decal 1 (i28BT)
12b 278-1135 Control panel decal 1 (i28BT, i32BT)
13 999-9109 Screw M5-.8 x 12mm pan head phillips stainless steel 12
14 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish 5
15 999-1803 Washer M6 flat fender stainless steel 9
16 278-0151 Emergency stop button 1
17 278-0762 Cap 2
18 278-0149 Spring 2
19 278-0148 Circuit breaker base 1
20 278-0676 Circuit breaker 1
21 278-0147 Emergency stop switch kit 1
22 999-9089 Washer M4 flat stainless steel 4
23 278-0146 Screw M4 x 20mm 2
24 278-0109 Connector 1
25 999-9100 Washer M5 flat stainless steel 5
26 278-0111 Bolt M6 x 30mm 1
27 278-0113 Lifting rope spacer 1
28 278-0114 Bolt M5 x 12mm 2
29 278-1909 Washer M5x15x10 stainless steel 1
30 278-1011 Lift cable 1
31 999-0502 Bolt M6-1 x 20mm hex head full thread zinc 2
32 278-0116 Baffle 1
33 999-0497 Nut M6-1 nylon insert lock stainless steel 8
34 278-0117 Bracket 1
35 278-0766 Sleeve 1
36 278-0119 Washer 2
37 278-0633 Squeegee lifting handle 1
38 278-0050 Ball knob 1
39 278-0037 Upholstery tool assembly 2
40 999-0787 Bolt M8-1.25 x 40mm hex head full thread stainless steel 2
41 999-0674 Washer M8 split lock plain finish 8
42 999-6695 Washer M8 fender stainless steel 2
43 278-0124 Drain hose clamp 1
44 278-0104 Screw M5 x 15mm 2
45 278-0154 Micro switch (3 terminal) 1
46 278-0134 Micro switch 1
47 278-0089 Washer M3 tooth 4
48 278-0135 Screw M3 x 20mm 4
49 278-0136 Switch bracket 1
50 278-0137 Spring bracket 1
51 278-0138 Screw M6 x 16mm 2
52 278-0139 Actuator 1
53 278-0007 Set screw 4
54 278-0141 Screw M6 x 30mm 1
55 278-0140 Spring 1
56 278-0142 Shaft 1
57 278-0006 Bail lever 1
58 999-0953 Nut M5-.8 hex nylon insert lock stainless steel 3
59 278-1012 Speed control board- DO NOT ORDER SEE NOTE 1
60 278-0768 Control console rear plate 1
62 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain 6
63 278-0770 Screw M5 x 35mm 2
64 278-0771 Relay 1
