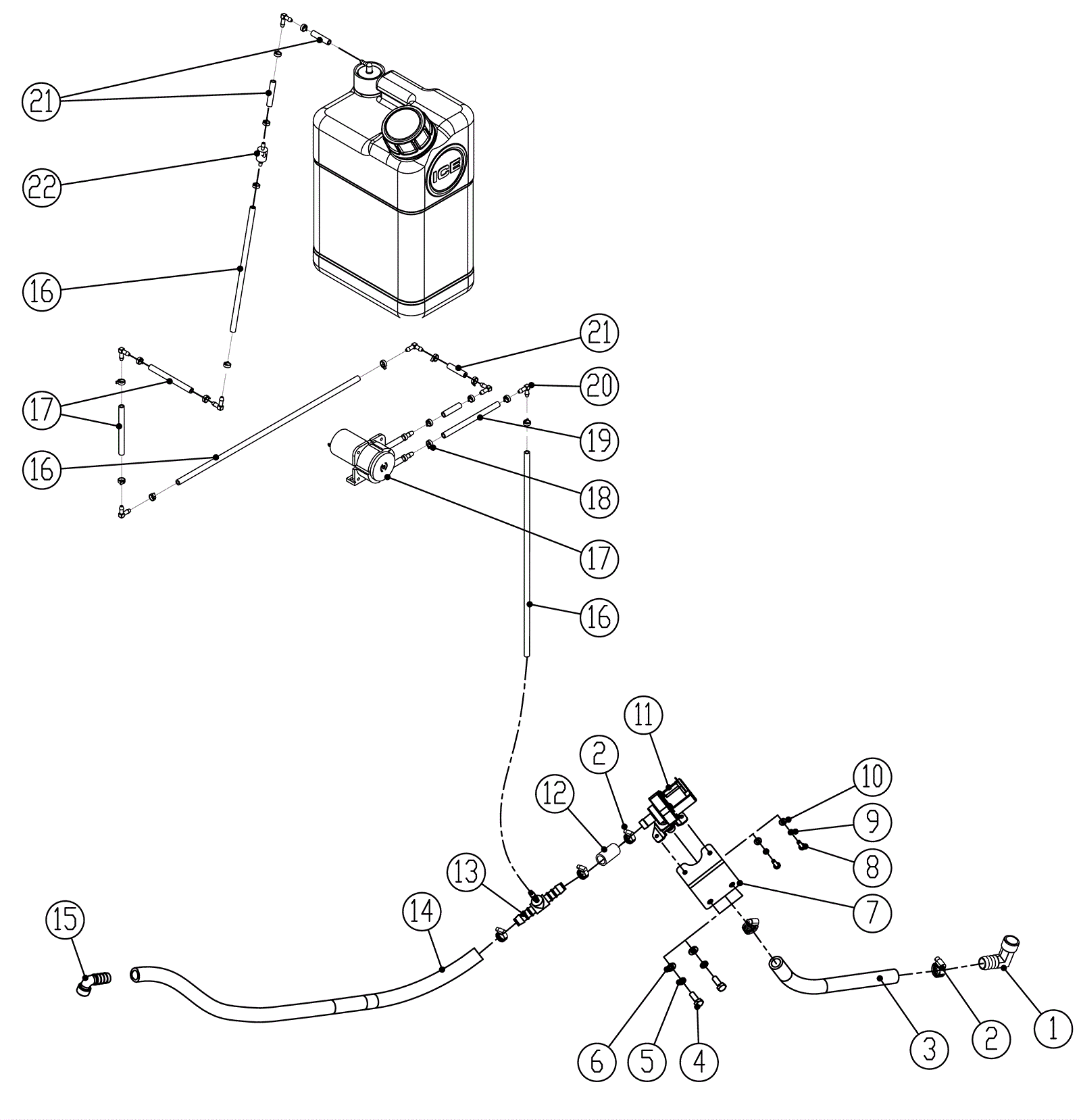

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
278-0070
|
Elbow |
1 |
|
|
2 |
278-0066
|
Clamp |
6 |
|
|
3 |
278-0514
|
8 1/2 inch tube |
1 |
|
|
4 |
999-0507
|
Bolt M6-1 x 16mm hex head full thread plain finish |
2 |
|
|
5 |
999-1117
|
Washer M6 split lock stainless steel |
2 |
|
|
6 |
999-6714
|
Washer M6 x 12mm flat stainless steel |
2 |
|
|
7 |
278-0628
|
Solenoid valve bracket |
1 |
|
|
8 |
999-1645
|
Screw M4-.7 x 12mm hex head stainless steel |
2 |
|
|
9 |
999-1954
|
Washer M4 lock |
2 |
|
|
10 |
999-9089
|
Washer M4 flat stainless steel |
2 |
|
|
11 |
278-2193
|
24V solenoid valve |
1 |
|
|
12 |
278-0304
|
Tube |
1 |
|
|
13 |
278-0629
|
Plastic fitting |
1 |
|
|
14 |
278-0243
|
Tubing |
1 |
|
|
15 |
278-0619
|
Elbow fitting |
1 |
|
|
16 |
278-0515
|
13 inch tube |
3 |
|
|
17 |
278-0558
|
Detergent pump |
1 |
|
|
18 |
278-0521
|
Tie |
19 |
|
|
19 |
278-0605
|
4 inch tubing |
3 |
|
|
20 |
278-0432
|
Fitting |
7 |
|
|
21 |
278-0519
|
1 1/2 inch tube |
4 |
|
|
22 |
278-0431
|
One way valve |
1 |
|
|
