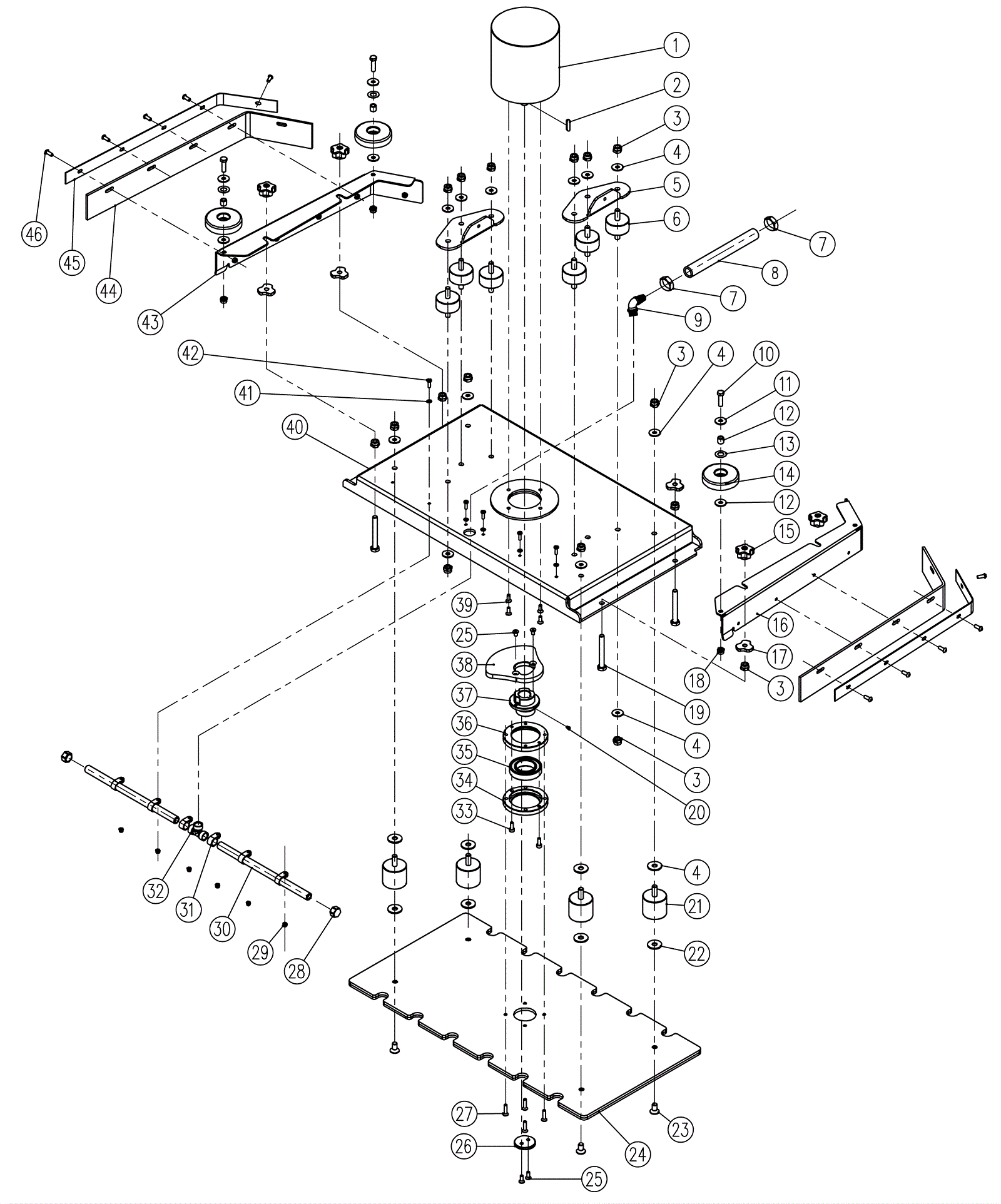

Scrub Head Assembly

#PartDescription ReqNotesAvailability
1 278-0617 24V 560W 2200RPM brush motor 1
2 278-0224 Key 1
3 999-1120 Nut M10-1.5 nylon insert lock stainless steel 20
4 999-6713 Washer M10 x 30mm flat stainless steel 20
5 278-0618 Mounting bracket 2
6 278-0222 Isolator 6
7 278-0244 Clamp 2
8 278-0243 Tubing 1
9 278-0619 Elbow fitting 1
10 999-1653 Screw M8-1.25 x 30mm hex head stainless steel 3
12 278-0033 Spacer 3
13 278-0221 Wave washer 3
14 278-0216 Bumper wheel 3
15 278-0591 Knob 4
16 278-0620 Left hand skirt bracket 1
17 278-0621 Knob 4
18 999-0496 Nut M8-1.25 nylon insert lock stainless steel 4
19 999-6709 Screw M10-1.5 x 80mm hex head stainless steel 4
20 278-0231 Screw M6 x 10mm 1
21 278-0229 Isolator 4
22 278-0622 Washer M10 x 34mm flat 4
23 278-0236 Screw M10 x 20mm 4
24 278-0623 Orbital pad driver 1
25 278-0227 Screw M6 X 16mm 4
26 278-0237 Plate 1
27 999-1310 Screw M10-1.5 x 25mm socket head zinc 4
28 278-0238 End cap 2
29 999-0953 Nut M5-.8 hex nylon insert lock stainless steel 6
30 278-0624 PVC tubing 2
31 278-0240 Plastic clamp 6
32 278-0241 Tee fitting 1
33 278-0138 Screw M6 x 16mm 2
34 278-0234 Bearing housing 1
35 278-0233 Ball bearing 1
36 278-0232 Bearing housing 1
37 278-0230 Eccentric shaft 1
38 278-0228 Eccentric 1
39 278-0227 Screw M6 X 16mm 4
40 278-0625 Motor mounting bracket 1
41 999-9100 Washer M5 flat stainless steel 6
42 278-0104 Screw M5 x 15mm 6
43 278-0626 Right hand skirt bracket 1
44 278-0004 Side skirt blade linatex 2
45 278-0627 Clamp strip 2
