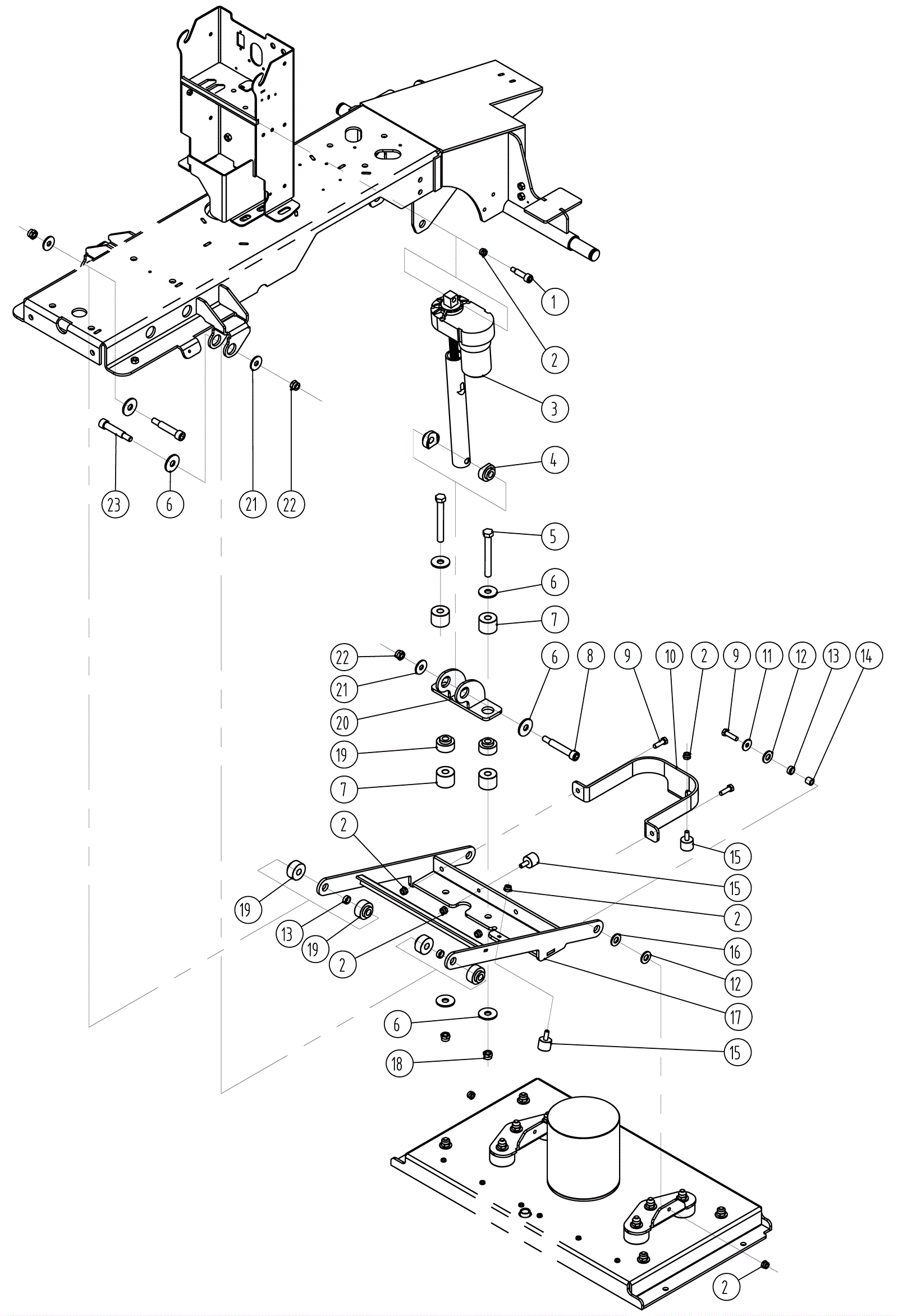

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
278-0606
|
Bolt M8 shoulder |
1 |
|
|
2 |
999-0496
|
Nut M8-1.25 nylon insert lock stainless steel |
8 |
|
|
3 |
278-0588
|
Actuator |
1 |
|
|
4 |
278-0608
|
Rubber damper |
2 |
|
|
5 |
999-6686
|
Screw M12-1.75 x 100mm hex head stainless steel |
2 |
|
|
6 |
278-0119
|
Washer |
7 |
|
|
7 |
278-0610
|
Rubber damper |
4 |
|
|
8 |
278-0611
|
Bolt M10 shoulder |
1 |
|
|
9 |
999-0501
|
Bolt M8-1.25 x 25mm hex head full thread stainless steel |
4 |
|
|
10 |
278-0612
|
Guide bracket |
1 |
|
|
12 |
278-0174
|
Nylon spacer |
4 |
|
|
13 |
278-0613
|
Journal bearing stainless steel |
4 |
|
|
14 |
278-0614
|
Sleeve stainless steel |
2 |
|
|
15 |
278-0275
|
Bumper |
3 |
|
|
16 |
278-0221
|
Wave washer |
2 |
|
|
17 |
278-0615
|
Orbital head lifting bracket |
1 |
|
|
18 |
999-0519
|
Nut M12-1.75 nylon insert lock stainless steel |
2 |
|
|
19 |
278-0616
|
Damper |
6 |
|
|
20 |
278-0607
|
Actuator bracket |
1 |
|
|
21 |
999-6713
|
Washer M10 x 30mm flat stainless steel |
3 |
|
|
22 |
999-1120
|
Nut M10-1.5 nylon insert lock stainless steel |
3 |
|
|
23 |
278-0609
|
Bolt M10 shoulder |
2 |
|
|
