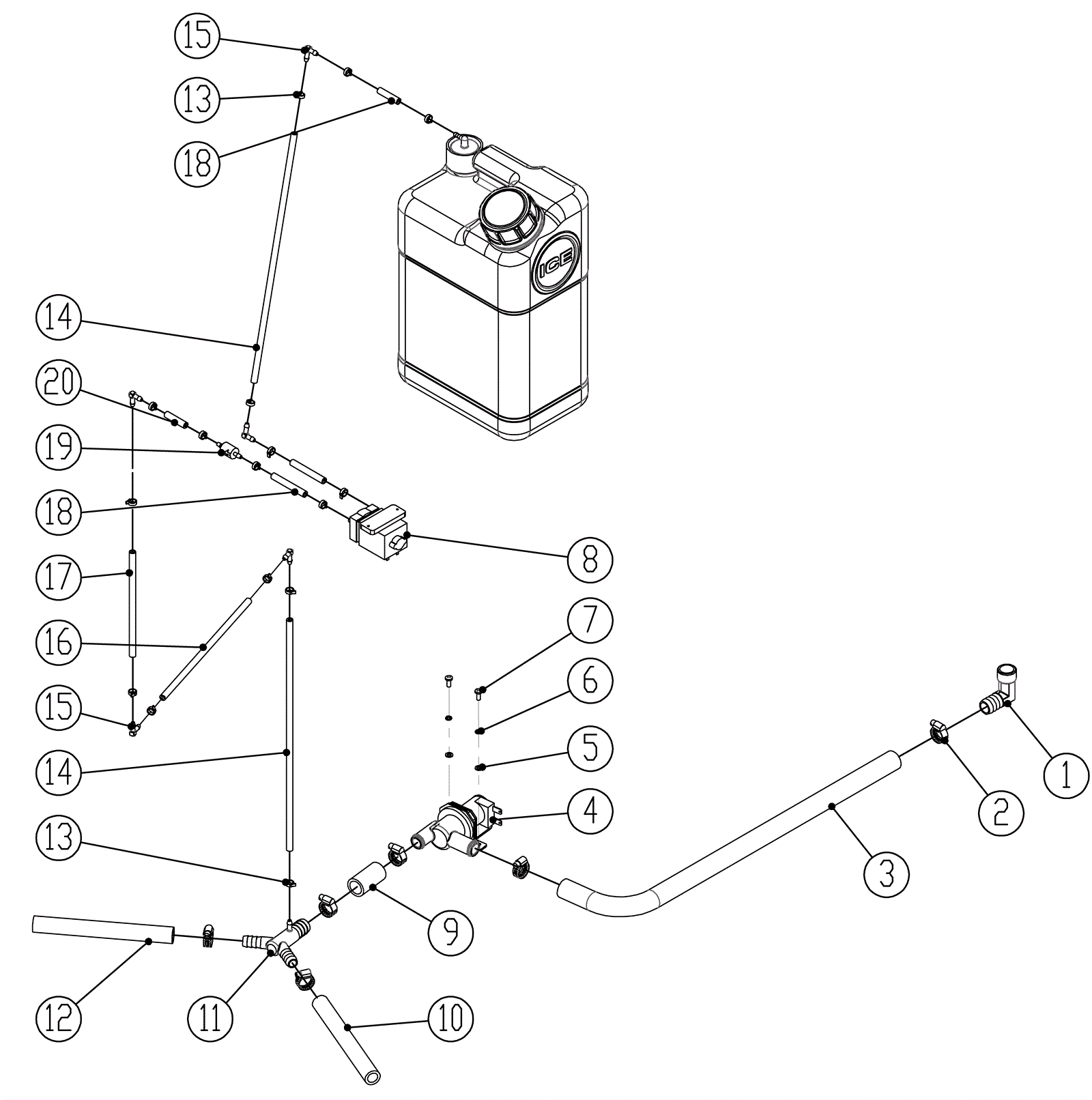

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
278-0346
|
Elbow |
1 |
|
|
2 |
278-0066
|
Clamp |
6 |
|
|
3 |
278-0510
|
Tube |
1 |
|
|
4 |
278-0511
|
24V solenoid valve |
1 |
|
|
5 |
999-9100
|
Washer M5 flat stainless steel |
2 |
|
|
6 |
999-9132
|
Washer M5 split lock stainless steel |
2 |
|
|
7 |
999-9109
|
Screw M5-.8 x 12mm pan head phillips stainless steel |
2 |
|
|
8 |
278-0430
|
Pump |
1 |
|
|
9 |
278-0512
|
1 1/2 inch tube |
1 |
|
|
10 |
278-0513
|
7 inch tube |
1 |
|
|
11 |
278-0520
|
Plastic fitting |
1 |
|
|
12 |
278-0514
|
8 1/2 inch tube |
1 |
|
|
13 |
278-0521
|
Tie |
16 |
|
|
14 |
278-0515
|
13 inch tube |
2 |
|
|
15 |
278-0432
|
Fitting |
5 |
|
|
16 |
278-0516
|
16 1/2 inch tube |
1 |
|
|
17 |
278-0517
|
5 1/2 inch tube |
1 |
|
|
18 |
278-0518
|
2 inch tube |
2 |
|
|
19 |
278-0431
|
One way valve |
1 |
|
|
20 |
278-0519
|
1 1/2 inch tube |
2 |
|
|
