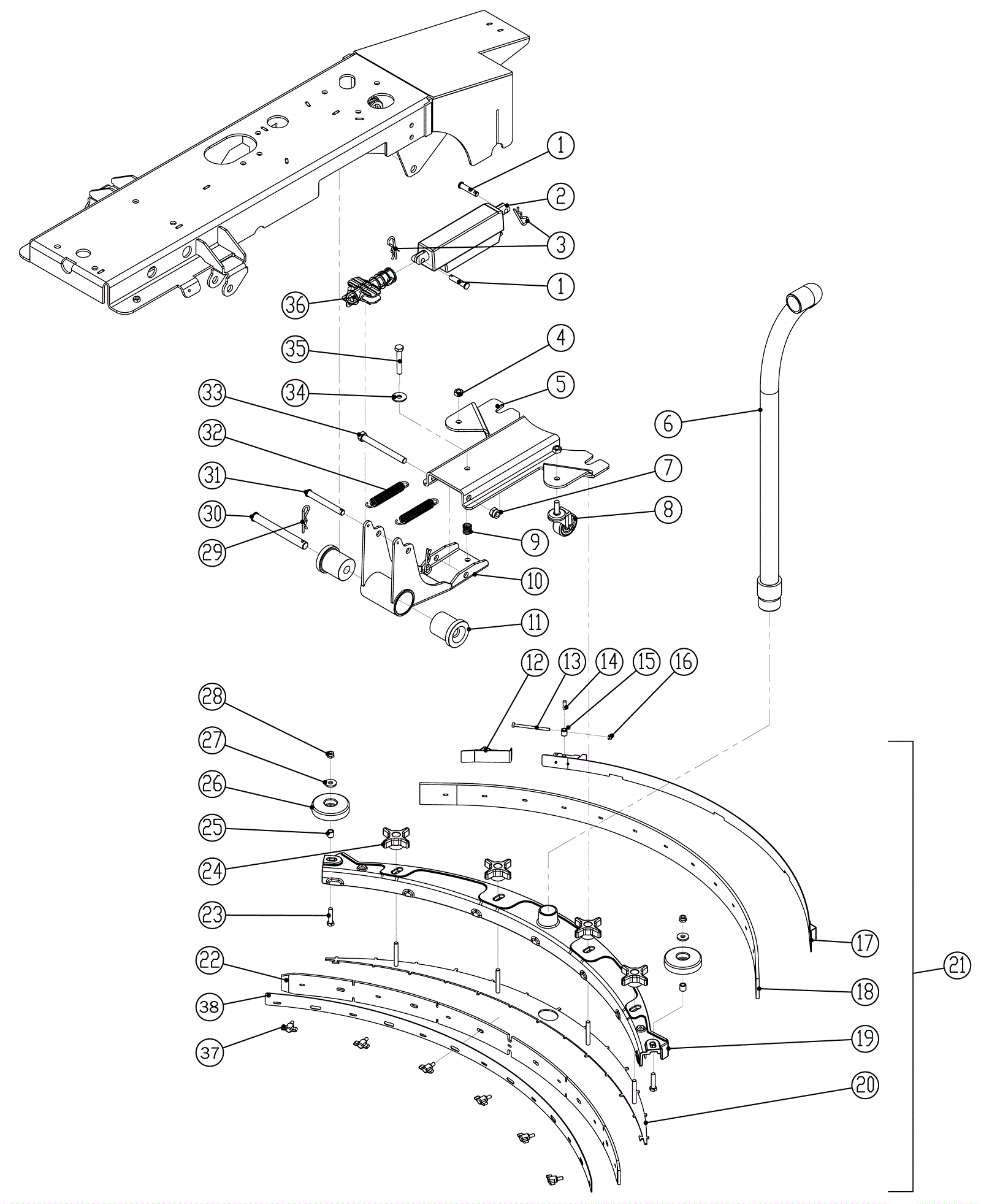

RS28-OB Squeegee Assembly

#PartDescriptionPriceReqNotesAvailability
1 278-0488 Pin Call for price 2 usually ships 7-9 days
2a 278-0489 Linear actuator assembly Call for price 1 (old style) usually ships 7-9 days
2b 278-0538 Linear actuator kit Call for price 1 (new style) usually ships 7-9 days
3 278-0587 Cotter pin Call for price 2 usually ships 7-9 days
4 999-6697 Nut M10-1.5 hex stainless steel Call for price 2 usually ships 11-14 days
5 278-0490 Squeegee bracket Call for price 1 usually ships 7-9 days
6a 278-0491 Vacuum hose Call for price 1 usually ships 7-9 days
6b 994-0123 Hose 1 1/2 inch x 54 1/8 inch (black) Call for price 1 usually ships 30-32 days
7 999-0519 Nut M12-1.75 nylon insert lock stainless steel Call for price 1 usually ships 8-11 days
8a 278-0288 2 inch caster wheel Call for price 2 (old style) usually ships 7-9 days
8b 278-0557 2 inch caster wheel Call for price 2 (new style) usually ships 7-9 days
9 278-0492 Compression spring Call for price 1 usually ships 7-9 days
10 278-0493 Squeegee lifting arm Call for price 1 usually ships 7-9 days
11 278-0494 Flex bushing Call for price 2 usually ships 7-9 days
12 278-0495 Short clamp assembly Call for price 1 usually ships 7-9 days
13 999-9160 Screw M5-.8 x 75mm pan head Call for price 1 usually ships 7-9 days
14 278-0297 Bushing Call for price 1 usually ships 7-9 days
15 278-0298 Bushing Call for price 1 usually ships 7-9 days
16 999-0953 Nut M5-.8 hex nylon insert lock stainless steel Call for price 1 usually ships 11-14 days
17a 278-0496 Clamp assembly Call for price 1 (RS26) usually ships 7-9 days
17b 278-0497 Clamp assembly Call for price 1 (RS28-ORB and RS32) usually ships 7-9 days
18a 278-0498 Squeegee blade 37 3/4 inch linatex rear Call for price 1 (RS26) (OEM) usually ships 7-9 days
18b 991-7140 Squeegee blade 26 inch gum rubber rear (red) Call for price 1 (RS26) (NON-OEM) usually ships 13-17 days
18c 278-0592 Squeegee blade 26 inch polyurethane rear Call for price 1 (RS26) (optional) usually ships 7-9 days
18d 278-0002 Squeegee blade 32 inch linatex rear Call for price 1 (RS28-ORB and RS32) (OEM) usually ships 7-9 days
18e 991-8574 Squeegee blade 32 inch gum rubber rear Call for price 1 (RS28-ORB and RS32) (NON-OEM) usually ships 13-17 days
18f 278-0593 Squeegee blade 32 inch polyurethane rear Call for price 1 (RS28-ORB and RS32) (optional) usually ships 7-9 days
19b 278-0500 32 inch squeegee housing (old style) (OBSOLETE use 278-0595) Call for price 1 (RS32) usually ships 7-9 days
19c 278-0594 26 inch squeegee housing (new style) Call for price 1 (RS26) usually ships 7-9 days
19d 278-0595 32 inch squeegee housing (new style) Call for price 1 (RS28-ORB and RS32) usually ships 7-9 days
20a 278-0501 26 inch squeegee retainer (old style) Call for price 1 (RS26) usually ships 7-9 days
20b 278-0502 32 inch squeegee retainer (old style) Call for price 1 (RS32) usually ships 7-9 days
20c 278-0596 26 inch squeegee retainer (new style) Call for price 1 (RS26) usually ships 7-9 days
20d 278-0597 32 inch squeegee retainer (new style) Call for price 1 (RS28-ORB and RS32) usually ships 7-9 days
21a 278-0598 26 inch squeegee assembly Call for price 1 (RS26) (new style) (includes 12-20 and 22-28, not 37 or 38) usually ships 7-9 days
21b 278-0599 32 inch squeegee assembly Call for price 1 (RS28-ORB and RS32) (new style) (includes 12-20 and 22-28, not 37 or 38) usually ships 7-9 days
22a 278-0505 Squeegee blade 26 inch linatex front (old style) Call for price 1 (RS26) (OEM) usually ships 7-9 days
22b 991-7139 Squeegee blade 26 inch gum rubber front (red) Call for price 1 (RS26) (NON-OEM) usually ships 13-17 days
22c 278-0529 Squeegee blade 26 inch linatex front (new style) Call for price 1 (RS26) usually ships 7-9 days
22d 278-0601 Squeegee blade 26 inch polyurethane front (new style) Call for price 1 (RS26) (optional) usually ships 7-9 days
22e 278-0003 Squeegee blade 32 inch linatex front (old style) Call for price 1 (RS32) (OEM) usually ships 7-9 days
22f 991-8573 Squeegee blade 32 inch gum rubber front Call for price 1 (RS32) (NON-OEM) usually ships 13-17 days
22g 278-0600 Squeegee blade 32 inch linatex front (new style) Call for price 1 (RS28-ORB and RS32) usually ships 7-9 days
23 999-0786 Screw M8-1.25 x 35mm hex head stainless steel Call for price 2 usually ships 11-14 days
24 278-0426 Knob Call for price 4 usually ships 7-9 days
25 278-0033 Spacer Call for price 2 usually ships 7-9 days
26 278-0216 Bumper wheel Call for price 2 usually ships 7-9 days
28 999-0496 Nut M8-1.25 nylon insert lock stainless steel Call for price 2 usually ships 11-14 days
29 278-0451 Cotter pin Call for price 2 usually ships 7-9 days
30 278-0449 Pin Call for price 1 usually ships 7-9 days
31 278-0506 Pin Call for price 1 usually ships 7-9 days
32 278-0507 Extension spring Call for price 2 usually ships 7-9 days
33 999-9161 Bolt M12-1.25 x 120mm hex head Call for price 1 usually ships 11-14 days
34 999-6713 Washer M10 x 30mm flat stainless steel Call for price 1 usually ships 11-14 days
35 999-1429 Bolt M10-1.5 x 60mm hex head stainless steel Call for price 1 usually ships 11-14 days
36 278-0509 Adapter Call for price 1 usually ships 7-9 days
37 278-0468 Knob Call for price 6 (RS26 and RS32) (old style) usually ships 7-9 days
38a 278-0503 Front clamp Call for price 1 (RS26) (old style) usually ships 7-9 days
38b 278-0504 Front clamp Call for price 1 (RS32) (old style) usually ships 7-9 days
