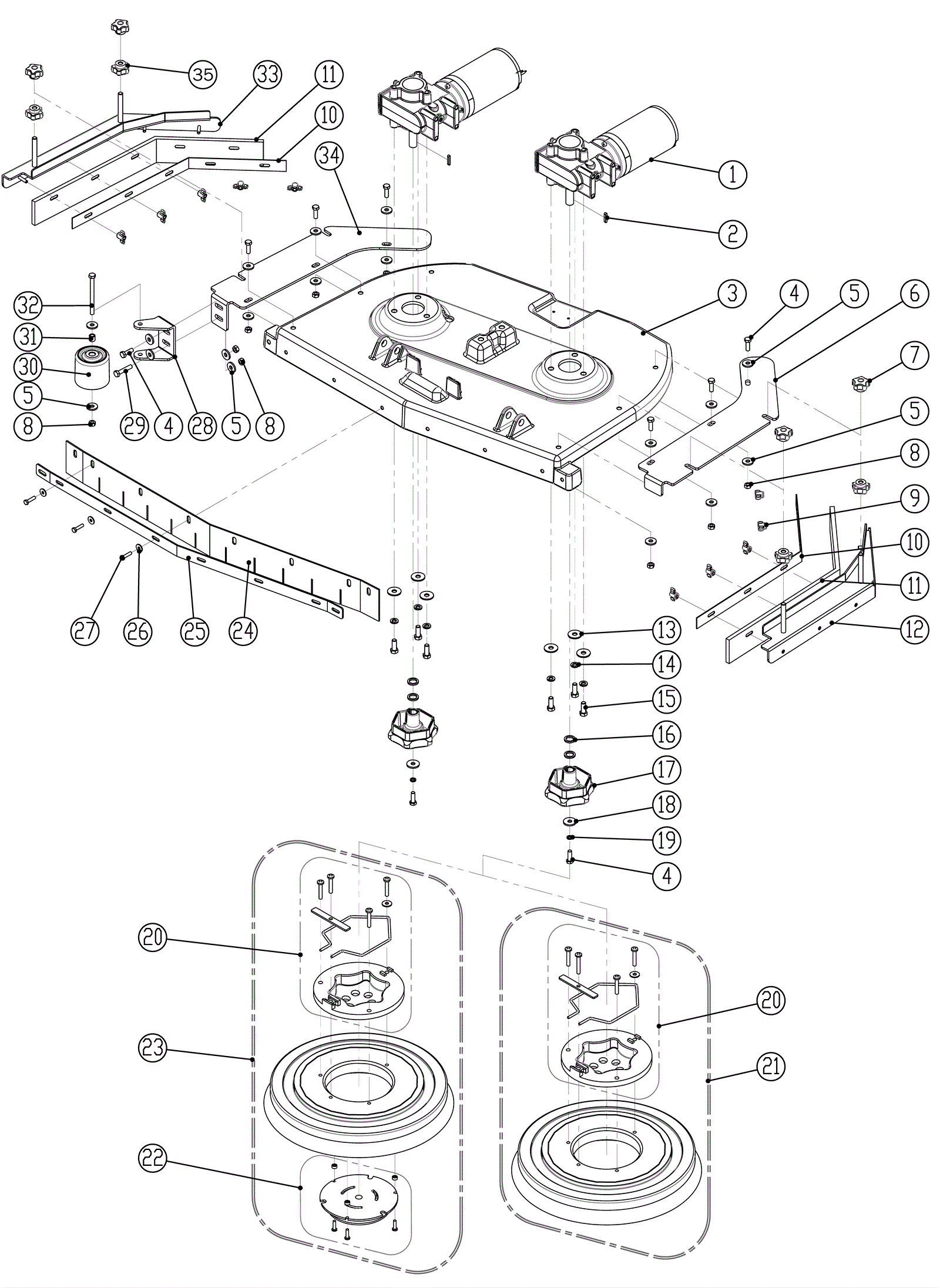

| # | Part | Description |
Req | Notes | Availability |
|---|
1a |
278-0589
|
24V 450W brush motor |
2 |
|
|
1b |
278-0590
|
Carbon brush (sold individually) (OBSOLETE) |
4 |
|
|
2 |
278-0249
|
Square keyway |
2 |
|
|
1c |
991-1316
|
24V 450W brush motor |
2 |
(NON-OEM) |
|
3a |
278-0464
|
26 inch scrub head housing |
1 |
|
|
3b |
278-0465
|
32 inch scrub head housing |
1 |
|
|
4 |
999-0248
|
Bolt M8-1.25 x 30mm hex head full thread plain finish |
9 |
|
|
6 |
278-0466
|
Left hand bracket |
1 |
|
|
7 |
278-0467
|
Knob |
4 |
|
|
8 |
999-0496
|
Nut M8-1.25 nylon insert lock stainless steel |
9 |
|
|
9 |
278-0468
|
Knob |
10 |
|
|
10 |
278-0469
|
Side skirt clamp |
2 |
|
|
11a |
278-0004
|
Side skirt blade linatex |
4 |
|
|
11b |
278-0551
|
Side skirt blade polyurethane |
4 |
|
|
12 |
278-0470
|
Left hand side skirt bracket |
1 |
|
|
13 |
999-9099
|
Washer M10 flat stainless steel |
6 |
|
|
14 |
999-1482
|
Nut 3/8-16 nylon lock stainless steel |
6 |
|
|
15 |
999-0562
|
Bolt 3/8-16 x 1 hex head stainless steel |
6 |
|
|
16 |
278-0472
|
Spacer |
4 |
|
|
17 |
278-0473
|
Brush drive hub |
2 |
|
|
18 |
999-6695
|
Washer M8 fender stainless steel |
2 |
|
|
19 |
999-0674
|
Washer M8 split lock plain finish |
2 |
|
|
20a |
278-0474
|
Clutch plate |
2 |
(OEM) |
|
20b |
996-0077
|
Clutch plate |
2 |
(NON-OEM) |
|
21a |
996-1596
|
12 inch heavy grit stripping brush - 80 grit |
2 |
(RS26) (NON-OEM) (includes 20) |
|
21b |
996-1513
|
12 inch medium grit scrubbing brush - 180 grit |
2 |
(RS26) (NON-OEM) (includes 20) |
|
21c |
996-1598
|
12 inch lite grit scrubbing brush - 500 grit |
2 |
(RS26) (NON-OEM) (includes 20) |
|
21d |
996-1599
|
12 inch polypropelene scrubbing brush |
2 |
(RS26) (NON-OEM) (includes 20) |
|
21e |
278-0475
|
13 inch polypropylene brush |
2 |
(RS26) (OEM) (includes 20) |
|
21f |
278-0630
|
13 inch soft white brush |
2 |
(RS26) (OEM) (includes 20) |
|
21g |
996-6145
|
15 inch heavy grit stripping brush - 80 grit |
2 |
(RS32) (NON-OEM) (includes 20) |
|
21h |
996-2079
|
15 inch medium grit scrubbing brush - 180 grit |
2 |
(RS32) (NON-OEM) (includes 20) |
|
21i |
996-6146
|
16 inch lite grit scrubbing brush - 500 grit |
2 |
(RS32) (NON-OEM) (includes 20) |
|
21j |
996-8127
|
15 inch polypropylene scrubbing brush |
2 |
(RS32) (NON-OEM) (includes 20) |
|
21k |
278-0476
|
16 inch brush |
2 |
(RS26) (OEM) (includes 20) |
|
21l |
278-0631
|
16 inch soft white brush |
2 |
(RS26) (OEM) (includes 20) |
|
22a |
278-0202
|
Center lok |
2 |
(OEM) |
|
22b |
991-2201
|
Center-Lok II pad holder - right hand thread (black) |
2 |
(NON-OEM) |
|
23a |
278-0477
|
13 inch pad driver |
2 |
(RS26) (OEM) (includes 20 and 22) |
|
23b |
996-1600
|
12 inch pad driver |
2 |
(RS26) (NON-OEM) (includes 20) |
|
23c |
278-0478
|
15 inch pad holder |
2 |
(RS32) (OEM) (includes 20 and 22) |
|
23d |
996-6140
|
15 inch pad driver |
2 |
(RS32) (NON-OEM) (includes 20) |
|
24a |
278-0479
|
26 inch skirt |
1 |
(RS26) |
|
24b |
278-0480
|
32 inch skirt |
1 |
(RS32) |
|
25a |
278-0481
|
Skirt clamp |
1 |
(RS26) |
|
25b |
278-0482
|
Skirt clamp |
1 |
(RS32) |
|
26 |
999-1803
|
Washer M6 flat fender stainless steel |
7 |
|
|
27 |
999-0507
|
Bolt M6-1 x 16mm hex head full thread plain finish |
7 |
|
|
28 |
278-0483
|
Protective wheel bracket |
1 |
|
|
29 |
999-0787
|
Bolt M8-1.25 x 40mm hex head full thread stainless steel |
1 |
|
|
30 |
278-0484
|
Protective wheel |
1 |
|
|
31 |
278-0033
|
Spacer |
6 |
|
|
32 |
999-9159
|
Bolt M8-1.0 x 100mm hex cap |
1 |
|
|
33 |
278-0486
|
Right hand side skirt bracket |
1 |
|
|
34 |
278-0487
|
Right hand bracket |
1 |
|
|
35 |
278-0591
|
Knob |
4 |
|
|
