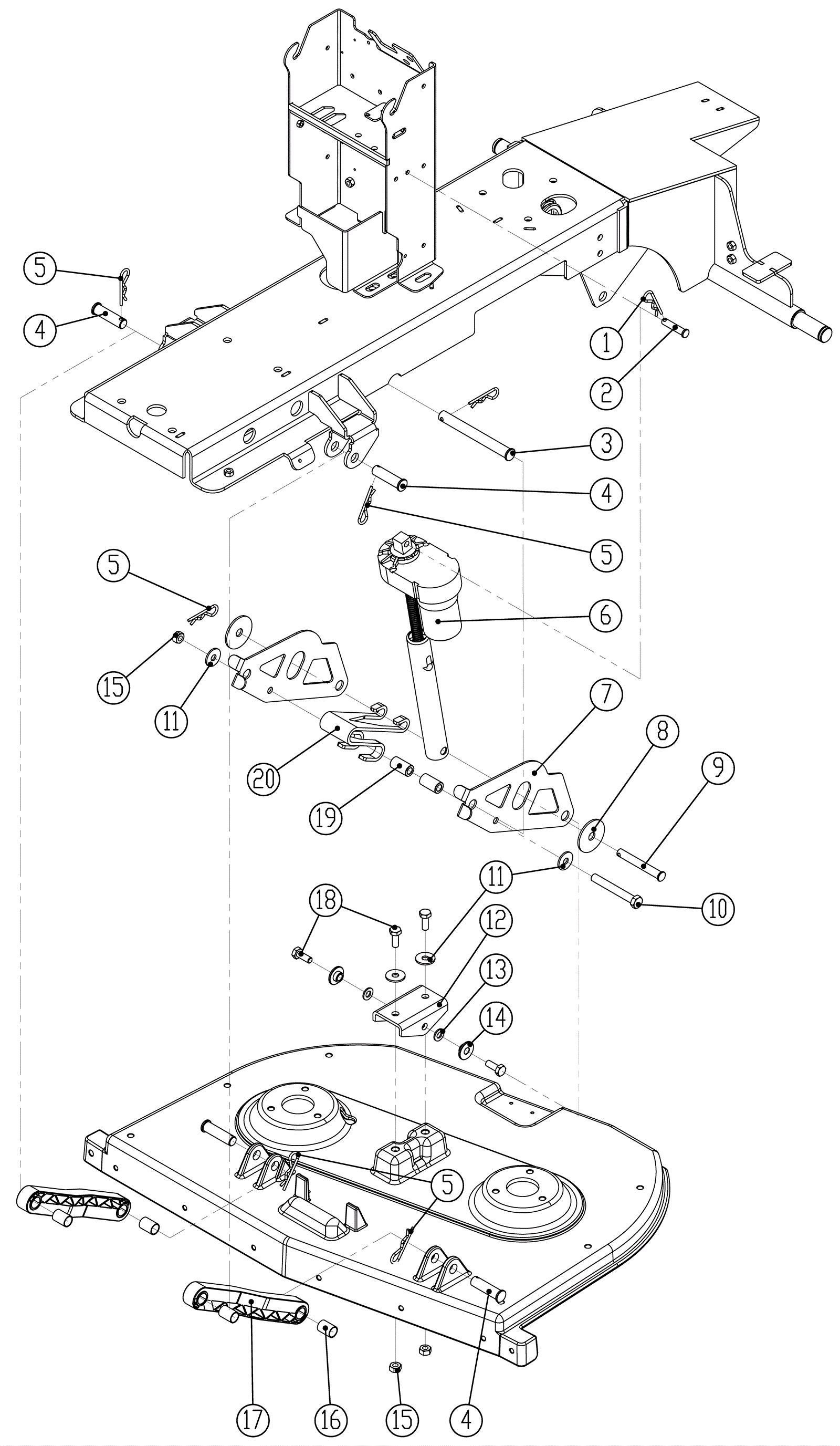

RS32 Scrub Head Lifting Assembly

#PartDescriptionPriceReqNotesAvailability
1 278-0587 Cotter pin $3.17 1 ships same day
2 278-0448 Pin $6.36 1 usually ships 5-12 days
3 278-0449 Pin $28.60 1 usually ships 5-12 days
4 278-0450 Pin $6.36 4 ships same day
5 278-0451 Cotter pin $3.17 6 usually ships 5-12 days
6a 278-0588 Actuator $644.91 1 (old style) usually ships 5-12 days
6b 278-0588 Actuator $644.91 1 (new style) usually ships 5-12 days
7 278-0453 Scrub head lifting arm plate $21.34 2 usually ships 5-12 days
8 278-0454 Washer $3.17 2 usually ships 5-12 days
9 278-0455 Pin $12.39 1 usually ships 5-12 days
10 999-1408 Screw M10-1.5 x 90mm hex head stainless steel $4.29 1 ships same day
11 999-6713 Washer M10 x 30mm flat stainless steel $0.99 4 ships same day
12 278-0457 Scrub head lifting bracket $21.98 1 usually ships 5-12 days
13 999-9099 Washer M10 flat stainless steel $0.99 2 ships same day
14 278-0459 Flange bushing $6.36 2 usually ships 5-12 days
15 999-1120 Nut M10-1.5 nylon insert lock stainless steel $3.92 3 ships same day
16 278-0008 Sleeve $5.29 4 ships same day
17 278-0460 Scrub head lifting arm $11.09 2 ships same day
18 999-1372 Bolt M10-1.5 x 25mm hex head stainless steel $3.56 4 ships same day
19 278-0461 Sleeve $6.36 2 usually ships 5-12 days
20 278-0462 Spring $28.24 1 usually ships 5-12 days
