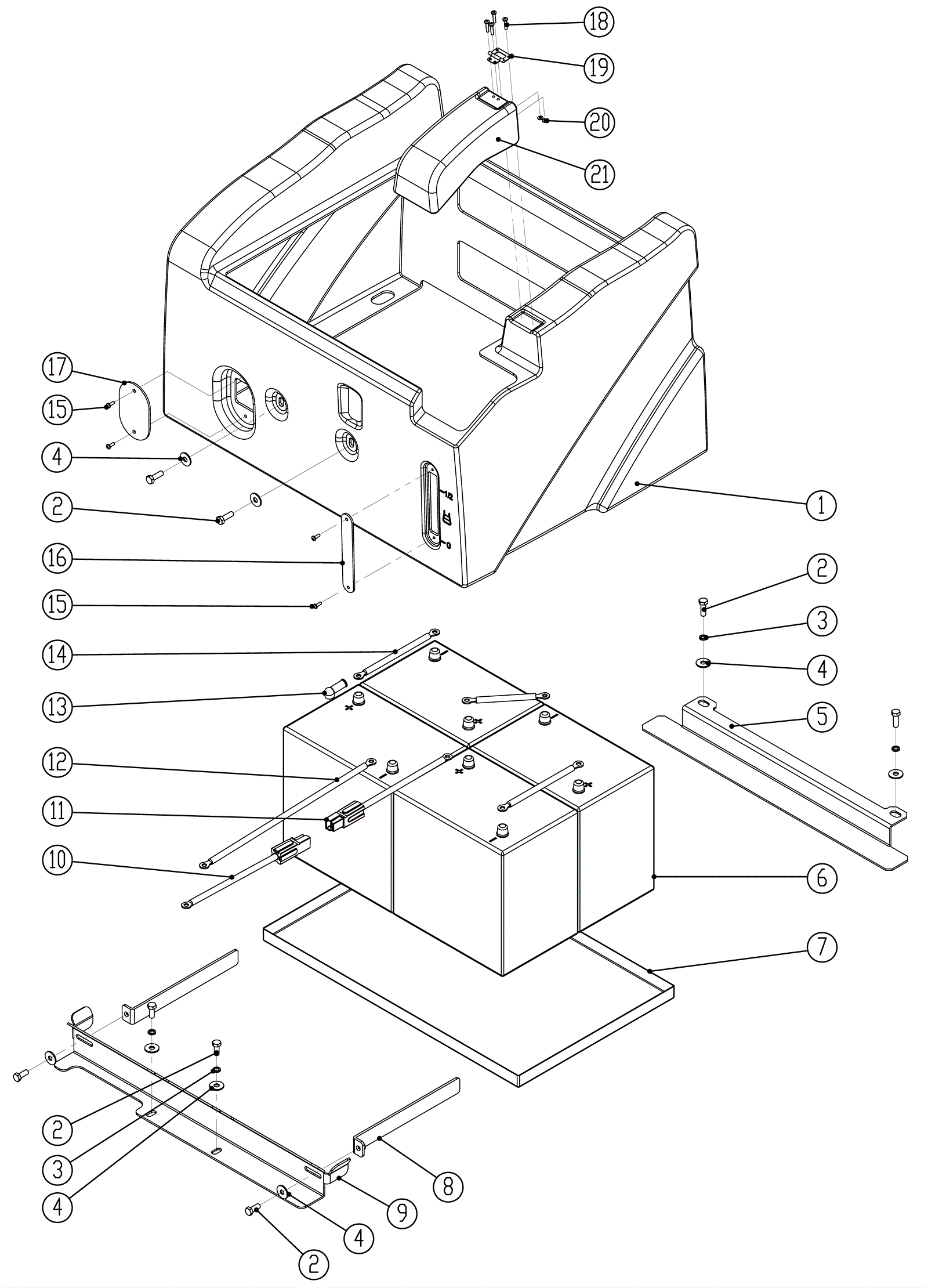

| # | Part | Description | Price | Req | Notes | Availability |
|---|
1 |
278-0433
|
Battery box |
$214.81
|
1 |
|
ships same day |
2 |
999-1133
|
Bolt M8-1.25 x 20mm hex head full thread plain |
$0.99
|
8 |
|
ships same day |
3 |
999-0674
|
Washer M8 split lock plain finish |
$0.99
|
4 |
|
ships same day |
5 |
278-0434
|
Rear battery support |
$42.97
|
1 |
|
usually ships 9-14 days |
6a |
162-0003
|
6V 225Ah wet battery (SNSR) |
$269.50
|
4 |
|
ships same day |
6b |
162-0043
|
6V 224Ah AGM battery (Group GC2) |
$456.50
|
4 |
|
usually ships 13-17 days |
6c |
162-5060
|
24V 20amp battery charger with small SB50 red plug |
$451.44
|
1 |
|
ships same day |
6d |
162-5070
|
24V 20amp AGM battery charger with small SB50 red plug |
$429.37
|
1 |
|
usually ships 7-12 days |
6e |
278-1459
|
240AH lithium ion battery |
$9,002.40
|
1 |
(RS32L) |
usually ships 9-14 days |
7 |
278-0436
|
Battery tray |
$18.41
|
1 |
|
ships same day |
8 |
278-0437
|
Plate |
$18.41
|
2 |
|
ships same day |
9 |
278-0438
|
Front battery support |
$46.02
|
1 |
|
ships same day |
10 |
278-0554
|
6AWG battery connection cable (red) |
$55.26
|
1 |
|
ships same day |
11 |
278-0555
|
6AWG battery connection cable (red) |
$55.26
|
1 |
|
ships same day |
12 |
278-0441
|
6AWG battery connection cable (black) |
$24.55
|
1 |
|
ships same day |
13 |
278-0556
|
Battery boot |
$7.30
|
8 |
|
usually ships 9-14 days |
14 |
278-0442
|
6AWG jumper cable (black) |
$10.25
|
3 |
|
ships same day |
15 |
999-1645
|
Screw M4-.7 x 12mm hex head stainless steel |
$1.29
|
4 |
|
ships same day |
16 |
278-0447
|
Cover |
$28.31
|
1 |
|
ships same day |
17 |
278-0444
|
Cover |
$7.30
|
1 |
|
ships same day |
18 |
278-0445
|
Rivet |
$3.65
|
4 |
|
ships same day |
19 |
278-0446
|
Hinge assembly |
$9.46
|
1 |
|
ships same day |
20 |
999-9089
|
Washer M4 flat stainless steel |
$0.99
|
4 |
|
ships same day |
21 |
278-0447
|
Cover |
$28.31
|
1 |
|
ships same day |
