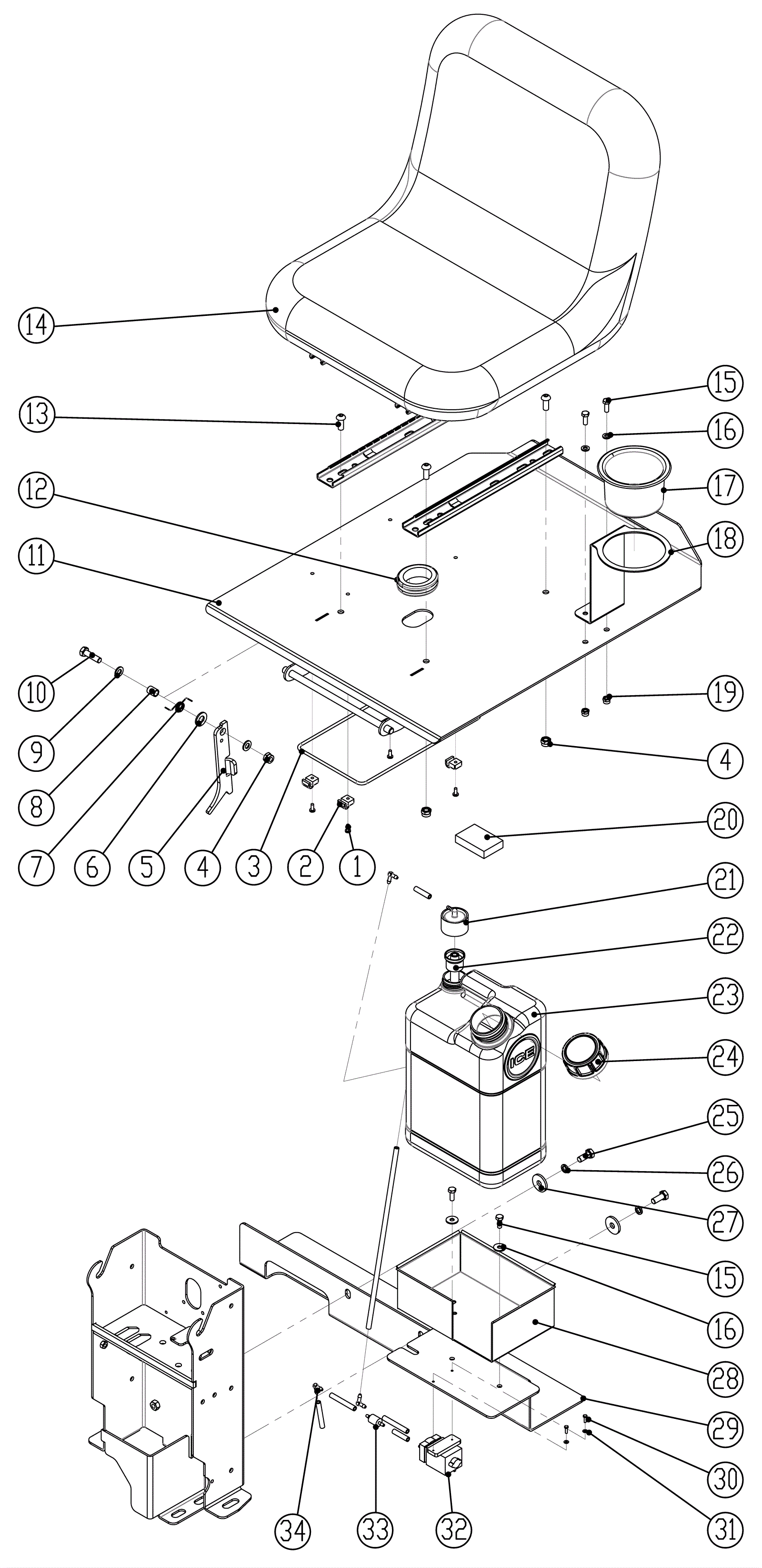

RS28-OB Seat and Detergent Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-1645 Screw M4-.7 x 12mm hex head stainless steel $1.29 4 ships same day
2 278-0064 Clamp $3.17 4 ships same day
3 278-0063 Cargo net $16.02 1 usually ships 5-12 days
4 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 5 usually ships 11-24 days
5 278-0414 Seat support $16.02 1 usually ships 5-12 days
6 278-0174 Nylon spacer $3.17 1 usually ships 5-12 days
7 278-0415 Torsion spring $3.17 1 usually ships 5-12 days
8 278-0416 Sleeve $3.17 1 usually ships 5-12 days
9 999-9097 Washer M8 flat stainless steel $0.99 2 ships same day
10 999-0248 Bolt M8-1.25 x 30mm hex head full thread plain finish $0.99 1 ships same day
11 278-0417 Seat mounting plate $117.39 1 usually ships 5-12 days
12 278-0327 Rubber grommet $6.36 1 usually ships 5-12 days
13 999-9092 Screw M8-1.25 x 20mm hex head stainless steel $2.79 4 ships same day
14 278-0418 Seat $470.10 1 ships same day
15 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish $0.99 4 ships same day
16 999-1803 Washer M6 flat fender stainless steel $0.99 4 ships same day
17 278-0419 Cup holder $11.44 1 ships same day
18 278-0420 Cup holder bracket $16.02 1 usually ships 5-12 days
19 999-0497 Nut M6-1 nylon insert lock stainless steel $1.03 2 ships same day
20 278-0421 Spacer $6.36 1 usually ships 5-12 days
21 278-0422 Blue safety cap (key adapter) $44.86 1 ships same day
22 278-0423 Insert lock $17.78 1 ships same day
23 278-0424 Detergent bottle $26.69 1 usually ships 5-12 days
24 278-0425 Bottle cap $26.69 1 ships same day
25 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain $0.99 2 ships same day
26 999-0674 Washer M8 split lock plain finish $0.99 2 ships same day
27 999-6695 Washer M8 fender stainless steel $0.99 5 ships same day
28 278-0427 Detergent bottle box $40.02 1 usually ships 5-12 days
29 278-0428 Bracket $89.34 1 usually ships 5-12 days
30 999-6716 Screw M3-.5 x 12mm hex head stainless steel $0.99 2 usually ships 11-24 days
31 999-1521 Washer M3 flat stainless steel $0.99 2 ships same day
32 278-0430 Pump $333.50 1 usually ships 5-12 days
33 278-0431 One way valve $16.02 1 ships same day
34 278-0432 Fitting $3.17 5 usually ships 5-12 days
