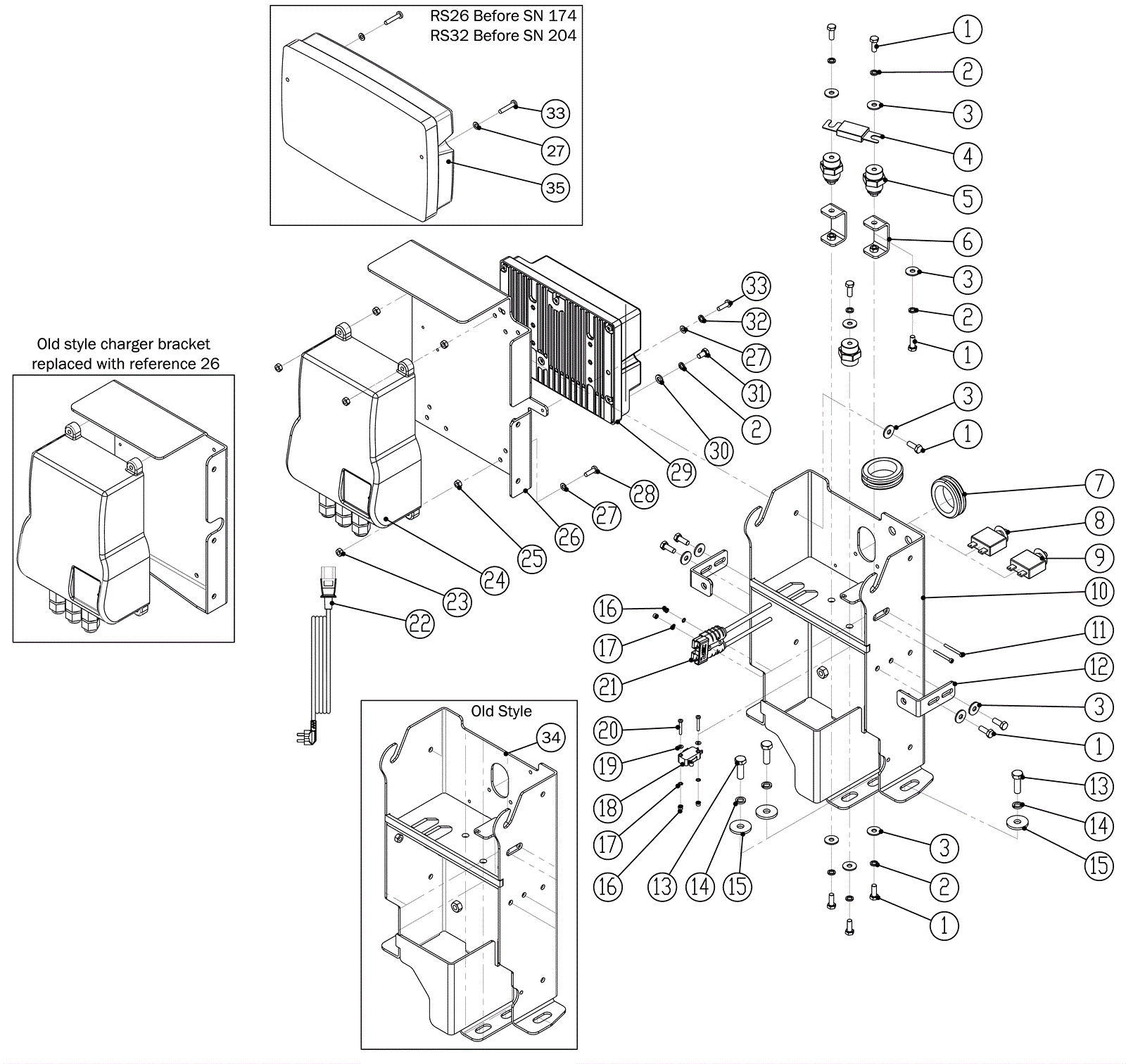

RS28-OB Main Controller Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish $0.99 12 ships same day
2 999-1117 Washer M6 split lock stainless steel $0.99 18 ships same day
3 999-1803 Washer M6 flat fender stainless steel $0.99 15 ships same day
4 278-0404 150amp fuse $7.74 1 ships same day
5 278-0405 Insulator $3.17 3 ships same day
6 278-0406 Insulator bracket $7.50 2 usually ships 5-12 days
7 278-0327 Rubber grommet $6.36 2 usually ships 5-12 days
8 278-0101 5amp circuit breaker $16.02 1 ships same day
9 278-0581 10amp circuit breaker $16.02 1 usually ships 5-12 days
10 278-0582 Weldment $251.57 1 (new style) ships same day
11 999-1520 Screw M3-.5 x 30mm pan head phillips zinc plated $0.99 2 ships same day
12 278-0409 Bracket $8.10 2 usually ships 5-12 days
13 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel $2.64 5 ships same day
14 999-0674 Washer M8 split lock plain finish $0.99 5 ships same day
15 999-6695 Washer M8 fender stainless steel $0.99 5 ships same day
16 999-1161 Nut M3-.5 hex nylock stainless steel $0.99 4 ships same day
17 278-0089 Washer M3 tooth $3.17 4 ships same day
18 278-0410 Micro switch $6.36 1 ships same day
19 999-1521 Washer M3 flat stainless steel $0.99 2 ships same day
20 999-1040 Screw M3-.5 x 20mm pan head $0.99 2 ships same day
21a 278-0411 Charger plug $11.44 1 (old style) (OEM) ships same day
21b 278-0528 Charger plug $21.34 1 (new style) (OEM) ships same day
21c 991-2103 50amp charger plug SB50 with pins (red) $6.17 1 (NON-OEM) usually ships 5-16 days
22 278-0583 Onboard battery charger cord (Old style-charger 8132020-US) $26.69 1 (old style for charger 8132020-US) ships same day
23 999-0953 Nut M5-.8 hex nylon insert lock stainless steel $2.88 4 ships same day
24a 278-0412 24V 25amp onboard battery charger $1,590.18 1 (old style) ships same day
24b 278-0412 24V 25amp onboard battery charger $1,590.18 1 (new style) ships same day
25 999-0740 Nut M5-.8 hex stainless steel $0.99 4 ships same day
26 278-0413 Battery charger bracket $37.36 1 usually ships 5-12 days
27 999-9100 Washer M5 flat stainless steel $5.83 6 (qty 10 for old style) ships same day
28 999-1671 Screw M5-.8 x 20mm pan head phillips stainless steel $0.99 4 ships same day
29a 278-0585 Main controller $1,203.03 1 (RS26 after SN 173) (RS32 after SN 203) usually ships 5-12 days
29b 278-0586 Main controller $787.71 1 (RS28-OB) usually ships 5-12 days
30 278-0127 Washer $3.17 10 usually ships 5-12 days
31 278-0125 Bolt $3.17 10 usually ships 5-12 days
32 999-9132 Washer M5 split lock stainless steel $0.99 2 ships same day
33 999-1425 Screw M5-.8 x 25mm pan head stainless steel $1.01 2 (qty 6 for old style) ships same day
34 278-0408 Weldment $213.44 1 (old style) usually ships 5-12 days
35 278-0407 Main controller $2,497.44 1 (RS26 before SN 174) (RS32 before SN 204) usually ships 5-12 days
