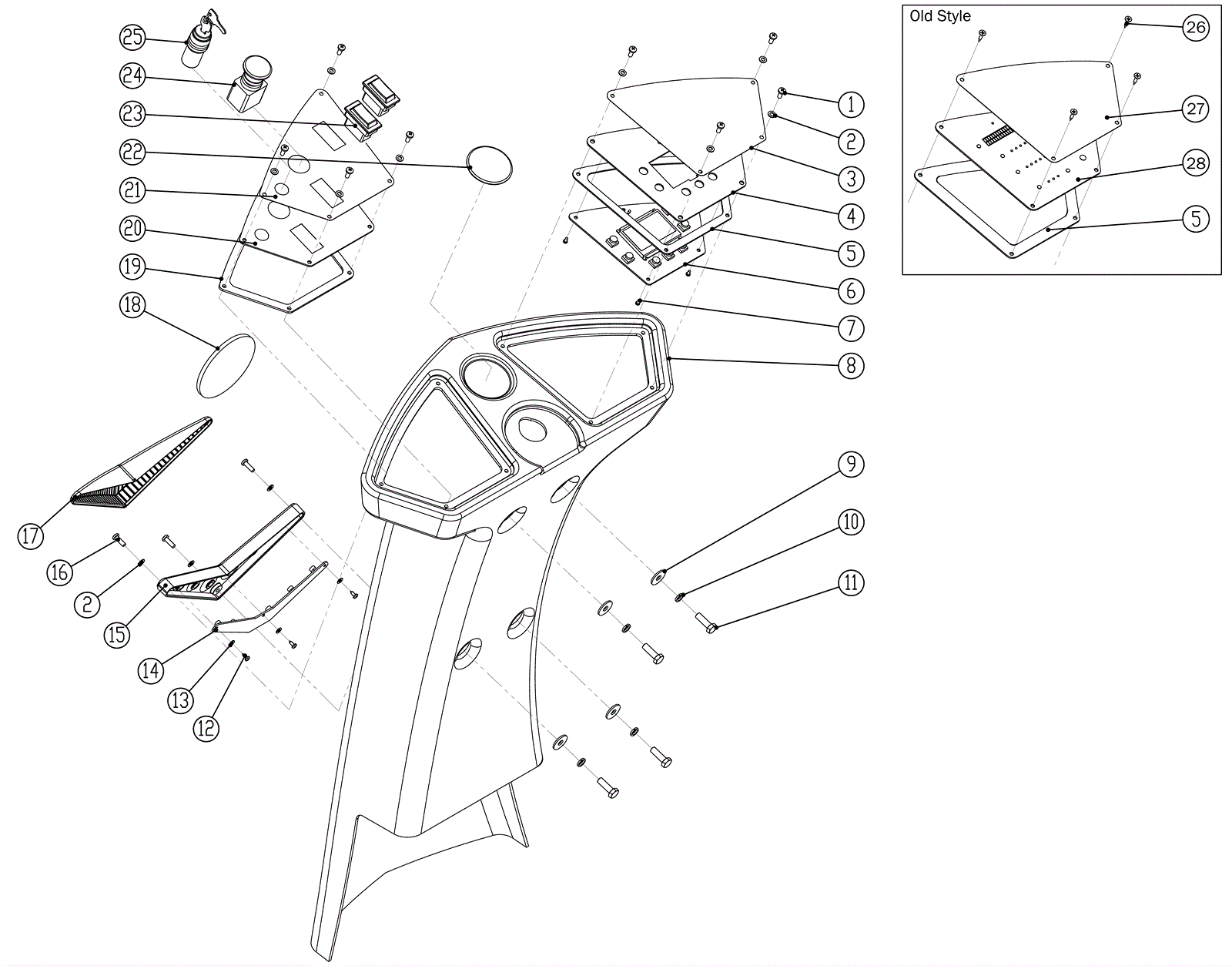

RS28-OB Control Panel Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-9109 Screw M5-.8 x 12mm pan head phillips stainless steel $0.99 8 (new style) ships same day
2 999-9100 Washer M5 flat stainless steel $5.83 11 (old style qty 3) ships same day
3 278-0573 Control panel decal $16.02 1 (new style) usually ships 5-12 days
4 278-0574 Control panel plate $26.69 1 (new style) ships same day
5 278-0394 Control panel gasket $3.17 1 usually ships 5-12 days
6a 278-0576 Power control board $178.93 1 (new style) (AGM) ships same day
6b 278-0576 Power control board $178.93 1 (new style) (wet) ships same day
7 999-6715 Screw M3-.5 x 6mm pan head stainless steel $0.99 5 usually ships 11-24 days
8 278-0395 Control housing $160.09 1 usually ships 5-12 days
10 999-0674 Washer M8 split lock plain finish $0.99 4 ships same day
11 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel $2.64 4 ships same day
12 278-0076 Screw $3.17 3 usually ships 5-12 days
13 999-9089 Washer M4 flat stainless steel $0.99 3 ships same day
14a 278-0396 LED light $40.02 1 (old style) usually ships 5-12 days
14b 278-0078 LED light kit $30.91 (new style) usually ships 5-12 days
15 278-0079 LED light base $28.34 1 usually ships 5-12 days
16 999-1671 Screw M5-.8 x 20mm pan head phillips stainless steel $0.99 3 ships same day
17 278-0081 LED light cover $15.49 1 usually ships 5-12 days
18 278-0029 ICE decal $6.36 1 usually ships 5-12 days
19 278-0397 Switch panel gasket $3.17 1 usually ships 5-12 days
20 278-0398 Switch panel plate $16.02 1 usually ships 5-12 days
21a 278-0399 Switch panel decal $16.02 1 (RS32) usually ships 5-12 days
21b 278-0399 Switch panel decal $16.02 1 (RS28-OB) usually ships 5-12 days
21c 278-0578 Switch panel decal $8.91 1 (RS26) usually ships 5-12 days
22 278-0400 ICE decal $6.36 1 usually ships 5-12 days
23 278-0403 Rocker switch $8.91 2 usually ships 5-12 days
24 278-0402 Emergency stop switch $40.02 1 ships same day
25a 278-0580 Key switch kit $45.74 1 (old style) (includes 25c) ships same day
25b 278-0580 Key switch kit $45.74 1 (new style) (includes 25c) ships same day
25c 278-0632 Key (pkg of 2) $7.43 1 ships same day
26 278-0391 Screw $3.17 8 (old style) usually ships 5-12 days
27 278-0392 Control panel decal $13.34 1 (old style) usually ships 5-12 days
28 278-0393 Control panel $848.93 1 (old style) usually ships 5-12 days
