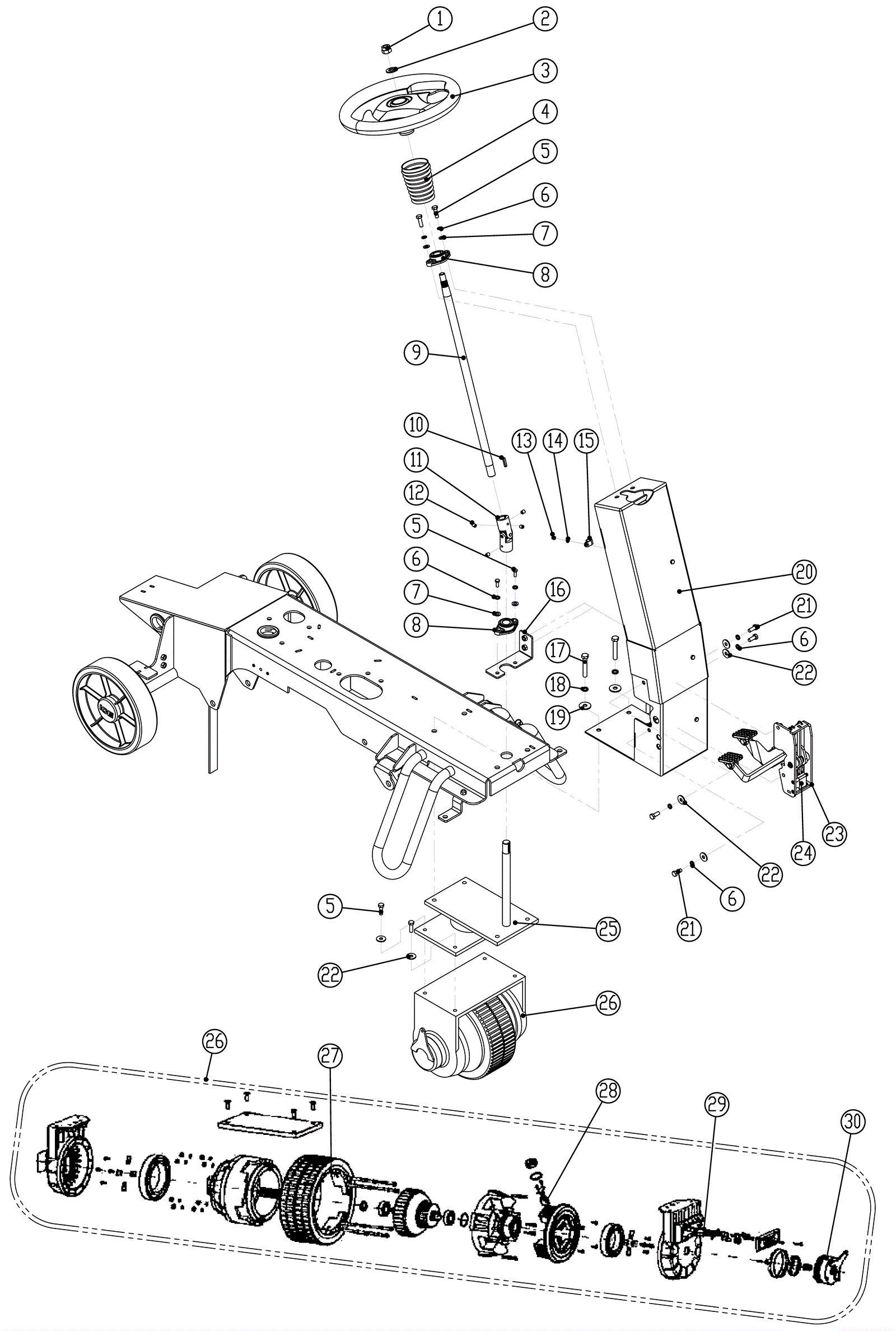

RS28-OB Steering and Drive Wheel Assembly

#PartDescriptionPriceReqNotesAvailability
1 278-0328 Lock nut $3.17 1 ships same day
3a 278-0329 Steering wheel $98.95 1 ships same day
3b 278-0562 Plug kit $38.04 1 usually ships 5-12 days
4 278-0330 Steering shaft bellow $11.44 1 ships same day
5 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel $2.64 8 ships same day
6 999-0674 Washer M8 split lock plain finish $0.99 6 ships same day
7 999-9097 Washer M8 flat stainless steel $0.99 4 ships same day
8 278-0331 Flange bearing $100.43 2 usually ships 5-12 days
9 278-0332 Steering wheel shaft $48.05 1 usually ships 5-12 days
10 278-0249 Square keyway $4.81 2 ships same day
11 278-0334 U joint $106.72 1 ships same day
12 999-6712 Screw M5-.8 x 8mm socket cup point set $1.43 4 ships same day
13 999-0953 Nut M5-.8 hex nylon insert lock stainless steel $2.88 3 ships same day
14 999-9100 Washer M5 flat stainless steel $5.83 3 ships same day
15 278-0323 P clamp $3.17 3 usually ships 5-12 days
16 278-0563 Bracket $18.77 1 usually ships 5-12 days
17 999-1429 Bolt M10-1.5 x 60mm hex head stainless steel $4.50 4 ships same day
18 999-1081 Washer M10 split lock stainless steel $0.99 4 ships same day
19 999-6713 Washer M10 x 30mm flat stainless steel $0.99 4 ships same day
20 278-0335 Steering support bracket $240.13 1 usually ships 5-12 days
21 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain $0.99 4 ships same day
23a 278-0336 Accelerator and brake pedal $1,040.56 1 (old style) usually ships 5-12 days
23b 278-0564 Accelerator and brake pedal $1,013.87 1 (new style) usually ships 5-12 days
24 278-0565 Hall sensor with cable $701.80 1 usually ships 5-12 days
26 278-0338 Drive wheel $4,685.12 1 (includes 37-30) ships same day
27 278-0566 Drive wheel tire $1,004.30 1 ships same day
28 278-0567 Armature brush $59.42 4 usually ships 5-12 days
29 278-0568 Brushes connection box $37.36 2 usually ships 5-12 days
30 278-0569 Electric brake assembly $613.67 1 usually ships 5-12 days
