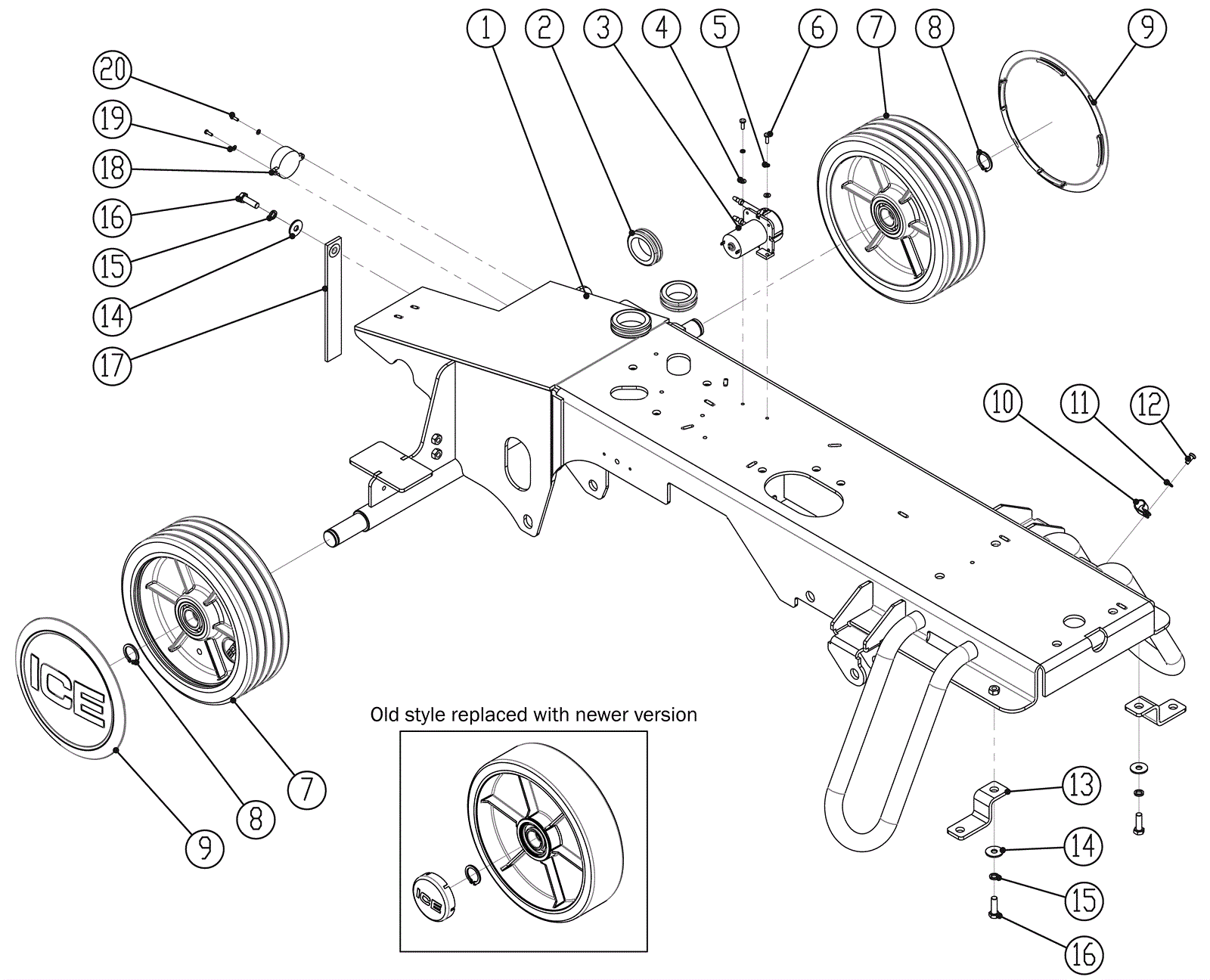

RS28-OB Main Frame Assembly

#PartDescriptionPriceReqNotesAvailability
1 278-0553 Main frame weldment $933.83 1 usually ships 5-12 days
2 278-0327 Rubber grommet $6.36 5 usually ships 5-12 days
3a 278-0558 Detergent pump $225.46 1 (includes 3c) (new style after SN 000173) usually ships 5-12 days
3b 278-0430 Pump $333.50 1 (old style after SN 000174) usually ships 5-12 days
3c 278-0559 Pump tubing $19.40 1 usually ships 5-12 days
4 999-9089 Washer M4 flat stainless steel $0.99 2 ships same day
5 999-1954 Washer M4 lock $0.99 2 ships same day
6 999-1645 Screw M4-.7 x 12mm hex head stainless steel $1.29 2 ships same day
7a 278-0326 10 inch wheel $329.12 2 ships same day
7b 278-0560 Ball bearing $16.02 4 ships same day
8 278-0325 Retaining ring $3.17 2 ships same day
9 278-0324 Wheel cap $28.56 2 ships same day
10 278-0323 P clamp $3.17 5 usually ships 5-12 days
11 999-9100 Washer M5 flat stainless steel $5.83 5 ships same day
12 999-9109 Screw M5-.8 x 12mm pan head phillips stainless steel $0.99 5 ships same day
13 278-0322 Stand bracket $11.44 2 usually ships 5-12 days
15 999-0674 Washer M8 split lock plain finish $0.99 3 ships same day
16 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel $2.64 3 ships same day
17 278-0178 Static strap $6.36 1 usually ships 5-12 days
18 278-0561 Horn kit $12.72 1 usually ships 5-12 days
19 999-1521 Washer M3 flat stainless steel $0.99 4 ships same day
20 999-1180 Screw M3-.5 x 16mm pan head stainless steel $0.99 2 ships same day
