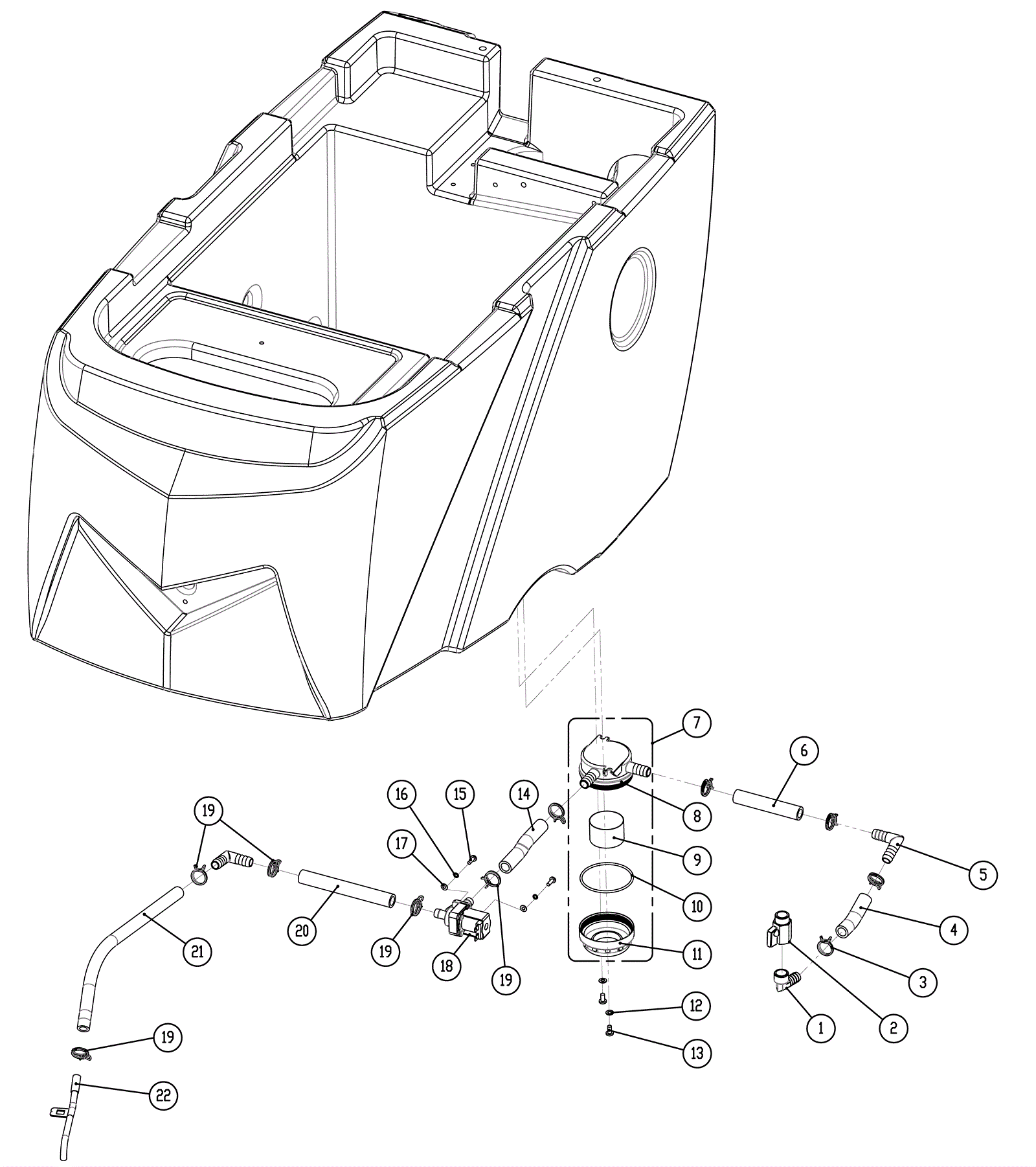

I20NB Solution Assembly

#PartDescriptionPriceReqNotesAvailability
1 278-0070 Elbow $8.36 1 usually ships 9-14 days
2 278-0069 Ball valve $24.55 1 usually ships 9-14 days
3 278-0303 Clamp $3.65 5 usually ships 9-14 days
4 278-0304 Tube $3.65 1 usually ships 9-14 days
5 278-0305 Elbow $3.65 2 usually ships 9-14 days
6 278-0306 Tubing $3.65 1 usually ships 9-14 days
7a 278-0307 Filter assembly $32.01 1 (40 mesh filter assembly) usually ships 9-14 days
7b 278-0307 Filter assembly $32.01 1 usually ships 9-14 days
8 278-0308 Filter assembly base $7.30 1 usually ships 9-14 days
9 278-0310 40 mesh filter screen assembly $7.30 1 usually ships 9-14 days
10 278-0311 O-ring $3.65 1 ships same day
11 278-0312 Filter assembly cap $12.65 1 ships same day
12 999-9100 Washer M5 flat stainless steel $5.83 2 ships same day
13 999-9109 Screw M5-.8 x 12mm pan head phillips stainless steel $0.99 2 ships same day
14 278-0306 Tubing $3.65 1 usually ships 9-14 days
15 999-1645 Screw M4-.7 x 12mm hex head stainless steel $1.29 2 ships same day
16 999-1954 Washer M4 lock $0.99 2 ships same day
17 999-9089 Washer M4 flat stainless steel $0.99 2 ships same day
18 278-0159 24V solenoid valve $57.40 1 usually ships 9-14 days
19 278-0244 Clamp $3.65 5 usually ships 9-14 days
20 278-0314 Tubing $3.65 1 usually ships 9-14 days
21 278-0315 Tubing $7.30 1 usually ships 9-14 days
22 278-0188 Water supply tube $18.41 1 usually ships 9-14 days
