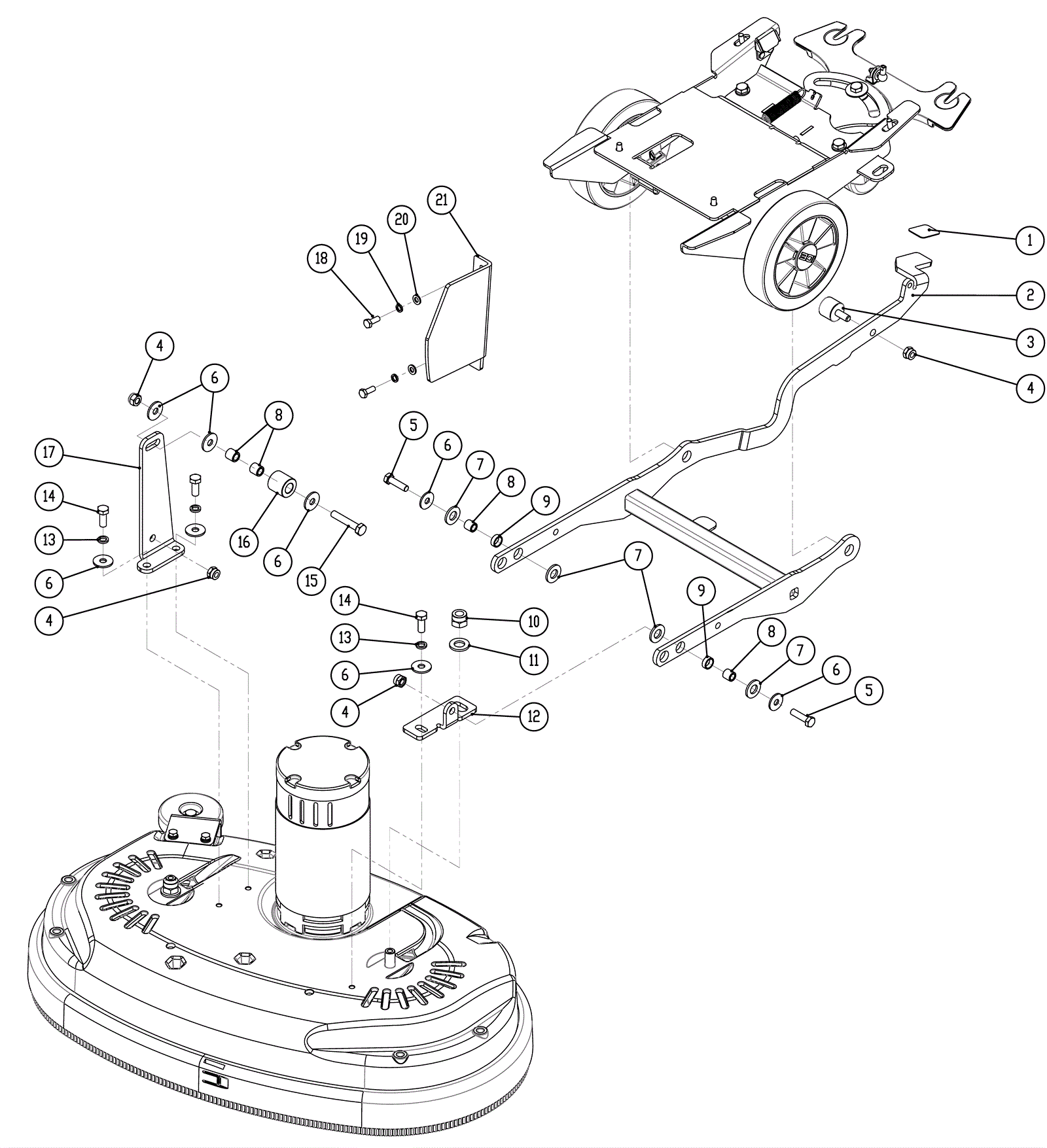

Scrub Head Lift Assembly

#PartDescription ReqNotesAvailability
1 278-0273 Non-slip mat 1
2 278-0274 Scrub head lift bracket 1
3 278-0275 Bumper 1
4 999-0496 Nut M8-1.25 nylon insert lock stainless steel 5
5 999-0248 Bolt M8-1.25 x 30mm hex head full thread plain finish 2
7 278-0174 Nylon spacer 4
8 278-0033 Spacer 4
9 278-0163 Sleeve 2
10 999-0519 Nut M12-1.75 nylon insert lock stainless steel 1
11 278-0157 Washer 1
12 278-0284 Left hand bracket 1
13 999-0674 Washer M8 split lock plain finish 3
14 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain 3
15 278-0219 Screw M8 1
16 278-0280 Roller 1
17 278-0285 Right hand bracket 1
18 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish 2
19 999-1117 Washer M6 split lock stainless steel 2
20 999-6714 Washer M6 x 12mm flat stainless steel 2
21 278-0286 Guide bracket 1
