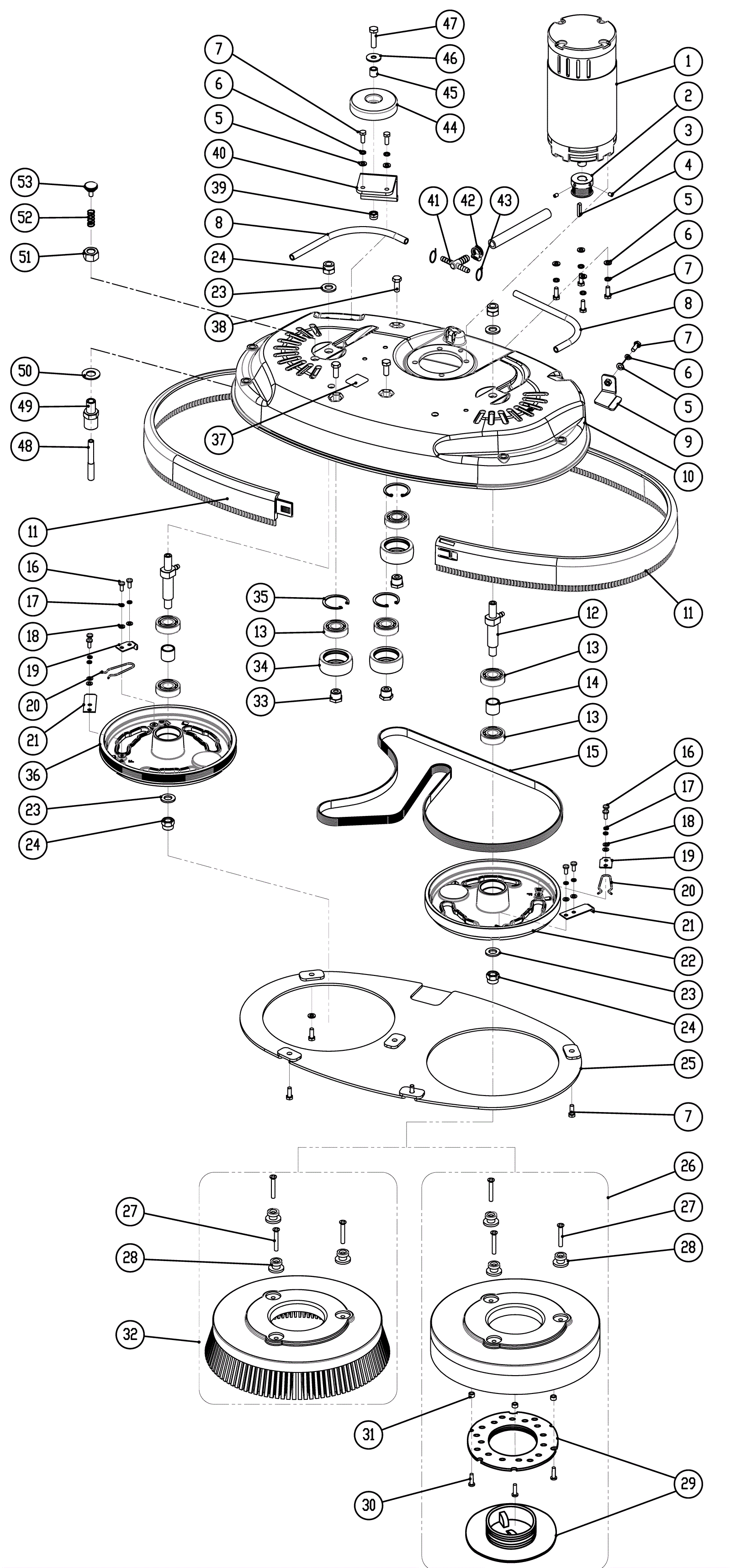

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
278-0246
|
24V brush motor |
1 |
|
|
4 |
278-0249
|
Square keyway |
1 |
|
|
6 |
999-1117
|
Washer M6 split lock stainless steel |
7 |
|
|
7 |
999-0507
|
Bolt M6-1 x 16mm hex head full thread plain finish |
12 |
|
|
8 |
278-0250
|
Tubing |
2 |
|
|
11 |
278-0253
|
Scrub head bumper |
2 |
|
|
14 |
278-0256
|
Bushing |
2 |
|
|
21 |
278-0258
|
Brush plate clamp |
2 |
|
|
23 |
278-0157
|
Washer |
4 |
|
|
26b |
278-0262
|
11 inch pad holder |
2 |
|
|
28 |
278-0198
|
Stud |
12 |
|
|
30 |
278-0203
|
Screw |
6 |
|
|
33 |
278-0264
|
Idler spacer |
3 |
|
|
34 |
278-0265
|
Idler pulley |
3 |
|
|
35 |
278-0266
|
Retaining ring |
3 |
|
|
37 |
278-0212
|
Warning decal |
1 |
|
|
40 |
278-0268
|
Wall roller bracket |
1 |
|
|
