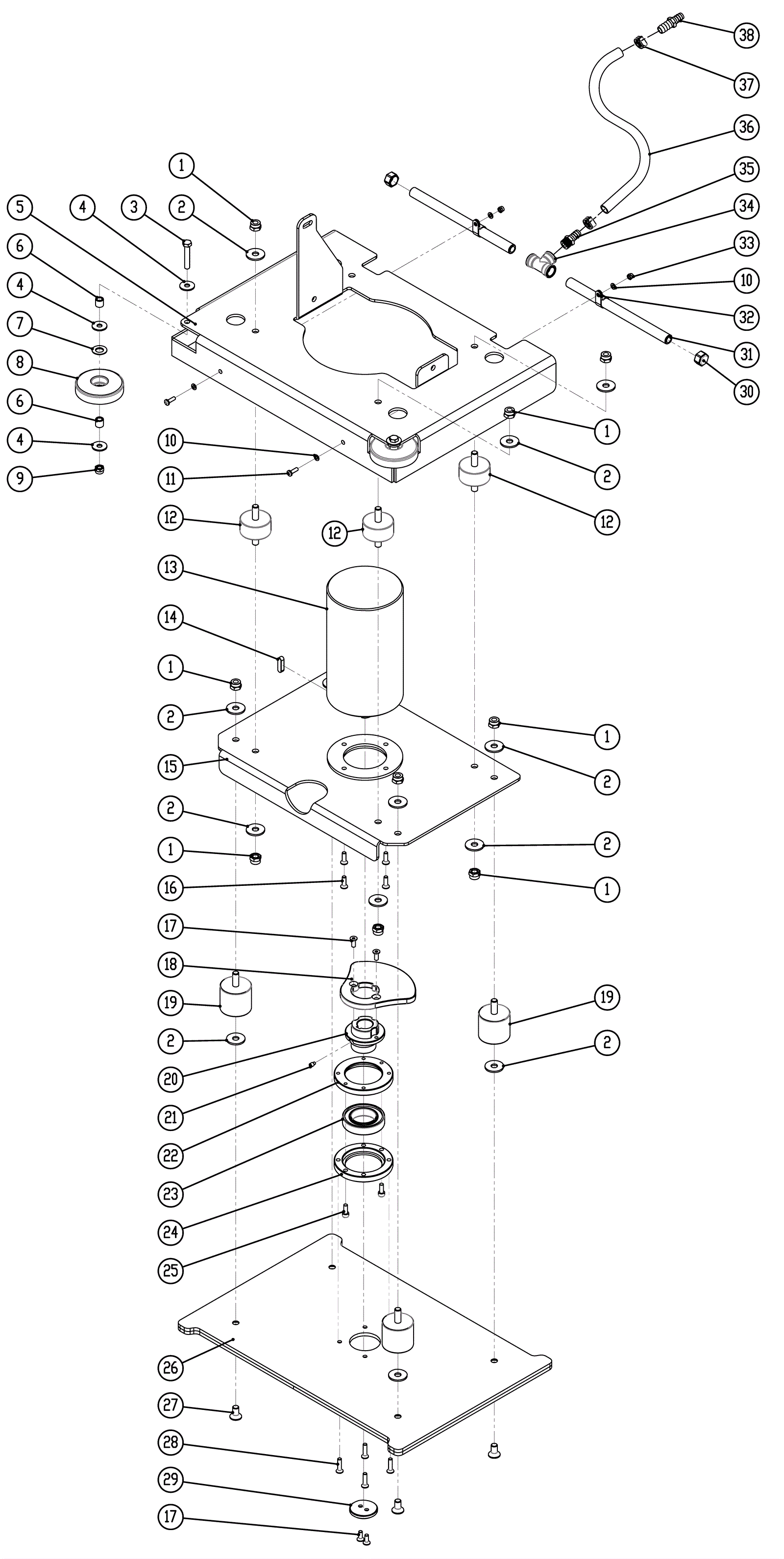

Oribital Head Assembly

#PartDescription ReqNotesAvailability
1 999-1120 Nut M10-1.5 nylon insert lock stainless steel 12
2 999-6713 Washer M10 x 30mm flat stainless steel 16
3 278-0219 Screw M8 2
5 278-0220 Orbital head bracket 1
6 278-0033 Spacer 4
7 278-0221 Wave washer 2
8 278-0216 Bumper wheel 2
9 999-0496 Nut M8-1.25 nylon insert lock stainless steel 2
10 999-9100 Washer M5 flat stainless steel 4
11 278-0104 Screw M5 x 15mm 2
12 278-0222 Isolator 4
13 278-0223 Brush motor kit 1
14 278-0224 Key 1
15 278-0225 Motor mounting bracket 1
16 278-0226 Screw M6 x 20mm 4
17 278-0227 Screw M6 X 16mm 4
18 278-0228 Eccentric 1
19 278-0229 Isolator 4
20 278-0230 Eccentric shaft 1
21 278-0231 Screw M6 x 10mm 1
22 278-0232 Bearing housing 1
23 278-0233 Ball bearing 1
24 278-0234 Bearing housing 1
25 278-0138 Screw M6 x 16mm 2
26 278-0235 Pad driver 1
27 278-0236 Screw M10 x 20mm 4
28 999-1310 Screw M10-1.5 x 25mm socket head zinc 4
29 278-0237 Plate 1
30 278-0238 End cap 2
31 278-0239 PVC tubing 2
32 278-0240 Plastic clamp 2
33 999-0953 Nut M5-.8 hex nylon insert lock stainless steel 2
34 278-0241 Tee fitting 1
35 278-0242 Straight joint 1
36 278-0243 Tubing 1
37 278-0244 Clamp 2
38 278-0245 Tube fitting 1
