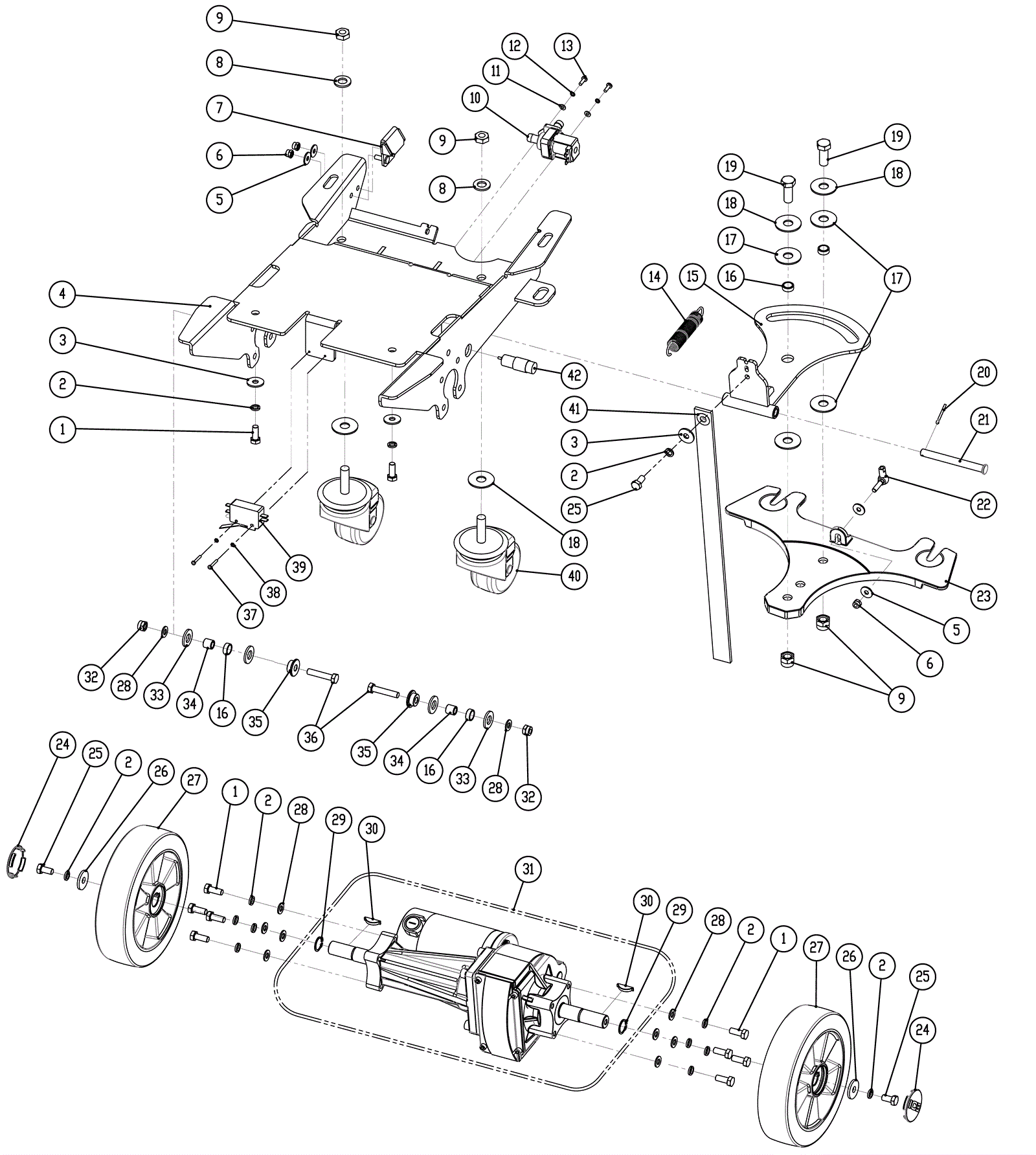

Frame and Transaxle Assembly

#PartDescription ReqNotesAvailability
1 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain 12
2 999-0674 Washer M8 split lock plain finish 15
4 278-0155 Main frame 1
5 999-1803 Washer M6 flat fender stainless steel 4
6 999-0497 Nut M6-1 nylon insert lock stainless steel 3
7 278-0156 Pedal locking bracket 1
8 278-0157 Washer 4
9 999-0519 Nut M12-1.75 nylon insert lock stainless steel 4
10 278-2193 24V solenoid valve 1
11 999-9089 Washer M4 flat stainless steel 2
12 999-1954 Washer M4 lock 2
13 999-1645 Screw M4-.7 x 12mm hex head stainless steel 4
14 278-0161 Spring 1
15 278-0162 Squeegee lift bracket 1
16 278-0163 Sleeve 4
17 278-0164 Thrust washer 4
18 278-0119 Washer 4
19 278-0165 Bolt M12 x 30mm 2
20 278-0166 Cotter 1
21 278-0167 Pin 1
22 278-0168 Ball joint 1
23 278-0169 Squeegee mounting bracket 1
24 278-0170 Wheel cover 2
25 999-0517 Bolt M8-1.25 x 16mm hex head full thread zinc 3
26 999-6695 Washer M8 fender stainless steel 2
27a 278-0180 8 inch wheel 2
27b 278-0182 8 inch foam filled wheel 2
27c 278-0182 8 inch foam filled wheel 2
28 999-9097 Washer M8 flat stainless steel 10
29 278-0183 Retaining ring 2
30 278-0184 Woodruff key 2
31 278-0185 Transaxle kit 1
32 999-0496 Nut M8-1.25 nylon insert lock stainless steel 10
33 278-0174 Nylon spacer 4
34 278-0033 Spacer 2
35 278-0175 Bushing 2
36 999-0787 Bolt M8-1.25 x 40mm hex head full thread stainless steel 2
37 278-0090 Screw M3 x 25mm 2
38 278-0089 Washer M3 tooth 2
39 278-0176 Microswitch 1
40 278-0177 Swivel caster 2
41 278-0178 Static strap 1
42 278-0179 Proximity sensor kit 1
