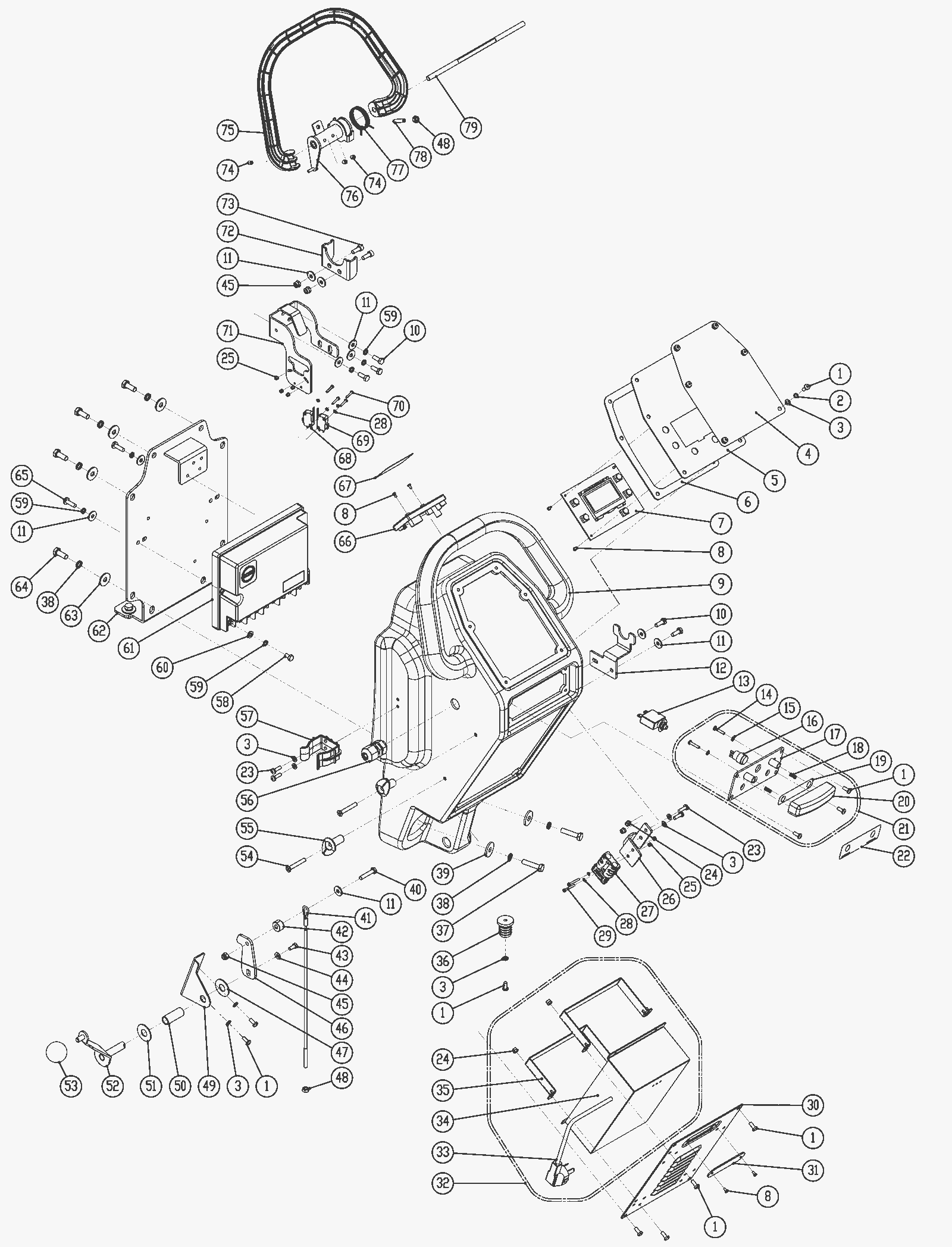

Control Console Assembly

#PartDescription ReqNotesAvailability
1 999-9109 Screw M5-.8 x 12mm pan head phillips stainless steel 21
2 999-9132 Washer M5 split lock stainless steel 6
3 999-9100 Washer M5 flat stainless steel 13
4 278-2190 i20NBT control panel decal 1
5 278-0144 Control panel 1
6 278-0096 Gasket 1
7 278-0145 Control panel PCB 1
8 999-6715 Screw M3-.5 x 6mm pan head stainless steel 7
9 278-0099 Control housing 1
10 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish 5
11 999-1803 Washer M6 flat fender stainless steel 10
12 278-0100 Squeegee storage bracket 1
13 278-0101 5amp circuit breaker 1
14 278-0146 Screw M4 x 20mm 2
15 999-9089 Washer M4 flat stainless steel 2
16 278-0147 Emergency stop switch kit 1
17 278-0148 Circuit breaker base 1
18 278-0149 Spring 2
19 278-0150 LED light 1
20 278-0151 Emergency stop button 1
21 278-0152 Emergency stop switch kit 1
22 278-0103 Circuit breaker decal 1
23 278-0104 Screw M5 x 15mm 4
24 999-0953 Nut M5-.8 hex nylon insert lock stainless steel 6
25 999-1161 Nut M3-.5 hex nylock stainless steel 6
26 278-0088 Connector bracket 1
27 278-0071 Connector 1
28 278-0089 Washer M3 tooth 6
29 278-0090 Screw M3 x 25mm 2
30 278-0105 Battery plate 1
31 278-0106 Clear cover 1
33 278-0107 Battery charger power cord kit (new style charger 813201-US) 1 (New style for charger 8132010-US)
35 278-0108 Battery charger clamp (OBSOLETE) 2
36 278-0109 Connector 1
37 999-0787 Bolt M8-1.25 x 40mm hex head full thread stainless steel 2
38 999-0674 Washer M8 split lock plain finish 12
39 999-6695 Washer M8 fender stainless steel 2
40 278-0111 Bolt M6 x 30mm 1
41 278-0112 Squeegee lift cable 1
42 278-0113 Lifting rope spacer 1
43 278-0114 Bolt M5 x 12mm 1
44 278-1909 Washer M5x15x10 stainless steel 1
45 999-0497 Nut M6-1 nylon insert lock stainless steel 3
46 278-0116 Baffle 1
47 278-0054 Washer 1
48 278-0037 Upholstery tool assembly 2
49 278-0117 Bracket 1
50 278-0118 Sleeve 1
51 278-0119 Washer 1
52a 278-0120 Squeegee lifting handle 1 (for version 2 console)
52b 278-0633 Squeegee lifting handle 1 (for version 1 console)
53 278-0050 Ball knob 1
54 278-0121 Screw 2
55 278-0122 Power cord hook 2
56 278-0123 Strain relief 1
57 278-0124 Drain hose clamp 1
58 278-0125 Bolt 8
59 999-1117 Washer M6 split lock stainless steel 13
60 278-0127 Washer 8
61 278-0153 Main controller 1
62 278-0129 Control console rear plate 1
64 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain 10
65 278-0131 Screw 2
66 278-2020 RFID reader 1
67 278-0133 i-SYNERGY card scanning decal 1
68 278-0134 Micro switch 1
69 278-0154 Micro switch (3 terminal) 1
70 278-0135 Screw M3 x 20mm 4
71 278-0136 Switch bracket 1
72 278-0137 Spring bracket 1
73 278-0138 Screw M6 x 16mm 2
74 278-0007 Set screw 4
75 278-0006 Bail lever 1
76 278-0139 Actuator 1
77 278-0140 Spring 1
78 278-0141 Screw M6 x 30mm 1
79 278-0142 Shaft 1
