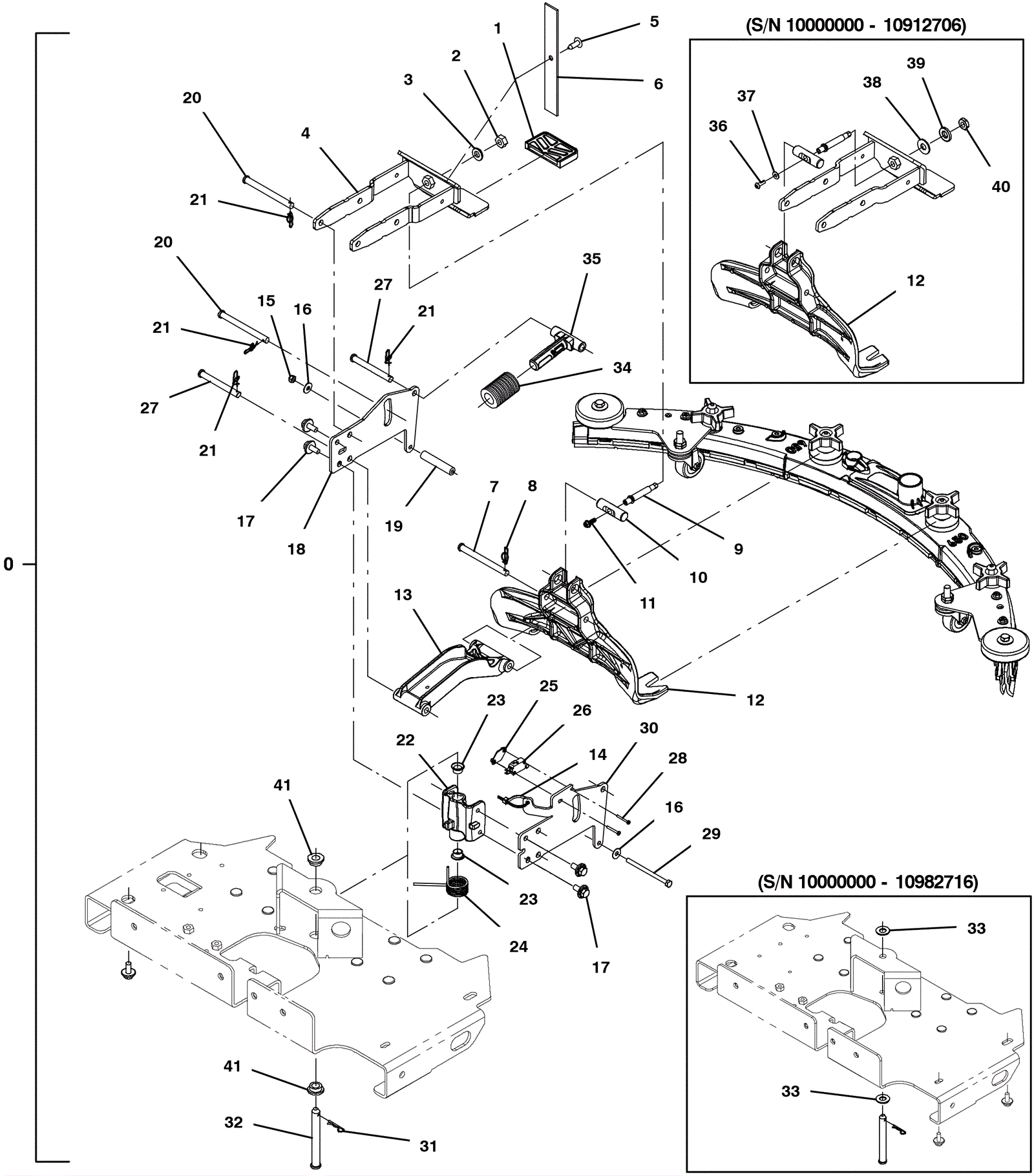

Squeegee Lift Assembly

#PartDescription ReqNotesAvailability
0 375-2504 Squeegee lift kit 1 (includes 1-14a)
1 375-4602 Lift pedal cover 1
2 999-0767 Nut M10-1.5 hex coarse thread 1 (after SN 10907774)
3 999-1884 Washer M10 nord lock 1 (after SN 10907774)
4 375-4603 Squeegee lift arm 1
5 991-5122 1/4 nylon tree push-in rivet 1 (after SN 10909656)
6 275-7799 Fastener 1 (after SN 10909656)
7 375-2505 Clevis pin 1
8 375-0071 Cotter hair pin 1
9 375-4607 Adjustment shaft 1
10 375-4608 Pin 1
11 999-1618 Bolt M5-.8 x 16mm hex head stainless steel 1 (after SN 10912706)
12 375-4609 Squeegee mount 1
13 375-4610 Lower arm 1
14a 175-7795 Cable tie 1 (after SN 10907774)
14b 275-5197 Fir tree clip 1 (before SN 10907775)
15 999-0497 Nut M6-1 nylon insert lock stainless steel 1
16 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 2
17 275-4736 Screw M8-1.25 x 20mm hex washer head stainless steel SEMS 4
18 375-4604 Squeegee lift plate 1
19 375-4605 Tube 1
20 275-3031 PIN, CLEVIS, 0.37D X 4.00L (Tennant Industrial) 2
21 375-0071 Cotter hair pin 3
22 375-4611 Replacement squeegee pivot assembly 1 (includes 23)
23 175-3335 Flanged bushing 2
24 375-4612 Torsion spring 1
25 175-7839 Switch plate 1
26 375-0226 Mircroswitch 1
27 275-8362 PIN, CLEVIS, 0.37D X 3.25L (Tennant Industrial) 2
28 999-1221 Screw M3-.5 x 25mm pan head stainless steel 2
29 275-3123 SCREW, HEX, M6 X 1.00 X 90, 8.8 (Tennant Industrial) 1
30 375-4613 Squeegee lift plate 1
31 175-2117 Cotter pin 1
32 375-4614 Clevis pin 1
33 999-0114 Washer 1/2 SAE flat 2
34 375-3270 Compression spring 1
35 375-4606 Spring guide 1
36 999-1403 Screw M8 x 16mm torx head 1 (before SN 10912707)
37 999-0998 Washer #10 flat stainless steel 1 (before SN 10912707)
38 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel 1 (before SN 10907775)
39 175-2305 Washer 1 (before SN 10907775)
40 999-1625 Nut M10-1.5 hex jam stainless steel 1 (before SN 10907775)
41 375-2506 Flange bushing 2 (after SN 10982716)
