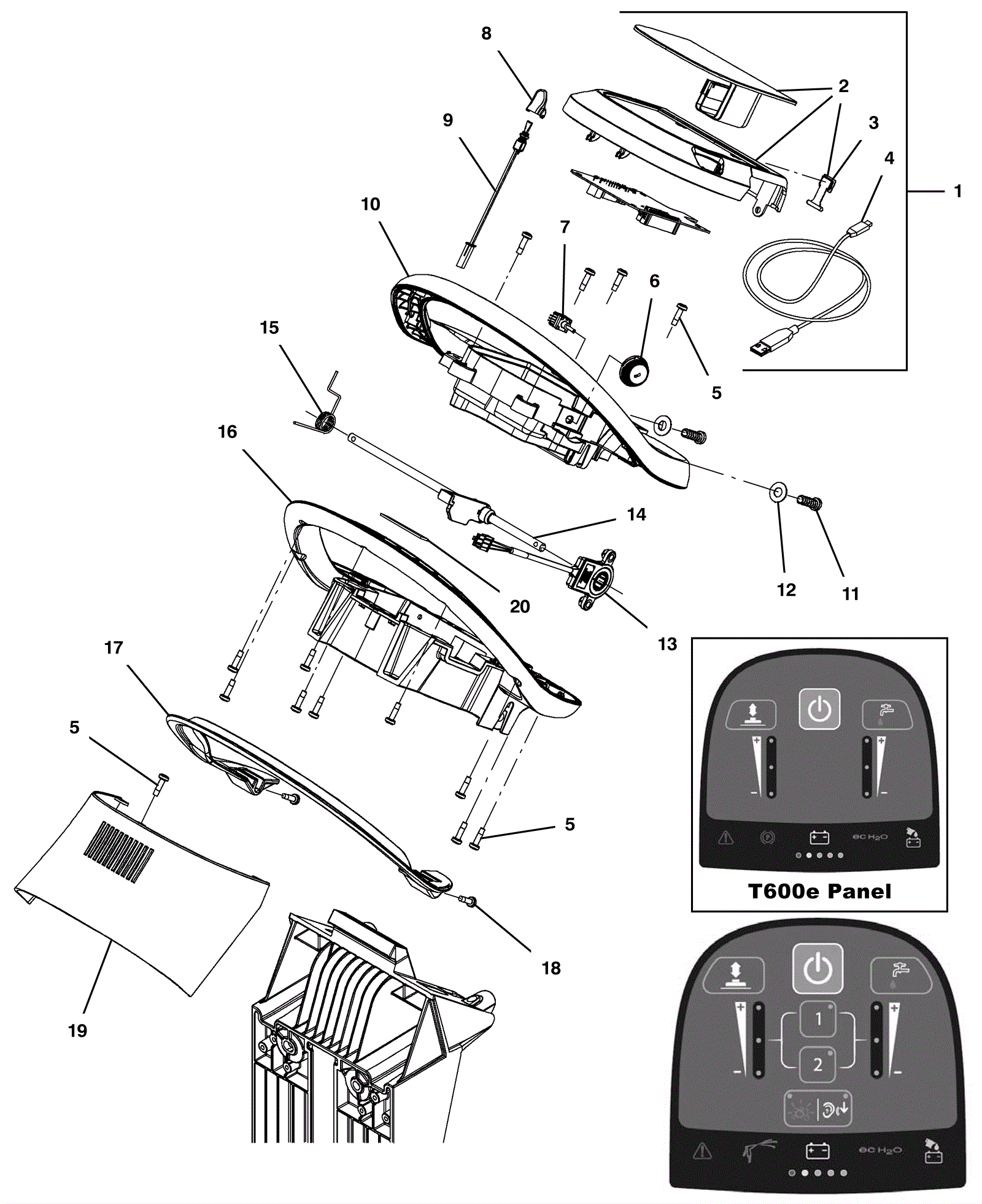

T600E Console Handle

#PartDescriptionPriceReqNotesAvailability
1a 375-4598 Membrane bezel kit $696.52 1 (includes 2a, 3-5) (T600e pro-membrane panel) (requires Tennant True service or an authorized Tennant service provider) ships same day
1b 375-3266 Membrane bezel kit $625.24 1 (includes 2b, 3-5) (T600 pro-membrane panel) (requires Tennant True service or an authorized Tennant service provider) ships same day
1c 375-0241 LCD bezel kit $1,731.62 1 (includes 3-4) (T600 pro-panel LCD) (also requires ferrite) (requires Tennant True service or an authorized Tennant service provider) ships same day
2a 375-4599 Membrane screen kit $239.58 1 (T600e pro-membrane panel) (includes 3-4) ships same day
2b 375-3267 Screen kit (OBSOLETE) $175.45 1 (T600 pro-membrane panel) (includes 3-4) usually ships 10-16 days
3 375-9374 Console gasket $37.18 1 (after March 2020) usually ships 10-16 days
4 275-5430 USB cap $6.82 1 usually ships 10-16 days
5 375-1351 USB to USB mini cable $15.29 1 usually ships 10-16 days
6 375-4600 Speed range dial $8.14 1 ships same day
7 275-5452 Potentiometer $81.73 1 ships same day
8 275-5453 Toggle cap $6.82 1 ships same day
9 275-5454 Toggle switch assembly $76.45 1 ships same day
10 275-5434 Top handle housing $85.25 2 usually ships 10-16 days
11 375-3186 Screw $9.13 2 usually ships 10-16 days
12 999-0024 Washer 5/16 flat stainless steel $1.34 3 ships same day
13 275-5456 Rotary sensor $95.26 1 (before SN 10982737) usually ships 10-16 days
14 275-5436 Handle shaft assembly $18.92 1 usually ships 10-16 days
15 275-5435 Spring $29.26 1 usually ships 1-5 days
16 275-5437 Bottom handle housing $85.80 1 usually ships 10-16 days
17 275-5438 Bail $46.31 1 usually ships 10-16 days
18 999-1403 Screw M8 x 16mm torx head $2.90 2 ships same day
19 275-5439 Handle cover $18.04 1 usually ships 10-16 days
20 275-5893 Seal $25.74 1 usually ships 1-5 days
21 175-7660 Screw #10-14 x .675 shoulder self-tapping $3.04 15 ships same day
22 475-2983 SEAL, AFMKT, RBR, CLSD, ADH, 01FT $3.17 1 (after March 2020) usually ships 10-16 days
23 275-5433 Switch $9.57 1 (after SN 10982736) usually ships 10-16 days
