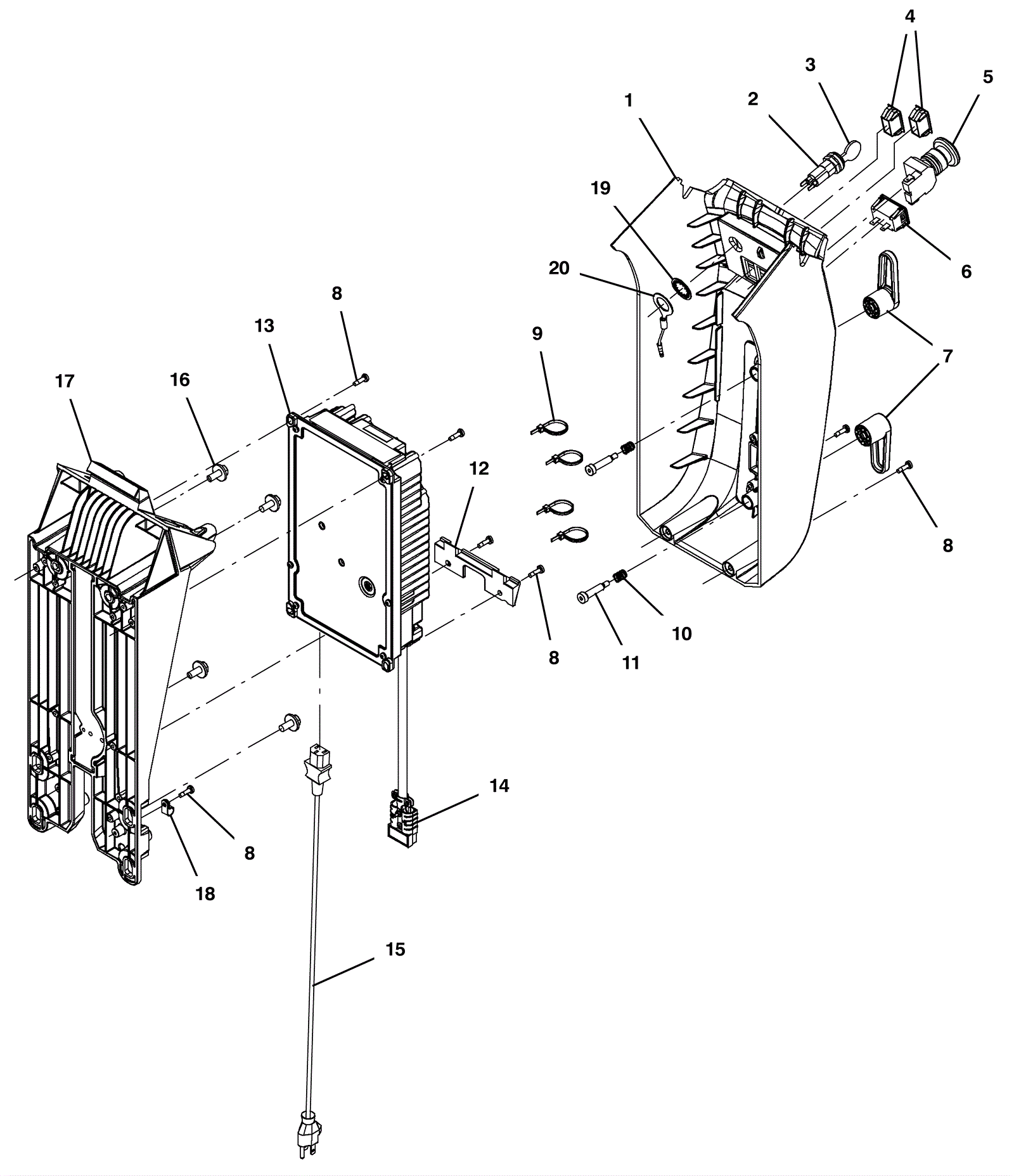

T600E Lower Console Assembly - On-Board Charger

#PartDescriptionPriceReqNotesAvailability
1 375-4591 Console cover with decal $241.23 1 usually ships 10-16 days
2 175-7872 Key switch with 2 keys $53.13 1 (includes 3) ships same day
3 991-1634 Key (pkg of 2) $10.67 1 ships same day
4 175-2698 Switch plug $6.05 2 ships same day
5 275-1416 Safety shut-off switch $40.81 1 ships same day
6 275-9900 Hour meter $53.79 1 ships same day
7 275-5449 Cord hook $3.04 2 usually ships 10-16 days
8 175-7660 Screw #10-14 x .675 shoulder self-tapping $3.04 9 ships same day
9 175-7795 Cable tie $4.75 4 ships same day
10 175-7507 Compression spring $4.09 2 ships same day
11 175-9855 Bolt M6-.8 x 30mm shield $7.70 2 usually ships 10-16 days
12 375-4592 Charger bracket $8.58 1 usually ships 10-16 days
13a 375-4593 36V on-board battery charger $839.08 1 (includes 14a) (not for use with TPPL batteries) ships same day
13b 375-2501 36V on-board battery charger for lithium $1,083.83 1 (includes 14a) (high output for TPPL batteries) ships same day
13c 375-4593 36V on-board battery charger $839.08 1 (includes 14b) (standard) ships same day
13d 375-2501 36V on-board battery charger for lithium $1,083.83 1 (includes 14b) (high output) ships same day
14a 991-2105 SB50 50amp charger plug with pins (gray) $6.72 1 ships same day
14b 991-2112 175amp charger plug with pins (gray) SB175 $16.09 1 ships same day
15 275-1585 16/3 charger power cord 15 foot (black) $80.83 1 ships same day
16 275-4736 Screw M8-1.25 x 20mm hex washer head stainless steel SEMS $4.09 4 ships same day
17 375-3182 Column frame $112.86 1 usually ships 10-16 days
18 175-5421 P clamp $4.88 1 usually ships 10-16 days
19 375-9373 Screw M6 x 1 x 30, 10.9 $1.32 1 usually ships 10-16 days
20 275-5428 Wiring harness $21.67 1 usually ships 10-16 days
