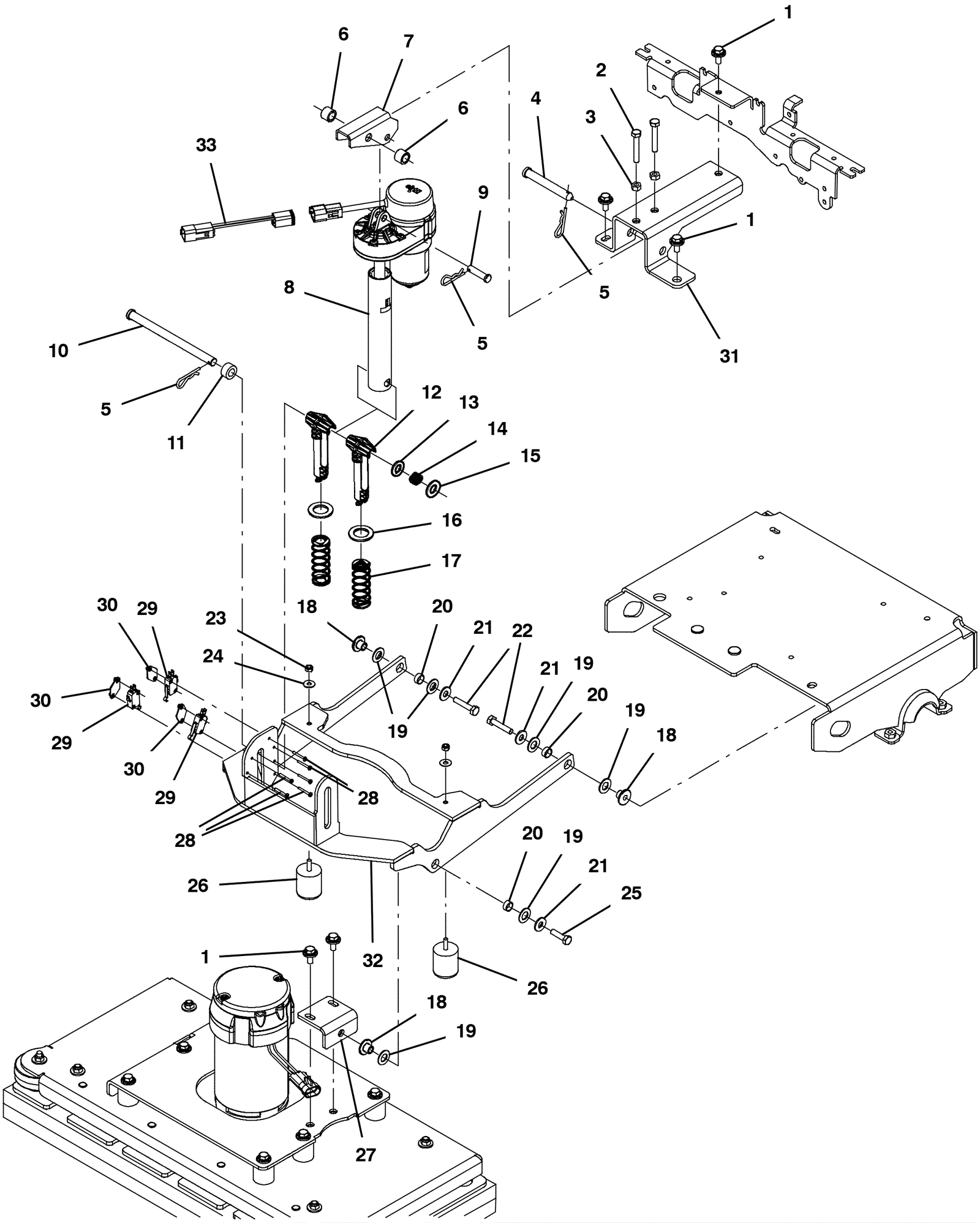

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
275-4736
|
Screw M8-1.25 x 20mm hex washer head stainless steel SEMS |
5 |
|
|
2 |
999-1692
|
Screw M8-1.25 x 50mm hex stainless steel |
2 |
|
|
3 |
999-1424
|
Nut M8-1.25 hex stainless steel |
2 |
|
|
4 |
175-4960
|
Clevis pin |
1 |
|
|
5 |
175-4331
|
Cotter hair pin |
3 |
|
|
6 |
375-4579
|
Sleeve |
2 |
|
|
7 |
375-4580
|
Actuator tilt mount bracket |
1 |
|
|
8 |
375-4578
|
36V replacement actuator |
1 |
|
|
9 |
175-2111
|
Clevis pin |
1 |
|
|
10 |
375-3255
|
Clevis pin |
1 |
|
|
11 |
375-3256
|
Spacer |
1 |
|
|
12 |
375-3257
|
Scrubhead guide spring pin |
2 |
|
|
13 |
999-9214
|
Washer M8 flat nylon |
1 |
|
|
14 |
375-3258
|
Wave spring |
1 |
|
|
15 |
999-0114
|
Washer 1/2 SAE flat |
1 |
|
|
16 |
375-3259
|
Thrust washer |
2 |
|
|
17 |
375-3260
|
Spring |
2 |
|
|
18 |
275-7716
|
Flanged sleeve (Tennant Industrial) |
3 |
|
|
19 |
999-0566
|
Washer 1/2 flat nylon |
7 |
|
|
20 |
175-4720
|
Bearing |
4 |
|
|
21 |
999-0355
|
Washer 3/8 x 7/8 SAE flat stainless steel |
4 |
|
|
22 |
999-0787
|
Bolt M8-1.25 x 40mm hex head full thread stainless steel |
2 |
|
|
23 |
999-0497
|
Nut M6-1 nylon insert lock stainless steel |
2 |
|
|
24 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
2 |
|
|
25 |
999-0770
|
Screw M8-1.25 x 30mm flat head socket stainless steel |
2 |
|
|
26 |
275-1258
|
Bumper (Tennant Industrial) |
2 |
|
|
27 |
375-3261
|
Lift weldment bracket |
1 |
|
|
28 |
999-1221
|
Screw M3-.5 x 25mm pan head stainless steel |
4 |
|
|
29 |
375-0226
|
Mircroswitch |
2 |
|
|
30 |
175-7839
|
Switch plate |
2 |
|
|
31 |
375-4583
|
Actuator mount bracket weldment |
1 |
|
|
32 |
375-4587
|
Lift arm weldment |
1 |
|
|
33 |
375-2499
|
Electrical harness |
1 |
(after SN 10959722) (T600e) |
|
