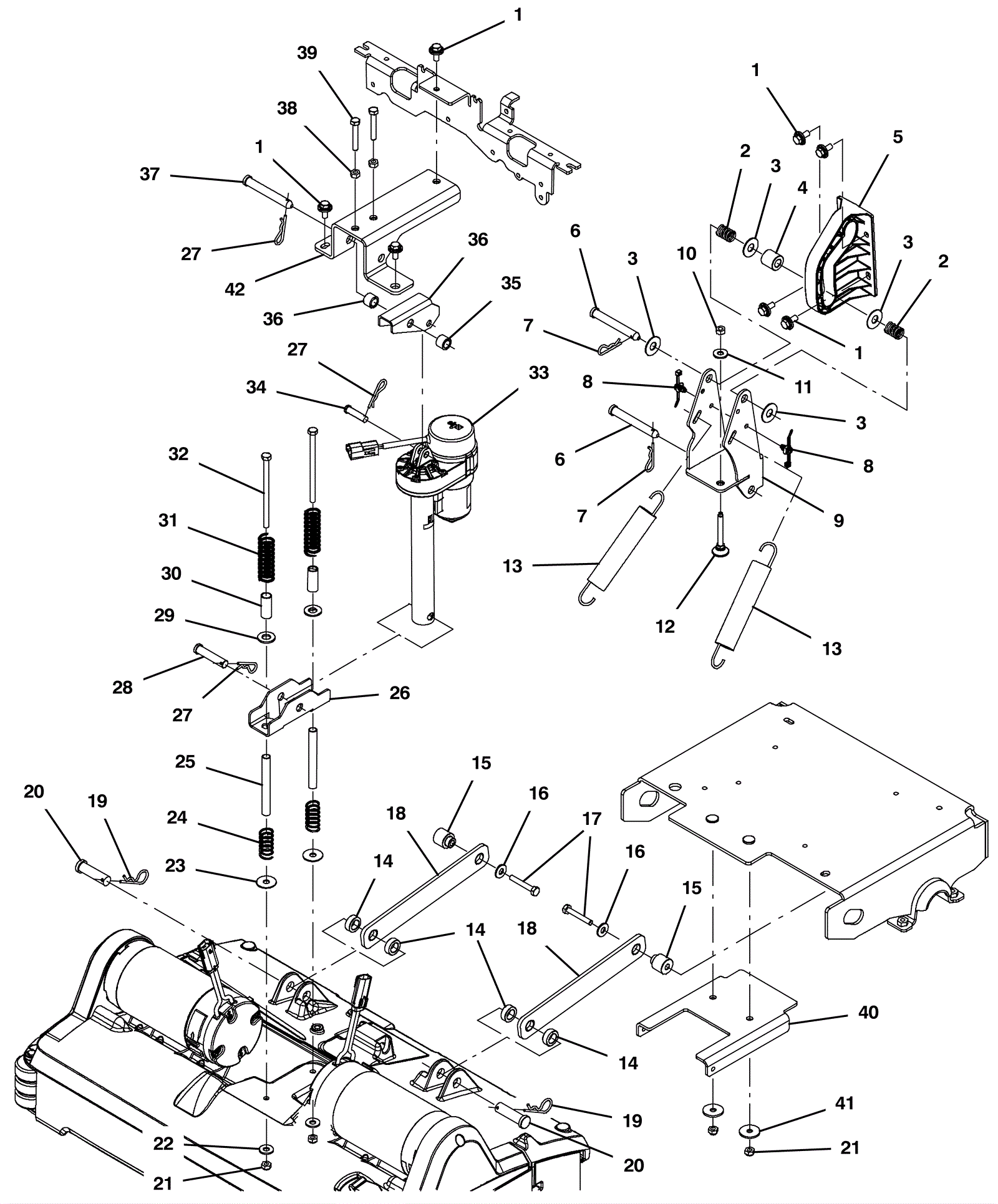

Head Lift Assembly - Cylindrical

#PartDescription ReqNotesAvailability
1 275-4736 Screw M8-1.25 x 20mm hex washer head stainless steel SEMS 7
2 175-4371 Compression spring 2
3 999-0559 Washer 1/2 x 1/4 flat stainless steel 4
4 175-7911 Roller 1
5 375-3248 Guide bracket 1
6 175-4960 Clevis pin 2
7 175-4331 Cotter hair pin 2
8 275-5197 Fir tree clip 2
9 375-3250 Scrubhead pivot weldment 1
10 999-1424 Nut M8-1.25 hex stainless steel 1
11 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel 1
12 375-3251 Leveler screw 1
13 175-2234 Extension spring 2
14 375-4570 Head spacer 4
15 375-4571 Frame spacer 2
16 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel 2
17 999-1692 Screw M8-1.25 x 50mm hex stainless steel 2
18 375-4572 Lift arm assembly 2
19 175-2106 Cotter hair pin 2
20 175-2105 Clevis pin 2
21 999-0496 Nut M8-1.25 nylon insert lock stainless steel 4
22 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel 2
23 175-2298 Washer .38 x .06 stainless steel 2
24 375-4584 Spring 2
25 375-3245 Sleeve 2
26 375-4582 Head suspension spring bracket 1
27 175-4331 Cotter hair pin 3
28 175-9603 Clevis pin 1
29 999-0114 Washer 1/2 SAE flat 2
30 375-3244 Pm sleeve 2
31 375-4585 Spring 2
32 275-8726 SCREW, HEX, M8 X 1.25 X 130, SS (Tennant Industrial) 2
33a 375-4576 36V replacement actuator 1 (T600e)
33b 375-4578 36V replacement actuator 1 (T600)
34 175-2111 Clevis pin 1
35 375-4579 Sleeve 2
36 375-4580 Actuator tilt mount bracket 1
37 175-4960 Clevis pin 1
38 999-1424 Nut M8-1.25 hex stainless steel 2
39 999-1692 Screw M8-1.25 x 50mm hex stainless steel 2
