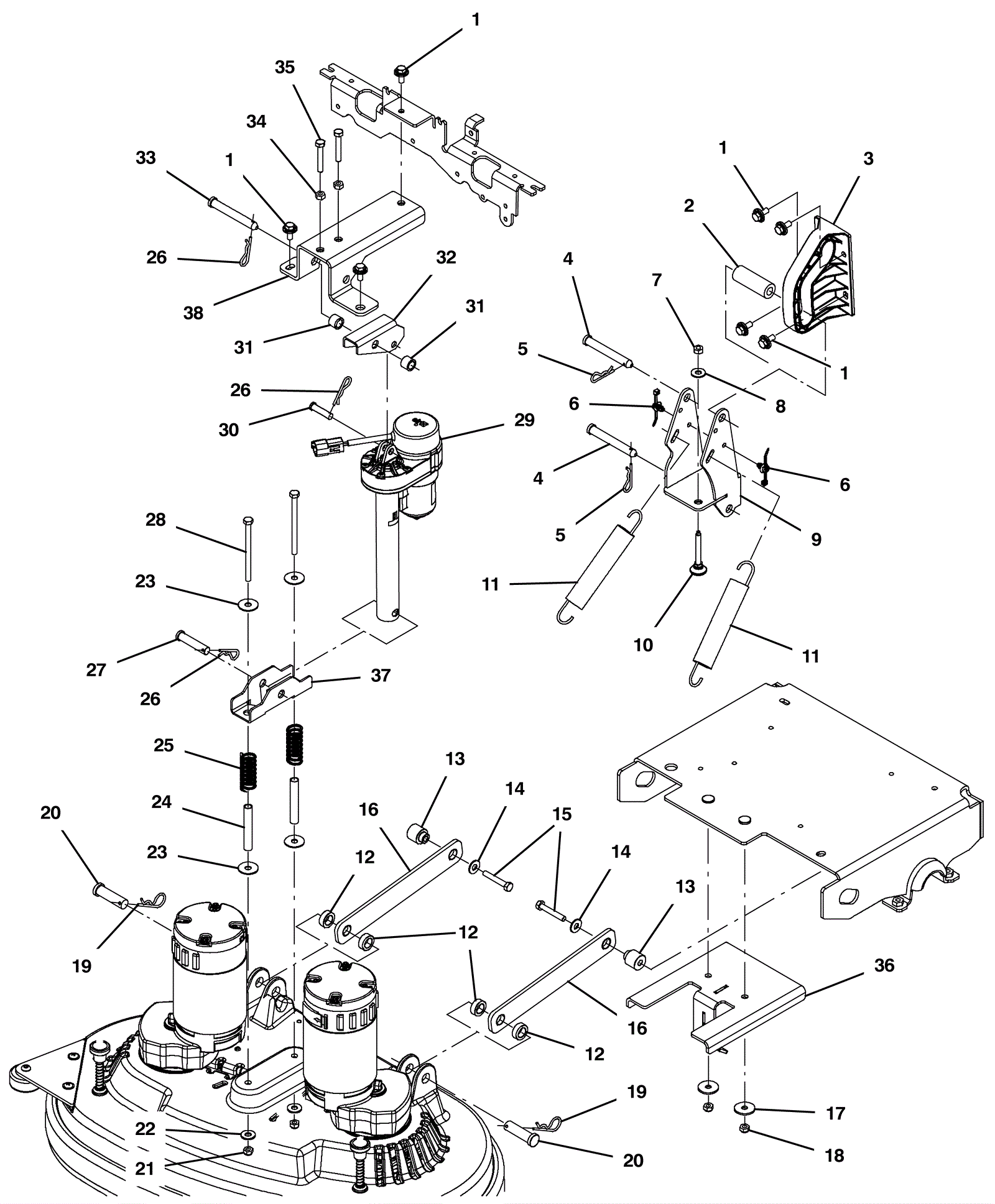

Head Lift Assembly - Disk

#PartDescription ReqNotesAvailability
1 275-4736 Screw M8-1.25 x 20mm hex washer head stainless steel SEMS 7
2 375-3249 Plastic tube 1
3 375-3248 Guide bracket 1
4 175-4960 Clevis pin 2
5 175-4331 Cotter hair pin 2
6 275-5197 Fir tree clip 2
7 999-1424 Nut M8-1.25 hex stainless steel 1
8 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel 1
9 375-3250 Scrubhead pivot weldment 1
10 375-3251 Leveler screw 1
11 175-2234 Extension spring 2
12 375-4570 Head spacer 4
13 375-4571 Frame spacer 2
14 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel 2
15 999-1692 Screw M8-1.25 x 50mm hex stainless steel 2
16 375-4572 Lift arm assembly 2
17 275-7133 Washer .34B x 1.25D x .11 flat stainless steel 2
18 999-0496 Nut M8-1.25 nylon insert lock stainless steel 2
19 175-2106 Cotter hair pin 2
20 175-2105 Clevis pin 2
21 999-0496 Nut M8-1.25 nylon insert lock stainless steel 2
22 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel 2
23 175-2298 Washer .38 x .06 stainless steel 4
24 375-4573 Sleeve 2
25a 375-4574 Spring 2 (standard)
25b 375-4575 Spring 2 (heavy down pressure)
26 175-4331 Cotter hair pin 3
27 175-9603 Clevis pin 1
28 275-1474 Screw M8-1.25 x 110mm hex head (Tennant Industrial) 2
29a 375-4576 36V replacement actuator 1 (T600e)
29b 375-4577 36V replacement actuator 1 (T600e heavy duty down pressure)
29c 375-4578 36V replacement actuator 1 (T600/T600 heavy duty down pressure)
30 175-2111 Clevis pin 1
31 375-4579 Sleeve 2
32 375-4580 Actuator tilt mount bracket 1
33 175-4960 Clevis pin 1
34 999-1424 Nut M8-1.25 hex stainless steel 2
35 999-1692 Screw M8-1.25 x 50mm hex stainless steel 2
36 375-4581 Stop frame bracket weldment 1
37 375-4582 Head suspension spring bracket 1
38 375-4583 Actuator mount bracket weldment 1
