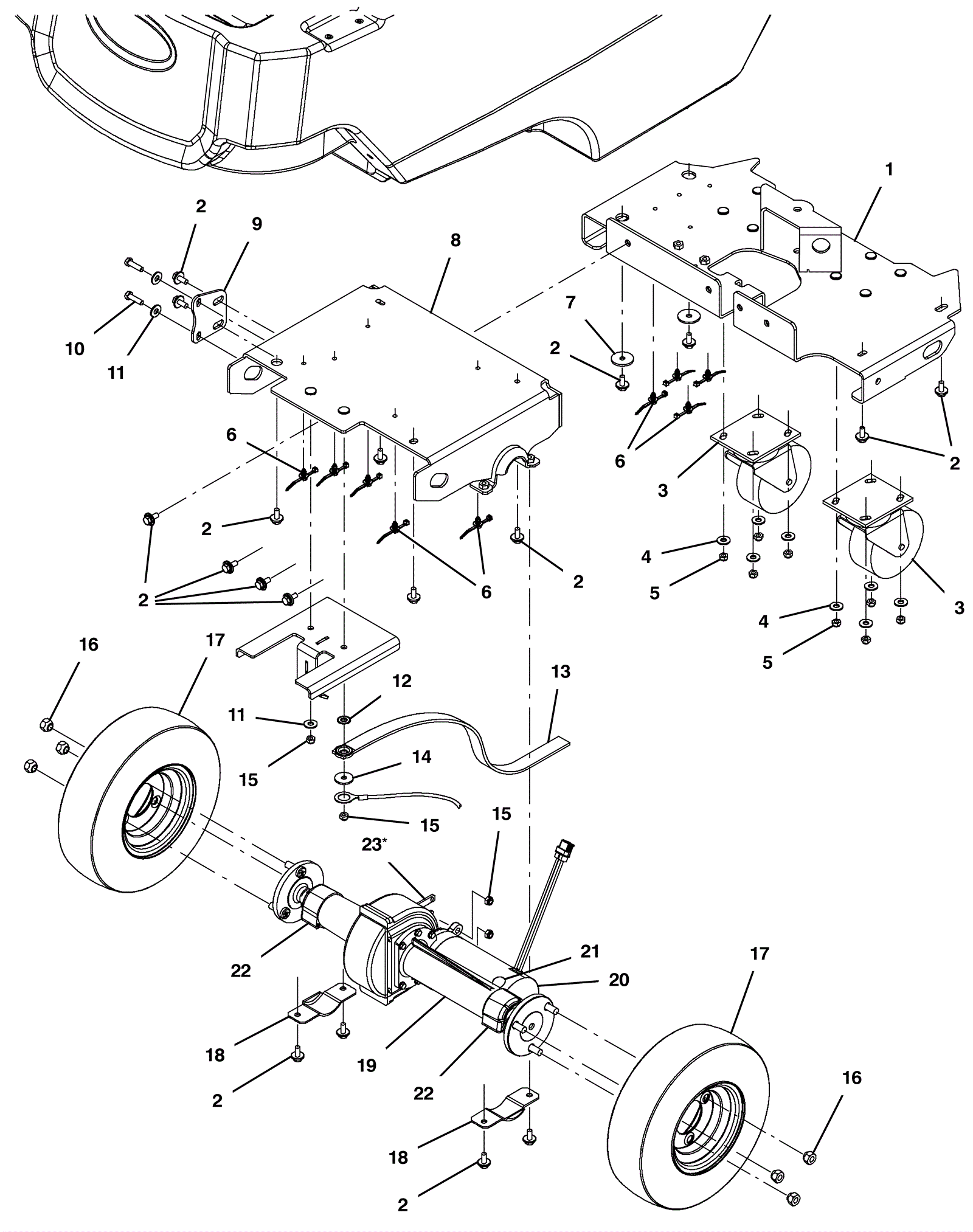

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
375-2497
|
Frame with bushings and decal |
1 |
|
|
2 |
275-4736
|
Screw M8-1.25 x 20mm hex washer head stainless steel SEMS |
18 |
|
|
3 |
175-2100
|
5 inch caster wheel assembly (gray) |
2 |
|
|
4 |
999-0355
|
Washer 3/8 x 7/8 SAE flat stainless steel |
8 |
|
|
5 |
999-0496
|
Nut M8-1.25 nylon insert lock stainless steel |
8 |
|
|
6 |
275-5197
|
Fir tree clip |
9 |
|
|
7 |
275-7133
|
Washer .34B x 1.25D x .11 flat stainless steel |
2 |
|
|
8 |
375-4564
|
Front frame weldment |
1 |
|
|
9 |
375-4565
|
Anti-rotate frame bracket |
1 |
|
|
10 |
999-0770
|
Screw M8-1.25 x 30mm flat head socket stainless steel |
2 |
|
|
11 |
999-0355
|
Washer 3/8 x 7/8 SAE flat stainless steel |
3 |
|
|
12 |
175-2893
|
Washer 5/16 internal/external locking |
1 |
|
|
13 |
275-9261
|
Static strip with grommet |
1 |
|
|
14 |
999-0355
|
Washer 3/8 x 7/8 SAE flat stainless steel |
1 |
|
|
15 |
999-0496
|
Nut M8-1.25 nylon insert lock stainless steel |
4 |
|
|
16 |
175-2288
|
Lug nut |
6 |
|
|
17a |
175-2098
|
Foam tire assembly with 3 holes |
2 |
(standard) |
|
17b |
175-2383
|
Tire and rim assembly (black) |
2 |
(optional) |
|
18 |
175-2092
|
Isolator bracket |
2 |
|
|
19a |
375-4568
|
Transaxle assembly with park lock |
1 |
(includes 20-23) |
|
19b |
475-4159
|
TRANSAXLE ASSY, W/O PARK LOCK |
1 |
|
|
20 |
375-2498
|
Transaxle motor kit |
1 |
(includes 21) |
|
21 |
375-1143
|
Carbon brush kit |
1 |
|
|
22 |
175-2091
|
Transaxle isolator |
2 |
|
|
23 |
375-4569
|
Transaxle brake |
1 |
(models with park lock) |
|
24 |
575-0329
|
INDUCTOR, 12.7MMID [156 IMP AT 25MHZ] (Tennant Industrial) |
1 |
|
|
