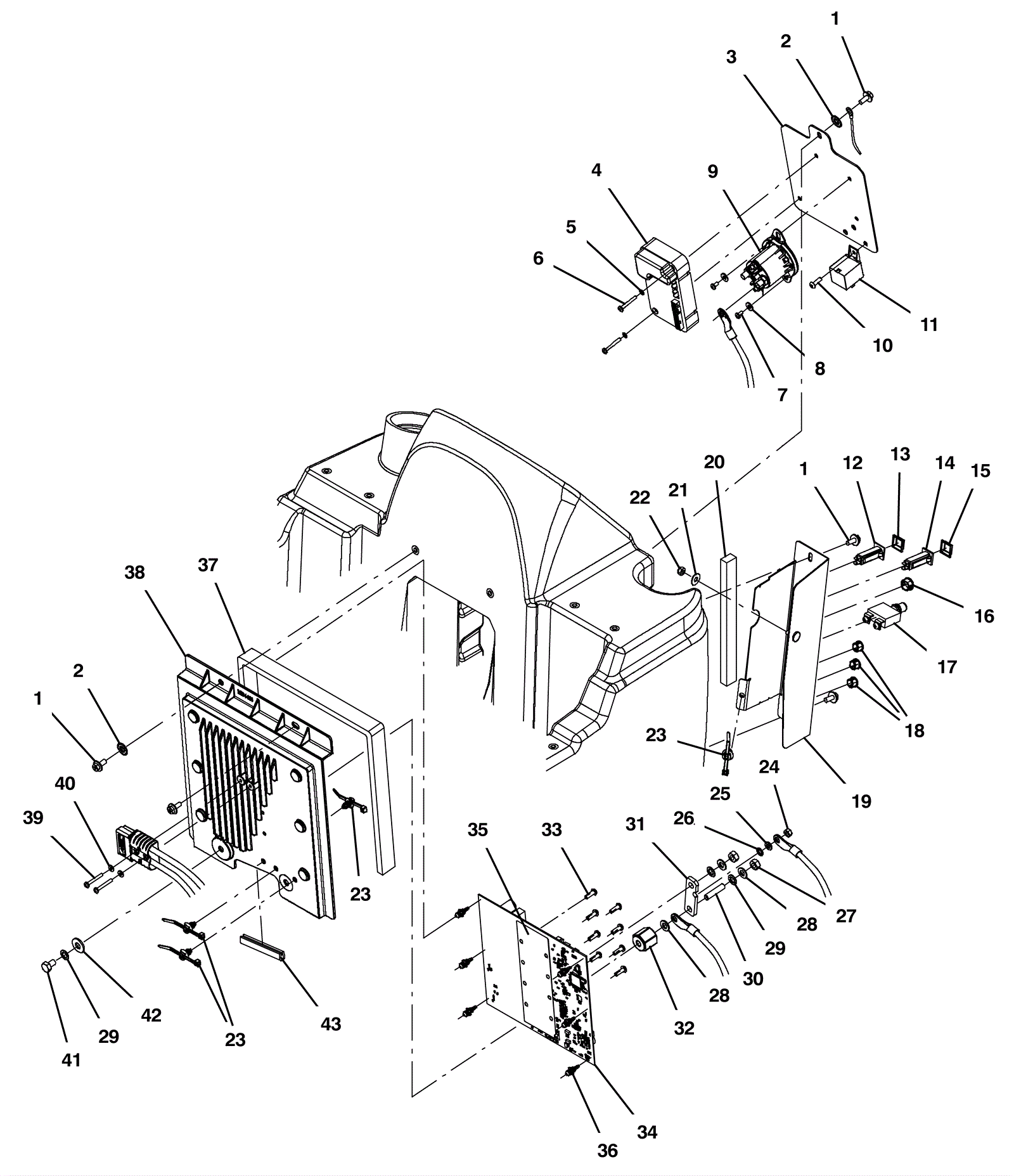

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
999-1383
|
Screw M6-1 x 16mm hex head stainless steel |
3 |
|
|
2 |
275-0288
|
Washer 1/4 internal-external lock |
2 |
|
|
3 |
375-4552
|
Control bracket weldment |
1 |
|
|
4 |
375-4553
|
Drive controller kit |
1 |
(requires Tennant True service or an authorized Tennant service provider) |
|
5 |
999-1083
|
Washer #8 internal star lock stainless steel |
2 |
|
|
6 |
999-1672
|
Screw M4-.7 x 30mm pan head phillips stainless steel |
2 |
|
|
7 |
175-3370
|
Screw M4-.7 x 8mm pan head stainless steel |
2 |
|
|
8 |
999-0998
|
Washer #10 flat stainless steel |
2 |
|
|
9 |
375-4558
|
36V relay |
1 |
|
|
10 |
999-1403
|
Screw M8 x 16mm torx head |
1 |
|
|
11 |
375-4554
|
36V relay |
1 |
|
|
12 |
275-5483
|
2.5amp circuit breaker |
1 |
|
|
13 |
275-2596
|
Circuit breaker boot (Tennant Industrial) |
1 |
|
|
14 |
275-9986
|
10amp circuit breaker (Tennant Industrial) |
1 |
|
|
15 |
275-2596
|
Circuit breaker boot (Tennant Industrial) |
1 |
|
|
16 |
275-7026
|
Plug (Tennant Industrial) |
1 |
|
|
17 |
175-0843
|
40amp circuitbreaker |
1 |
|
|
18 |
375-4555
|
Double D hole plug |
3 |
|
|
19 |
375-4556
|
Circuit breaker bracket |
1 |
|
|
20 |
375-4557
|
Gasket |
1 |
|
|
21 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
1 |
|
|
22 |
999-0497
|
Nut M6-1 nylon insert lock stainless steel |
1 |
|
|
23 |
275-5197
|
Fir tree clip |
3 |
|
|
24 |
275-5479
|
Nut M6 x 1 (Tennant Industrial) |
1 |
|
|
25 |
999-0016
|
Washer 1/4 flat plain finish |
1 |
|
|
26 |
175-4544
|
Washer M6 locking |
1 |
|
|
27 |
275-5476
|
Nut M8 x 1.25 hex brass (Tennant Industrial) |
2 |
|
|
28 |
275-5475
|
Washer M8-.4 x 1.6mm brass |
3 |
|
|
29 |
999-1053
|
Washer 5/16 internal star lock stainless steel |
3 |
|
|
30 |
175-4271
|
Screw M8 x 35mm set |
1 |
|
|
31 |
375-0181
|
Fuse |
1 |
|
|
32 |
375-0176
|
Insulated stand-off |
1 |
|
|
33 |
999-1403
|
Screw M8 x 16mm torx head |
8 |
|
|
34a |
375-4561
|
Circuitboard kit |
1 |
(includes 34b-34c) |
|
34b |
275-1425
|
Static ground strap (Tennant Industrial) |
1 |
|
|
34c |
375-1351
|
USB to USB mini cable |
1 |
|
|
35 |
375-3236
|
Control board pad |
1 |
|
|
36 |
275-5465
|
Standoff |
6 |
|
|
37 |
375-3237
|
Circuit board cover gasket |
1 |
|
|
38 |
375-4562
|
Circuitboard heatsink |
1 |
|
|
39 |
999-1672
|
Screw M4-.7 x 30mm pan head phillips stainless steel |
2 |
|
|
40 |
999-1158
|
Washer #6 flat stainless steel |
2 |
|
|
41 |
999-1415
|
Screw M8-1.25 x 12mm hex head stainless steel |
1 |
|
|
42 |
999-0355
|
Washer 3/8 x 7/8 SAE flat stainless steel |
1 |
|
|
43 |
275-8203
|
Molding |
1 |
|
|
