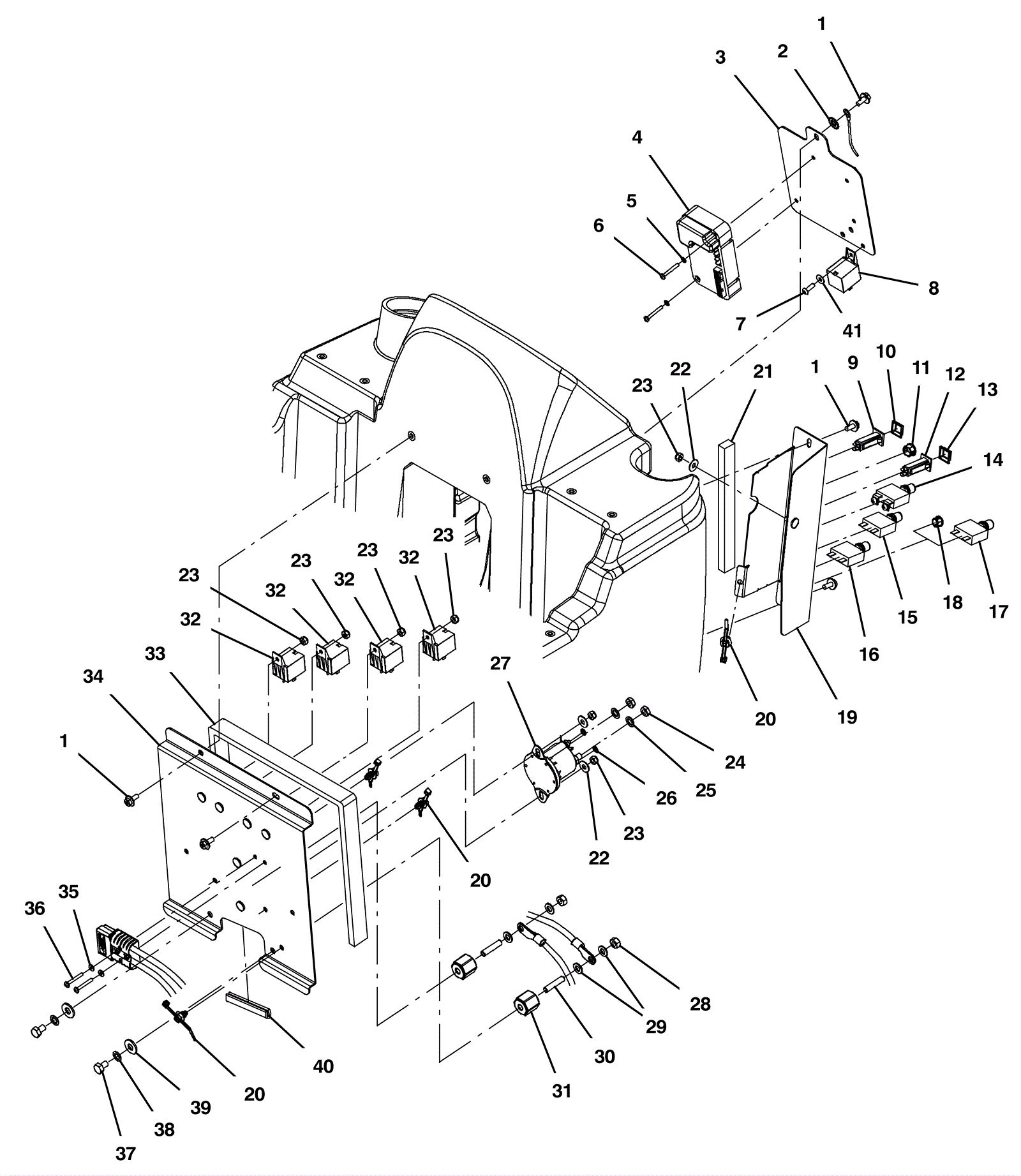

T600E Standard Electrical Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-1383 Screw M6-1 x 16mm hex head stainless steel $3.96 3 ships same day
2 275-0288 Washer 1/4 internal-external lock $4.36 2 ships same day
3 375-4552 Control bracket weldment $56.10 1 usually ships 10-16 days
4 375-4553 Drive controller kit $454.52 1 (requires Tennant True service or an authorized Tennant service provider) usually ships 10-16 days
5 999-1083 Washer #8 internal star lock stainless steel $0.99 2 ships same day
6 999-1672 Screw M4-.7 x 30mm pan head phillips stainless steel $0.99 2 usually ships 12-18 days
7 999-0521 Screw M4-.7 x 12mm pan head phillips zinc $2.31 1 ships same day
8 375-4554 36V relay $34.32 1 ships same day
9 275-5483 2.5amp circuit breaker $14.08 1 usually ships 10-16 days
10 275-2596 Circuit breaker boot (Tennant Industrial) $20.84 1 ships same day
11 275-7026 Plug (Tennant Industrial) $2.50 1 usually ships 1-5 days
12 275-9986 10amp circuit breaker (Tennant Industrial) $8.34 1 ships same day
13 275-2596 Circuit breaker boot (Tennant Industrial) $20.84 1 ships same day
14 175-0843 40amp circuitbreaker $34.54 1 ships same day
15 991-1631 25amp circuit breaker $15.10 1 ships same day
16 175-2151 30amp circuit breaker $16.61 1 ships same day
17 175-2151 30amp circuit breaker $16.61 1 ships same day
18 375-4555 Double D hole plug $1.32 1 usually ships 10-16 days
19 375-4556 Circuit breaker bracket $173.58 5 usually ships 10-16 days
20 275-5197 Fir tree clip $2.38 4 usually ships 10-16 days
21 375-4557 Gasket $3.83 1 usually ships 10-16 days
22 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 3 ships same day
23 999-0497 Nut M6-1 nylon insert lock stainless steel $0.99 7 ships same day
24 999-0763 Nut 5/16-24 hex jam plain finish $0.99 2 ships same day
25 999-0406 Washer 5/16 internal star lock zinc plated $0.99 2 ships same day
26 999-0089 Washer #10 internal star lock zinc plated $0.99 2 ships same day
27 375-4558 36V relay $65.23 1 usually ships 10-16 days
28 275-5476 Nut M8 x 1.25 hex brass (Tennant Industrial) $5.67 2 usually ships 10-16 days
29 275-5475 Washer M8-.4 x 1.6mm brass $3.30 4 usually ships 1-5 days
30 175-4271 Screw M8 x 35mm set $5.28 1 usually ships 10-16 days
31 375-0176 Insulated stand-off $14.19 2 usually ships 1-5 days
32 375-4554 36V relay $34.32 4 ships same day
33 375-3237 Circuit board cover gasket $57.31 1 usually ships 10-16 days
34 375-4560 Plate weldment $65.56 1 usually ships 10-16 days
35 999-1158 Washer #6 flat stainless steel $0.99 2 ships same day
36 999-1672 Screw M4-.7 x 30mm pan head phillips stainless steel $0.99 2 usually ships 12-18 days
37 999-1415 Screw M8-1.25 x 12mm hex head stainless steel $1.52 2 ships same day
38 999-1053 Washer 5/16 internal star lock stainless steel $0.99 2 ships same day
39 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 2 ships same day
40 275-8203 Molding $48.40 1 usually ships 1-5 days
41 999-0998 Washer #10 flat stainless steel $0.99 1 ships same day
