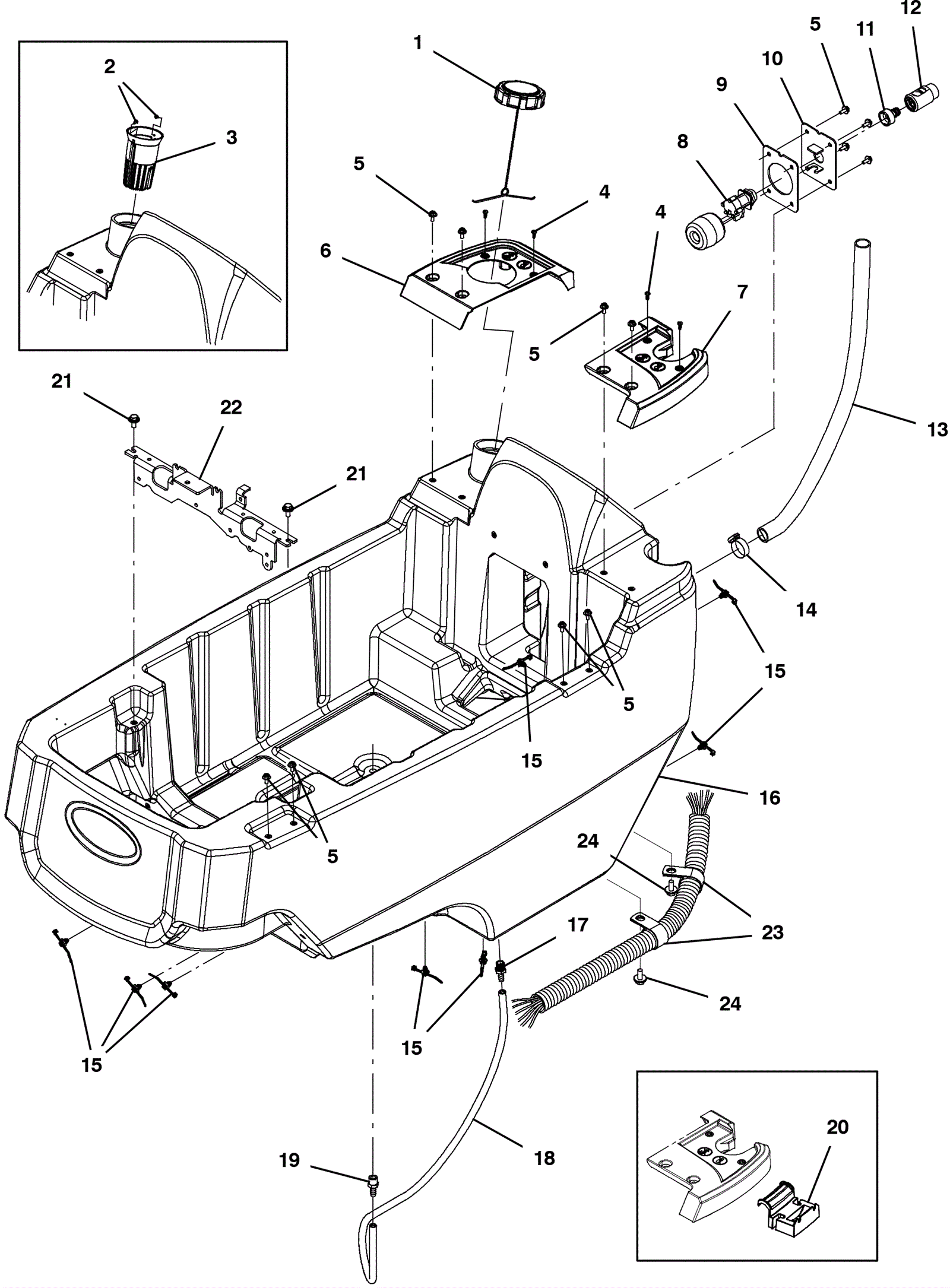

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
275-8185
|
Tank cap |
1 |
|
|
2 |
999-0434
|
Screw 6 x 3/8 pan head phillips |
2 |
|
|
3 |
375-4227
|
Solution fill strainer |
1 |
|
|
4 |
999-0531
|
Screw M5-.8 x 16mm pan head slotted zinc |
4 |
|
|
5 |
999-1383
|
Screw M6-1 x 16mm hex head stainless steel |
12 |
|
|
6 |
375-4544
|
Fill accessory tray |
1 |
|
|
7 |
375-4545
|
Drain accessory tray |
1 |
|
|
8 |
375-3434
|
Float valve |
1 |
(auto-fill) |
|
9 |
375-4546
|
Auto fill gasket bracket |
1 |
|
|
10a |
375-4551
|
Auto fill bracket weldment |
1 |
(auto-fill) |
|
10b |
375-4547
|
Fill cover bracket |
1 |
(standard fill) |
|
11 |
375-3432
|
Plastic male fitting |
1 |
(auto-fill) |
|
12 |
375-3431
|
Plastic female fitting |
1 |
(auto-fill) |
|
13 |
375-3222
|
Solution drain hose kit |
1 |
|
|
14 |
175-2254
|
Hose clamp |
1 |
|
|
15 |
275-5197
|
Fir tree clip |
7 |
|
|
16 |
375-4548
|
Solution tank |
1 |
|
|
17 |
375-4549
|
Plastic fitting |
1 |
|
|
18 |
375-0936
|
Clear PVC hose (Tennant Industrial) |
1 |
|
|
19 |
175-4808
|
Hose barb |
1 |
|
|
20 |
375-1366
|
Large rail hanger bracket (OBSOLETE) |
1 |
|
|
21 |
275-4736
|
Screw M8-1.25 x 20mm hex washer head stainless steel SEMS |
2 |
|
|
22 |
375-4550
|
Support bracket |
1 |
|
|
23 |
175-5314
|
P clamp (Tennant Industrial) |
2 |
|
|
24 |
275-4736
|
Screw M8-1.25 x 20mm hex washer head stainless steel SEMS |
2 |
|
|
KIT |
375-4647
|
Autofill parts kit |
1 |
(includes 5, 8-10a, 11-12) |
|
