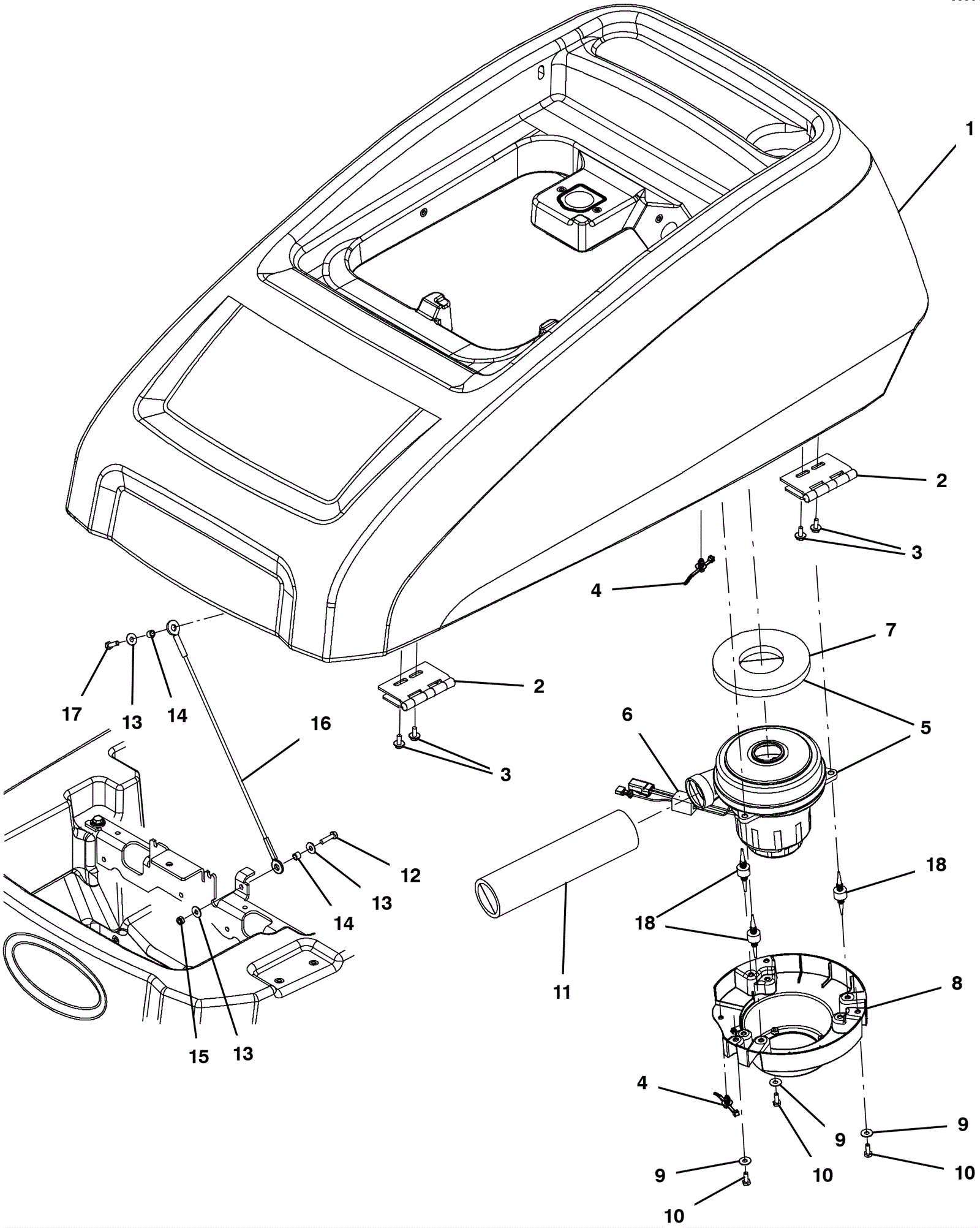

| # | Part | Description |
Req | Notes | Availability |
|---|
1a |
375-4526
|
Recovery tank with decals (T600) |
1 |
|
|
1b |
375-4527
|
Recovery tank with decals (T600e) |
1 |
|
|
2 |
375-3209
|
Hinge |
2 |
|
|
3 |
999-1383
|
Screw M6-1 x 16mm hex head stainless steel |
4 |
|
|
4 |
275-5197
|
Fir tree clip |
2 |
|
|
5a |
375-4528
|
Vacuum motor |
1 |
(includes 5b-7) |
|
5b |
275-7693
|
Carbon brush (pkg of 2) |
1 |
|
|
6 |
375-4508
|
Inductor |
1 |
|
|
7 |
175-6085
|
Gasket |
1 |
|
|
8 |
375-4529
|
Vacuum motor mount |
1 |
|
|
9 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
3 |
|
|
10 |
999-0507
|
Bolt M6-1 x 16mm hex head full thread plain finish |
3 |
|
|
11 |
275-1319
|
Vacuum motor muffler (Tennant Industrial) |
1 |
|
|
12 |
999-0518
|
Bolt M6-1 x 25mm hex head full thread zinc |
1 |
|
|
13 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
3 |
|
|
14 |
175-0152
|
Spacer |
2 |
|
|
15 |
999-0497
|
Nut M6-1 nylon insert lock stainless steel |
1 |
|
|
16 |
375-4531
|
Cable |
1 |
|
|
17 |
999-1312
|
Screw M6-1 x 20mm hex head stainless steel |
1 |
|
|
18 |
275-9897
|
Isolator |
3 |
|
|
