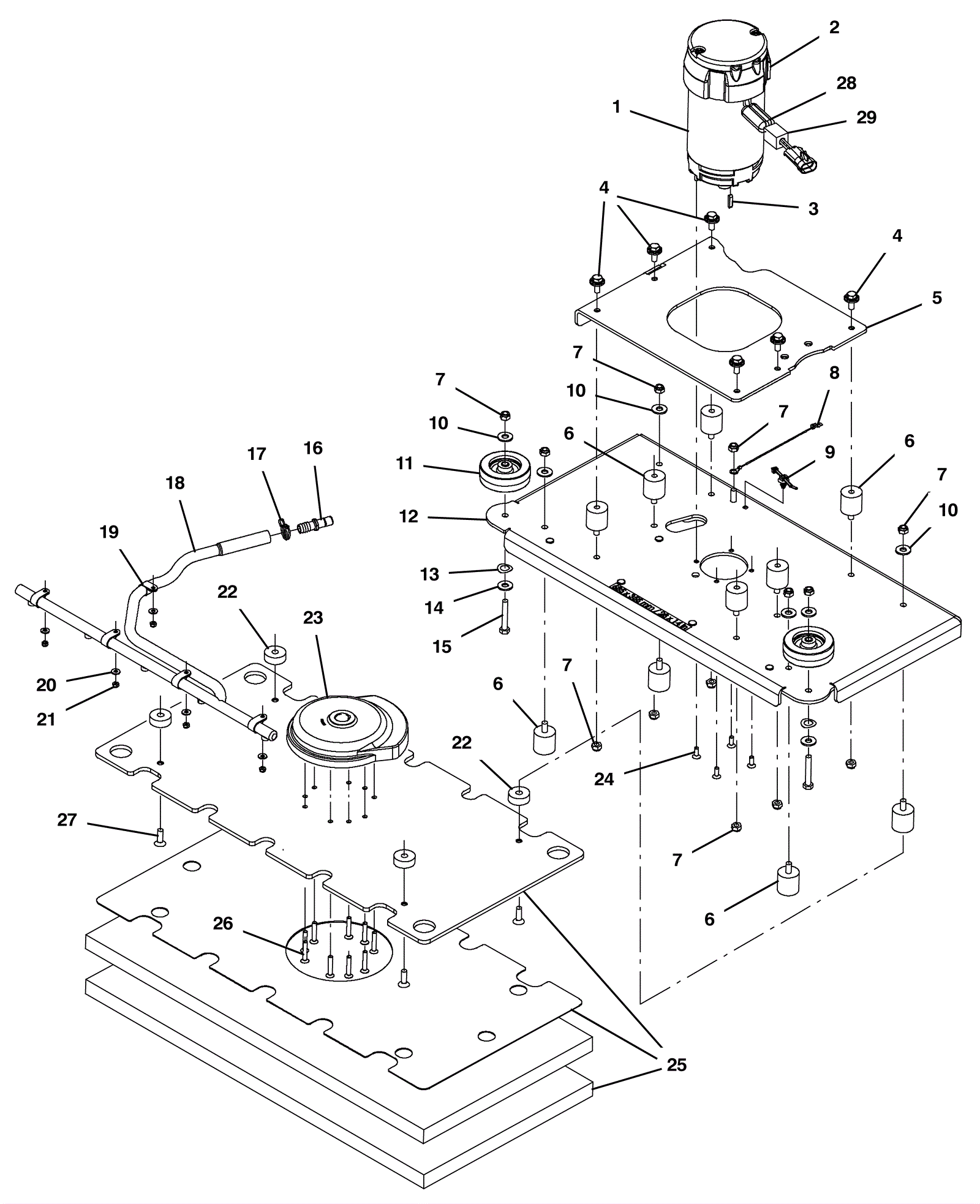

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
375-4523
|
36V brush motor |
1 |
(includes 2) |
|
2 |
275-0762
|
Motor brush kit (pkg of 4) |
1 |
|
|
3 |
375-3199
|
Square key |
1 |
|
|
4 |
275-4736
|
Screw M8-1.25 x 20mm hex washer head stainless steel SEMS |
6 |
|
|
5 |
375-3200
|
Weldment bracket |
1 |
|
|
6 |
375-0102
|
Neoprene isolator |
10 |
|
|
7 |
999-0496
|
Nut M8-1.25 nylon insert lock stainless steel |
12 |
|
|
8 |
375-0108
|
Electrical harness |
1 |
|
|
9 |
275-5197
|
Fir tree clip |
1 |
|
|
10 |
999-0355
|
Washer 3/8 x 7/8 SAE flat stainless steel |
6 |
|
|
11 |
175-0117
|
Guide wheel with bushing |
2 |
|
|
12 |
375-4524
|
Brush housing weldment |
1 |
|
|
13 |
999-6674
|
Washer 5/16 x 1 1/2 wave stainless steel |
2 |
|
|
14 |
999-0355
|
Washer 3/8 x 7/8 SAE flat stainless steel |
2 |
|
|
15 |
999-1297
|
Screw M8 x 50mm hex head stainless steel |
2 |
|
|
16 |
375-0055
|
Straight plastic fitting |
1 |
|
|
17 |
375-0291
|
Hose clamp |
1 |
|
|
18 |
375-4525
|
Spray bar manifold |
1 |
|
|
19 |
175-0988
|
P clamp |
5 |
|
|
20 |
999-0998
|
Washer #10 flat stainless steel |
5 |
|
|
21 |
999-0740
|
Nut M5-.8 hex stainless steel |
5 |
|
|
22 |
375-3203
|
Spacer |
4 |
|
|
23 |
375-3204
|
Eccentric drive kit |
1 |
|
|
24 |
999-0773
|
Screw M6-1 x 16mm flat socket head stainless steel |
4 |
|
|
25 |
375-3205
|
Pad driver kit for Orbital heads |
1 |
|
|
26 |
375-0288
|
Screw M6-1 x 35mm flat socket |
9 |
|
|
27 |
999-1622
|
Screw M8-1.25 x 25mm flat head phillips stainless steel |
4 |
|
|
28 |
375-4507
|
Split case inductor |
2 |
|
|
29 |
375-4508
|
Inductor |
1 |
|
|
