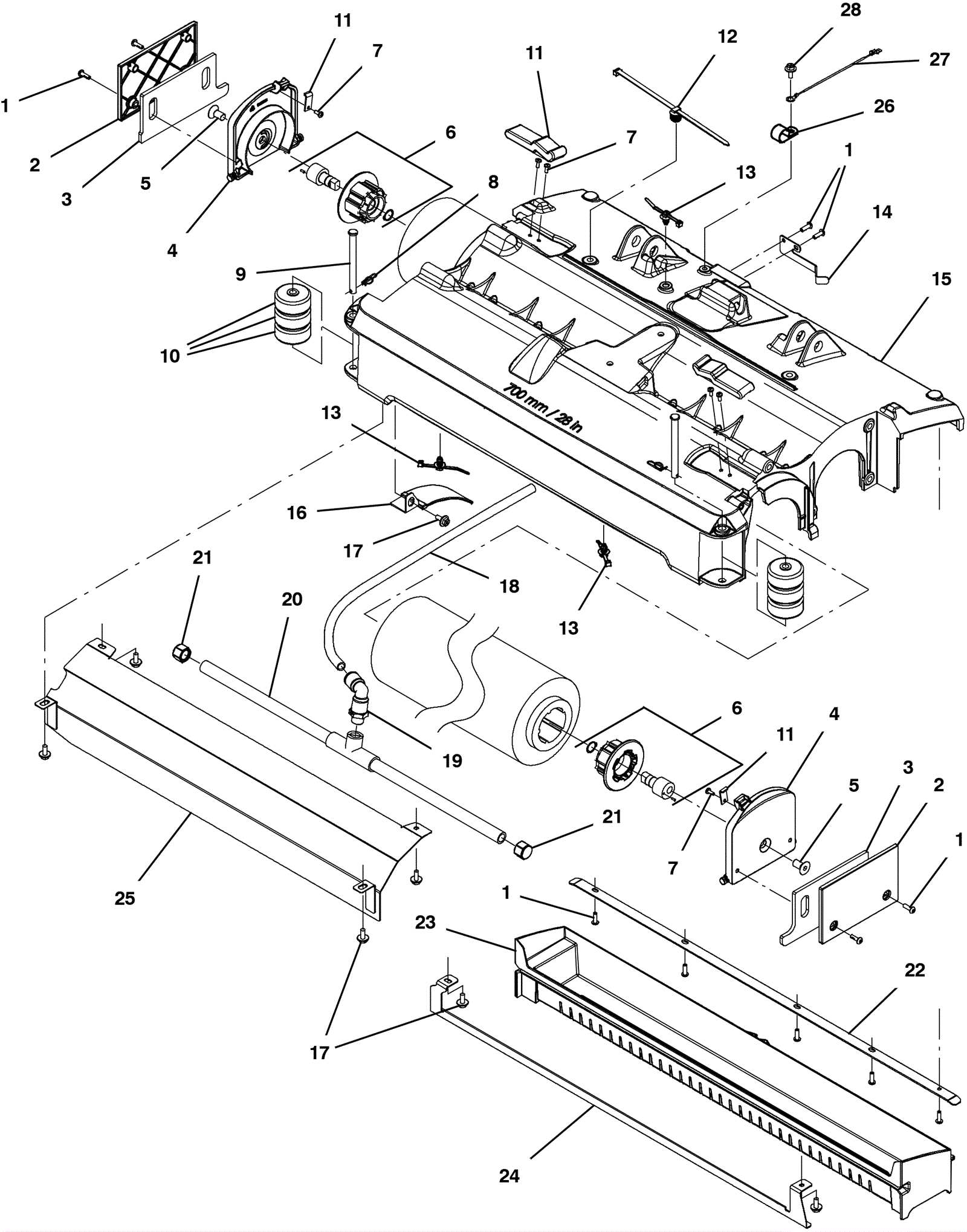

T600E Scrub Head Assembly - Cylindrical

#PartDescriptionPriceReqNotesAvailability
1 999-1403 Screw M8 x 16mm torx head $2.90 11 ships same day
2 375-3150 Skirt cover $10.45 2 usually ships 10-16 days
3 375-3158 Cylindrical side skirt $25.63 2 ships same day
4 375-2495 Idler door assembly $208.12 2 (includes 5-6) usually ships 10-16 days
5 175-2863 Screw M10-1.5 x 20mm flat head stainless steel nylok $4.88 1 usually ships 10-16 days
6 175-2475 Idler plug assembly $109.56 1 usually ships 10-16 days
7 999-0534 Screw M4-.7 x 10mm pan head slotted zinc $0.99 6 ships same day
8 375-0071 Cotter hair pin $1.85 2 ships same day
9 275-3031 PIN, CLEVIS, 0.37D X 4.00L (Tennant Industrial) $12.84 2 usually ships 10-16 days
10 991-2013 Wheel $8.70 6 ships same day
11 275-5187 Latch with keeper $15.95 2 ships same day
12 375-3160 Cable tie (Tennant Industrial) $9.17 1 usually ships 10-16 days
13 275-5197 Fir tree clip $2.11 3 usually ships 10-16 days
14 375-3161 Debris tray spring bracket $22.00 1 usually ships 10-16 days
15a 375-4509 28 inch cylindrical housing $575.96 1 usually ships 10-16 days
15b 375-4510 32 inch cylindrical housing $582.01 1 usually ships 10-16 days
16 275-1497 Water deflector $49.06 1 usually ships 10-16 days
17 999-1383 Screw M6-1 x 16mm hex head stainless steel $3.96 7 ships same day
18 375-0204 5 foot solution hose $105.82 1 ships same day
19 375-0135 90 degree elbow $33.44 1 usually ships 10-16 days
20 275-9424 28 inch spray bar tube assembly $78.54 1 usually ships 10-16 days
21 275-1505 Cap fitting $8.47 2 ships same day
22a 375-3167 Debris tray bracket $17.82 1 (28 inch) usually ships 10-16 days
22b 375-4511 Debris tray bracket $27.94 1 (32 inch) usually ships 10-16 days
23a 375-3164 Debris tray $45.76 1 (28 inch) ships same day
23b 375-4512 32 inch debris tray $73.59 1 (32 inch) usually ships 10-16 days
24a 375-3165 Slide tray bracket $63.47 1 (28 inch) usually ships 10-16 days
24b 375-4513 32 inch debris tray slide bracket $69.52 1 (32 inch) usually ships 10-16 days
25a 375-3166 Brush panel wrap $230.34 1 (28 inch) usually ships 10-16 days
25b 375-4514 32 inch brush panel weldment $204.93 1 (32 inch) usually ships 10-16 days
26 275-0559 P clamp $4.88 1 usually ships 10-16 days
27 375-0108 Electrical harness $6.49 1 usually ships 10-16 days
28 999-1383 Screw M6-1 x 16mm hex head stainless steel $3.96 1 ships same day
