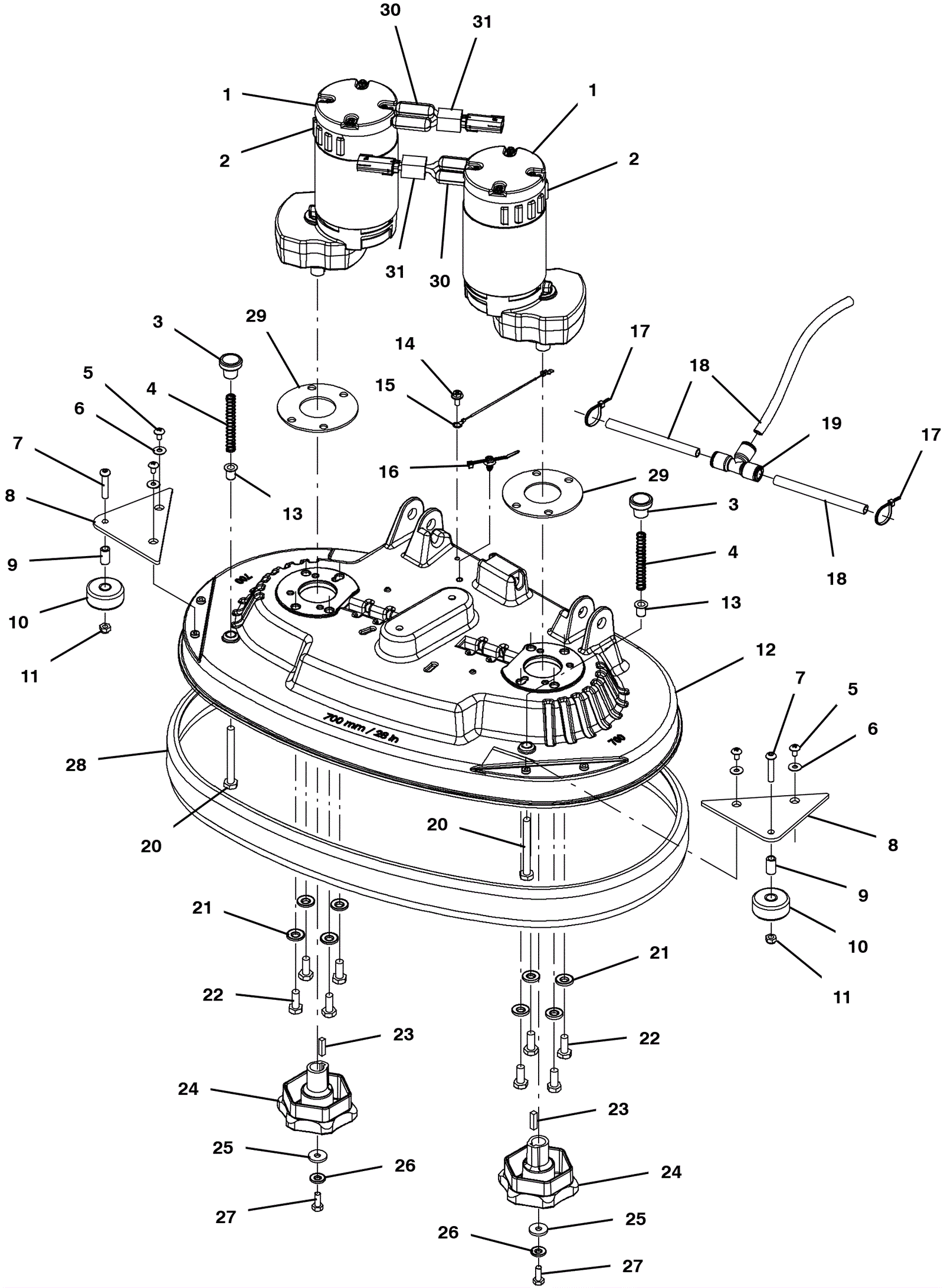

Scrub Head Assembly - Disk

#PartDescription ReqNotesAvailability
1a 175-2225 36V .75HP brush motor assembly 2 (T600e) (includes 2)
1b 375-4500 36V 1HP brush motor 2 (T600) (includes 2)
2 275-5341 Carbon brush (pkg of 4) 1
3 375-3139 Plastic round knob 2
4 175-7018 Compression spring 2
5 375-3140 Screw M6-1 x 12mm truss head phillips stainless steel 4
6 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 4
7 999-0769 Screw M8-1.25 x 40mm button head socket stainless steel 2
8 375-3141 Roller bracket 2
9 175-2182 Sleeve 2
10 175-2245 Wheel 2
11 999-0496 Nut M8-1.25 nylon insert lock stainless steel 2
12a 375-4503 28 inch disc housing with decal 1 (includes 13)
12b 375-9824 32 inch disc housing bumper 1 (includes 13)
12c 375-2492 36 inch disc housing with decal (Tennant Industrial) 1 (includes 13)
13 375-9372 Flange bushing 10mm x 12mm x 17mm 2
14 999-1383 Screw M6-1 x 16mm hex head stainless steel 1
15 375-0108 Electrical harness 1
16 275-5197 Fir tree clip 1
17 175-7795 Cable tie 2
18a 375-0204 5 foot solution hose 1 (OEM)
18b 991-1405 Vinyl tubing 1/2 x 3/4 (sold by the inch) 1 (NON-OEM)(order qty 60 inches)
19 375-3144 Plastic tee fitting 1
20 999-1408 Screw M10-1.5 x 90mm hex head stainless steel 2
21 175-2305 Washer 8
22 999-1372 Bolt M10-1.5 x 25mm hex head stainless steel 8
23 175-5356 Square keyway 2
24 675-9509 Brush drive hub kit 2
25 175-7920 Washer M8 flat stainless steel 2
26 999-1407 Washer 5/16 belleville 2
27 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel 2
28a 375-3146 28 inch (700mm) bumper 1
28b 375-9824 32 inch disc housing bumper 1
28c 375-4504 36 inch head bumper skirt 1
29 375-2493 Motor spacer (rubber) 2
30 375-4507 Split case inductor 4
31 375-4508 Inductor 2
