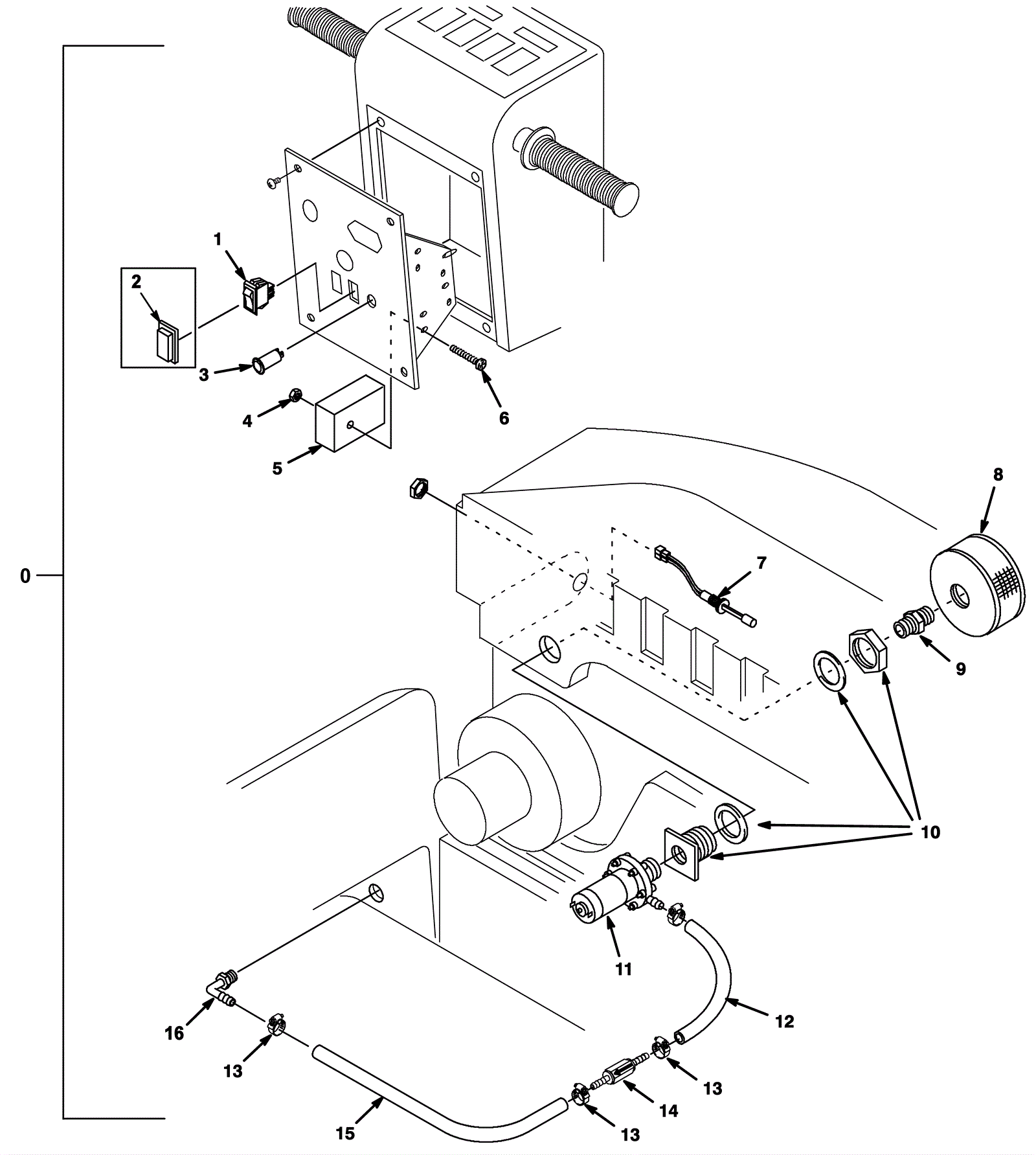

| # | Part | Description |
Req | Notes | Availability |
|---|
0 |
175-3722
|
ES kit (OBSOLETE) |
1 |
(includes 1-16) |
|
1 |
175-2847
|
Rocker switch |
1 |
|
|
2 |
175-2848
|
Rocker switch splash guard |
1 |
(from 09.2001 to 06.2006) |
|
3 |
175-2849
|
Indicator light |
1 |
|
|
4a |
999-0495
|
Nut M5-.8 nylon insert lock zinc plated |
1 |
(from 09.2001 to 06.2006) |
|
4b |
999-0740
|
Nut M5-.8 hex stainless steel |
1 |
(after 06.2006) |
|
5 |
175-2845
|
Relay |
1 |
|
|
6 |
999-1085
|
Screw M5-.8 x 30mm pan head phillips zinc plated |
1 |
|
|
7 |
175-2835
|
Liquid level switch with nut |
1 |
|
|
8 |
175-2836
|
Screen filter (OBSOLETE) |
1 |
|
|
9 |
175-2837
|
3/4 inch nipple fitting (OBSOLETE) |
1 |
|
|
10 |
175-2838
|
Bulkhead fitting 3/4 inch (OBSOLETE) |
1 |
|
|
11 |
175-2840
|
24V solution pump |
1 |
|
|
12a |
175-6318
|
Hose 3/8 x 8 inch |
1 |
(from 09.2001 to 06.2006) |
|
12b |
175-4885
|
Hose 3/8 x 8 |
1 |
(after 06.2006) |
|
13 |
175-6081
|
Hose clamp |
4 |
|
|
14 |
175-2842
|
Check valve |
1 |
|
|
15a |
175-6318
|
Hose 3/8 x 8 inch |
1 |
(from 09.2001 to 06.2006) |
|
15b |
175-8777
|
Hose 3/8 x 1 1/4 foot |
1 |
(after 06.2006) |
|
16 |
175-2844
|
90 degree elbow fitting |
1 |
|
|
N/S |
175-3724
|
Extended scrub wire harness (OBSOLETE) |
1 |
|
|
N/S |
175-2839
|
Filter decal (OBSOLETE) |
1 |
|
|
