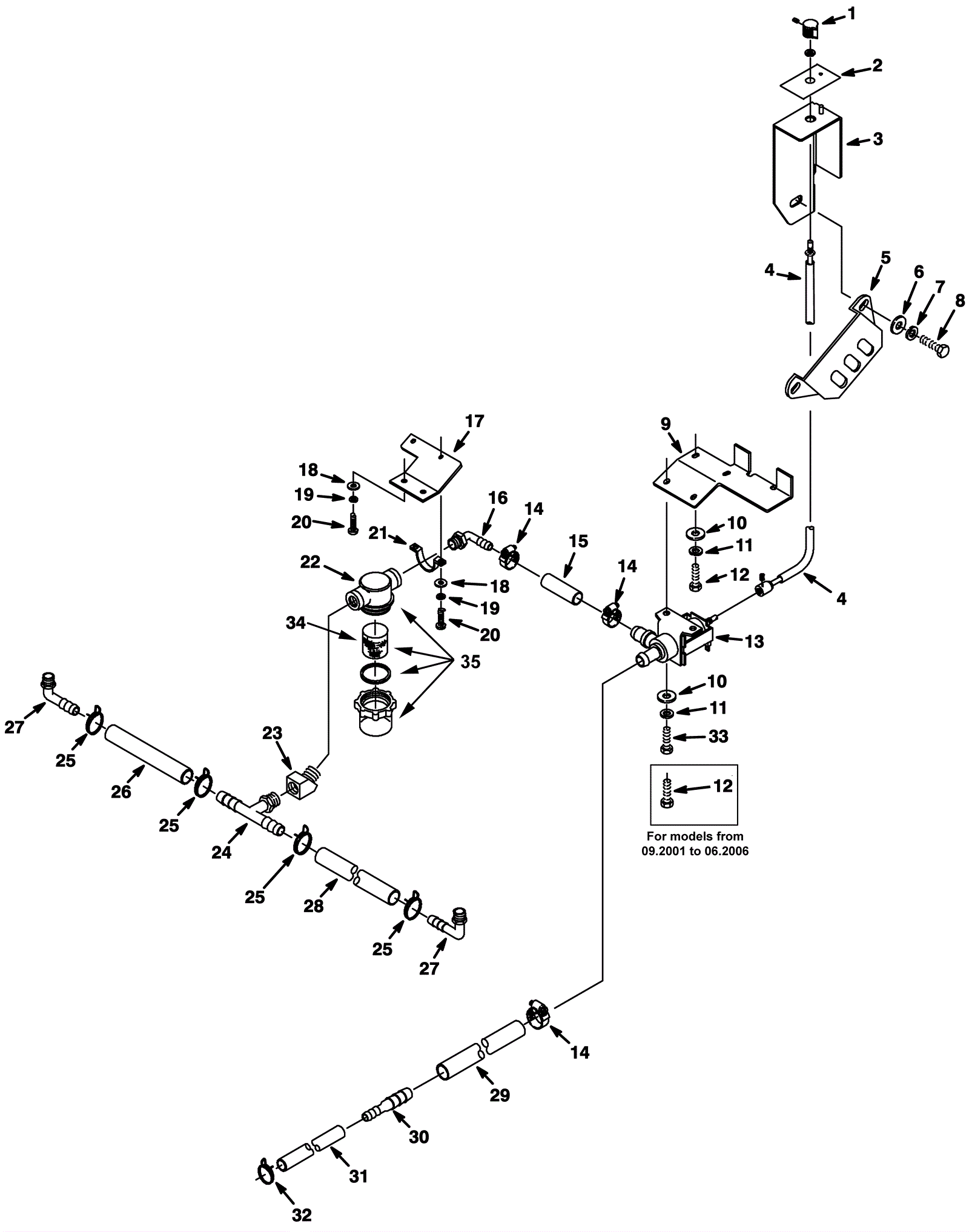

Solution Assembly

#PartDescription ReqNotesAvailability
1 175-9027 Solution control knob 1
2 175-3680 Solution control decal 1
3 175-3681 Solution control bracket 1
4 175-3682 Sol. flow control cable (OBSOLETE) 1
5 175-2728 Locking plate 1
6 999-0024 Washer 5/16 flat stainless steel 2
7 999-0553 Washer 5/16 medium split lock stainless steel 2
8 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel 2
9 175-3683 Solenoid mount bracket (OBSOLETE) 1
10 999-0016 Washer 1/4 flat plain finish 4
11 999-0632 Washer 1/4 split lock stainless steel 4
12 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish 2
13a 175-3684 24V solenoid valve 1
13b 175-8698 Solenoid valve rebuild kit (internal parts) 1 (after 06.2006)
14 175-6081 Hose clamp 3
15 275-7538 Hose 1/2 x 3/4 1
16 175-3685 90 degree elbow fitting 1
17 175-3686 Filter bowl bracket 1
18 175-3687 Washer m5 x 1 flat 4
19 999-9132 Washer M5 split lock stainless steel 4
20 175-3689 Screw M5-.8 x 12mm truss head phillips stainless steel 4
21 175-3690 U clamp 1
22a 175-9025 In-line screen filter assembly 1 (OEM)
22b 991-8582 Mesh inline filter 1 (NON-OEM)
23 175-3691 Brass fitting 1
24 175-3692 Tee fitting 1
25 375-0291 Hose clamp 4
26 275-7539 Hose 1/2 x 3/4 1
27 175-3685 90 degree elbow fitting 2
28 275-7540 Hose 1/2 x 3/4 inch 1
29 275-7541 Hose 1/2 x 3/4 inch 1
30 175-6956 Plastic strainer fitting 1
31 175-8976 Hose 3/8 x 5/8 1
32 175-3671 Hose clamp 1
33a 999-0807 Screw M6-1 x 10mm flat head phillips 2 (after 06.2006)
33b 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish 2 (before 06.2006)
34a 175-5866 Mesh filter screen 1 (OEM) (after 06.2006)
34b 991-8569 Mesh filter screen stainless steel 1 (NON-OEM)
35a 175-9025 In-line screen filter assembly 1 (OEM) (from 09.2001 to 06.2006)
35b 991-8582 Mesh inline filter 1 (NON-OEM)
35c 175-5867 Filter gasket 1
35d 175-5868 Short clear filter bowl 1 (OEM)
35e 991-8575 Short bowl (clear) 1 (NON-OEM)
