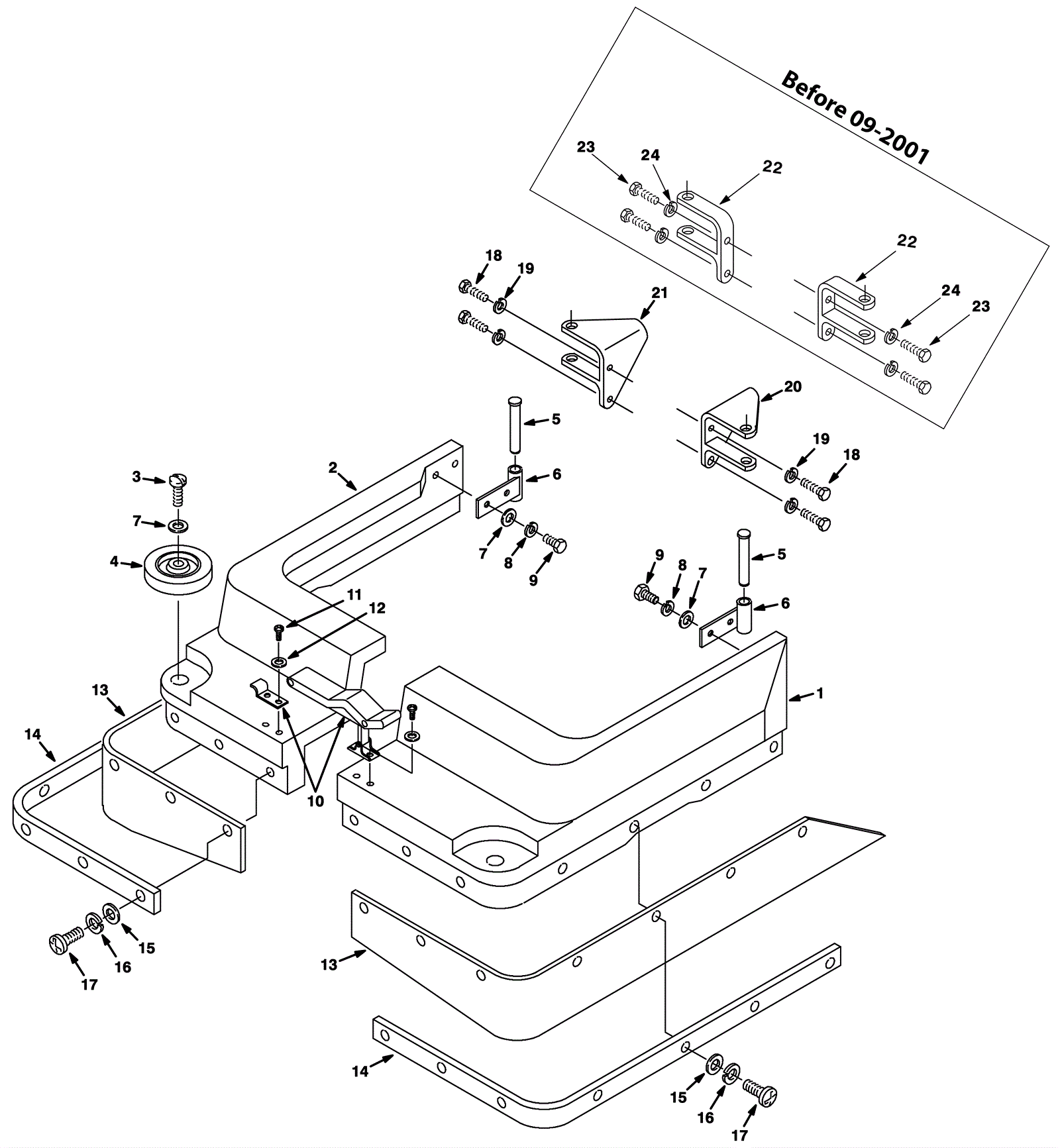

Skirt Assembly

#PartDescription ReqNotesAvailability
1 175-3675 Operator LH skirt green 1
2 175-3676 Operator RH skirt green 1
3 999-0742 Screw M8-1.25 x 40mm pan head phillips zinc 2
4 175-0117 Guide wheel with bushing 2
5 175-2795 Skirt pin (OBSOLETE) 2
6 175-3049 Skirt mount bracket 2
7 999-0024 Washer 5/16 flat stainless steel 6
8 999-0553 Washer 5/16 medium split lock stainless steel 4
9 999-0900 Screw M8-1.25 x 18mm hex head stainless steel 4
10a 375-7802 Latch 1 (OEM)
10b 991-8561 Rubber draw latch with keeper 1 (NON-OEM)
11 999-0530 Screw M4-.7 x 8mm pan head slotted zinc 4
12 999-1083 Washer #8 internal star lock stainless steel 4
13 175-3677 Splash guard (OBSOLETE) 2
14 175-3678 Splash guard strap (OBSOLETE) 2
15 999-0393 Washer 3/16 flat aluminum 14
16 999-1026 Washer #10 internal lock stainless steel 14
17 999-0901 Screw M5-.8 x 16mm pan head phillips stainless steel 14
18 175-3679 Screw M8 x 1 1/4 x 20 4
19 999-0553 Washer 5/16 medium split lock stainless steel 4
20 175-3050 Skirt mount bracket lefthand 1
21 175-3051 Skirt mount bracket righthand 1
22 N/A Not available 4 (before 09-2001) (Skirt mount bracket)
23 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish 4 (before 09-2001)
24 999-0632 Washer 1/4 split lock stainless steel 1 (before 09-2001)
