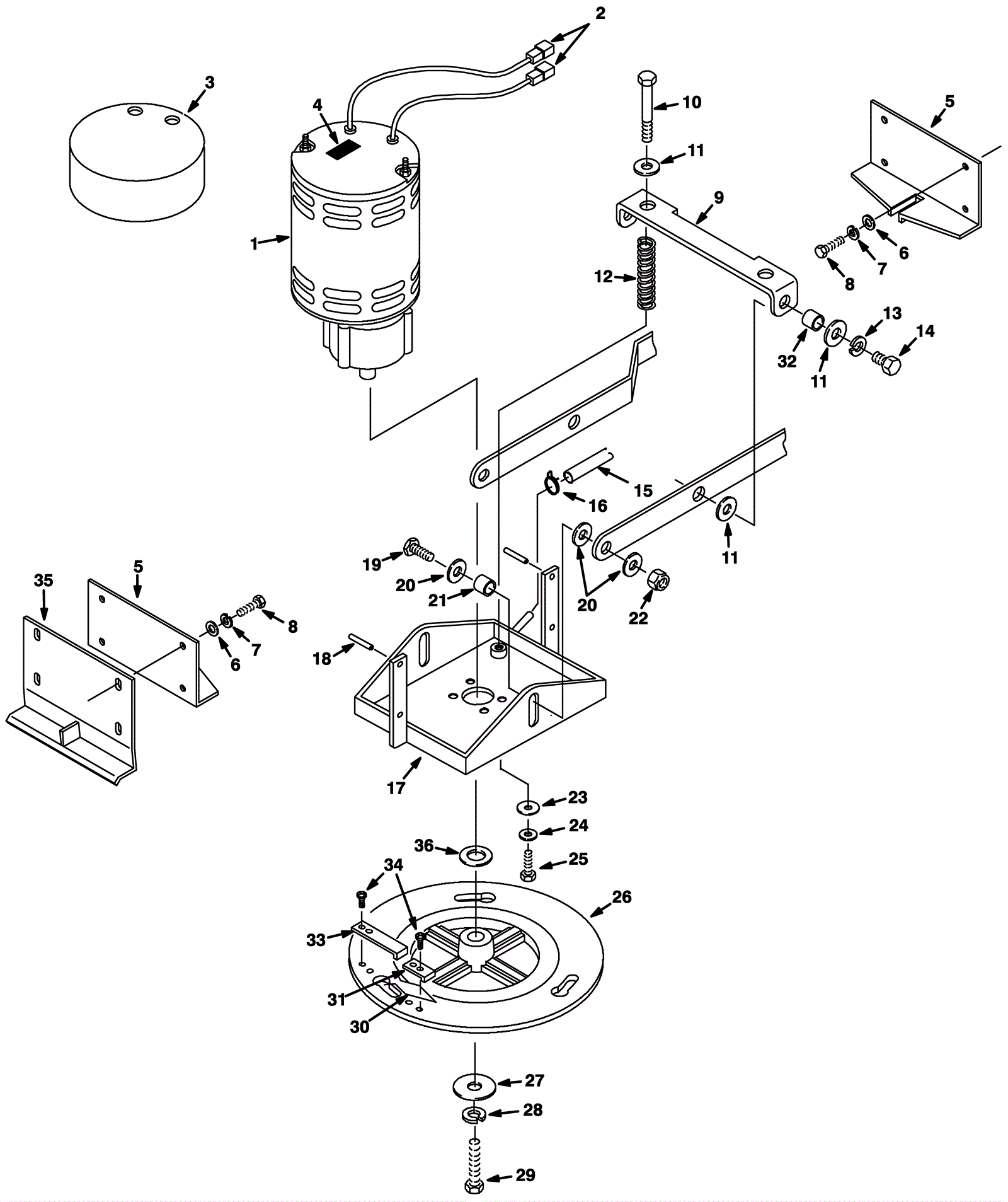

Brush Drive Assembly

#PartDescription ReqNotesAvailability
1a 175-2599 24V brush motor with gearbox 1 (includes 1b-1e)
1b 175-3028 Brush card assembly 1
1c 175-2600 Carbon brush 1
1d 175-2601 Square keyway 1
1e 175-7927 Gearbox 1
2a 175-3029 Terminal ring 1/4 inch 1
2b 175-3032 Positive terminal ring 1
3 175-2598 Brush motor cover 1
4 175-0287 Acrylic foam tape 1 inch x 1 foot 1
5 175-3033 Guide plate 2
6 999-1119 Washer 1/4 x 1 fender zinc plated 8
7 999-0632 Washer 1/4 split lock stainless steel 8
8 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish 8
9 175-3659 Spring bracket 1
10 175-3668 Screw 3/8 - 16 x 3 1/2 (OBSOLETE) 2
11 999-0617 Washer 3/8 x 1 flat stainless steel 6
12 175-3669 Brush pressure spring 2
13 999-0034 Washer 3/8 split lock plain finish 2
14 999-0493 Bolt 3/8-16 x 3/4 hex head stainless steel 2
15a 175-3670 Tubing 3/4 inchIDx21 inch (OBSOLETE) 1 (from 09.2001 to 03.2005)
15b 175-8976 Hose 3/8 x 5/8 1 (after 03.2005)
16 175-3671 Hose clamp 1
17 175-3672 Brush motor mount bracket (OBSOLETE) 1
18 175-2606 Roll pin 4
19 999-0558 Bolt 1/2-13 x 1 1/2 hex head stainless steel 2
20 999-0187 Washer 1/2 flat plain finish 6
21 175-3023 Bushing 2
22 999-1208 Nut 1/2-13 nylon insert lock stainless steel 2
23 999-0617 Washer 3/8 x 1 flat stainless steel 4
24 999-0034 Washer 3/8 split lock plain finish 4
25a 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated 4 (from 09.2001 to 03.2005)
25b 999-0562 Bolt 3/8-16 x 1 hex head stainless steel 4 (after 03.2005)
26 175-2609 Drive plate 1
27 999-0617 Washer 3/8 x 1 flat stainless steel 1
28 999-0553 Washer 5/16 medium split lock stainless steel 1
29 999-0424 Bolt 5/16-18 x 1 hex head stainless steel 1
30 175-2612 Spring clip 1
31 175-2611 Brush plate clamp 1
32 175-2725 Bushing 2
33 175-3034 Driver release stop 1
34 999-1114 Screw 10-16 x 3/8 pan head phillips hi-lo self tapping zinc 4
35 175-3037 Front lip skirt (OBSOLETE) 1
36 999-0187 Washer 1/2 flat plain finish 1
