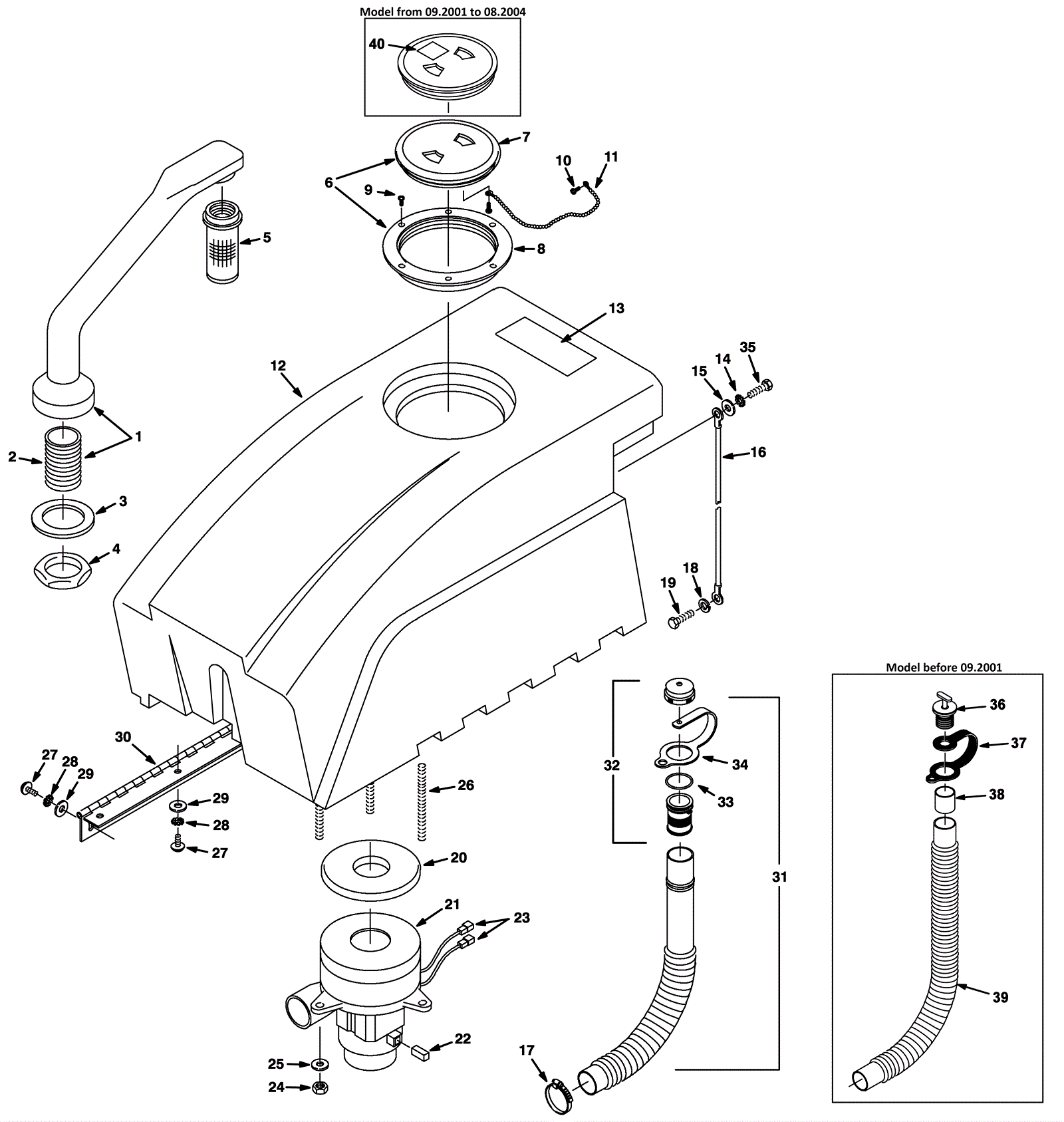

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
175-2998
|
Standpipe with nipple assembly |
1 |
(includes item 2) |
|
2 |
175-2639
|
1 1/2 inch nipple fitting |
1 |
|
|
3 |
175-2640
|
Gasket |
1 |
|
|
4 |
175-2907
|
Nut 1 1/2 flanged hex |
1 |
|
|
5 |
675-9887
|
Shut-off float |
1 |
|
|
6 |
164-0202
|
Tank lid assembly |
1 |
(includes 7-8) |
|
7a |
164-0044
|
Tank lid (clear) |
1 |
(OEM) |
|
7b |
991-1928
|
Tank lid (clear) (OBSOLETE) |
1 |
(NON-OEM) |
|
8 |
164-0205
|
Tank lid ring (clear) |
1 |
|
|
9 |
999-1111
|
Screw 6-32 x 3/4 pan head phillips sheet metal |
6 |
|
|
10 |
999-0434
|
Screw 6 x 3/8 pan head phillips |
2 |
|
|
11 |
164-0204
|
Recovery tank lid chain |
1 |
|
|
12a |
175-0022
|
Recovery tank assembly |
1 |
(includes 13) (after 09.2004) |
|
12b |
175-3000
|
Recovery tank green |
1 |
(before 09.2004) |
|
13 |
175-2868
|
Warning decal |
1 |
(after 06.2006) |
|
14 |
999-1024
|
Washer 1/4 external tooth lock stainless steel |
1 |
|
|
15 |
999-0016
|
Washer 1/4 flat plain finish |
1 |
|
|
16 |
175-2651
|
Support cable |
1 |
|
|
17 |
175-2057
|
Hose clamp |
1 |
|
|
18 |
999-0553
|
Washer 5/16 medium split lock stainless steel |
1 |
|
|
19 |
999-1133
|
Bolt M8-1.25 x 20mm hex head full thread plain |
1 |
|
|
20 |
675-9893
|
Vacuum motor gasket |
1 |
|
|
21 |
275-5736
|
24V 3 stage vacuum motor |
1 |
(includes 22) |
|
22 |
175-2658
|
Carbon brush (pkg of 2) |
1 |
|
|
23 |
175-0923
|
Male terminal |
2 |
|
|
24 |
999-0497
|
Nut M6-1 nylon insert lock stainless steel |
3 |
|
|
25 |
999-0016
|
Washer 1/4 flat plain finish |
3 |
|
|
26 |
175-3641
|
Stud |
3 |
|
|
27 |
999-1041
|
Screw M6-1 x 12mm pan head phillips stainless steel |
11 |
|
|
28 |
999-1024
|
Washer 1/4 external tooth lock stainless steel |
11 |
|
|
29 |
999-0016
|
Washer 1/4 flat plain finish |
11 |
|
|
30 |
175-3001
|
Recovery tank hinge |
1 |
|
|
31 |
175-1153
|
Drain hose assembly |
1 |
(includes 32) (after 06.2006) |
|
32a |
175-4214
|
Drain plug assembly |
1 |
(OEM) (includes 33-34) (after 06.2006) |
|
32b |
991-3028
|
Drain plug assembly |
1 |
(NON-OEM) |
|
33 |
175-5804
|
O-ring |
1 |
(after 09.2001) |
|
34 |
175-4214
|
Drain plug assembly |
1 |
(after 09.2001) |
|
35 |
999-1041
|
Screw M6-1 x 12mm pan head phillips stainless steel |
1 |
|
|
36 |
175-2653
|
1 1/2 inch expansion plug |
2 |
(before 09.2001) |
|
37 |
175-2654
|
Drain hose strap |
1 |
(before 09.2001) |
|
38 |
175-2655
|
Drain hose sleeve |
1 |
(before 09.2001) |
|
39 |
175-2656
|
Drain hose |
1 |
(before 09.2001) |
|
40 |
175-2649
|
Do not spray decal |
1 |
(from 09.2001 to 08.2004) |
|
