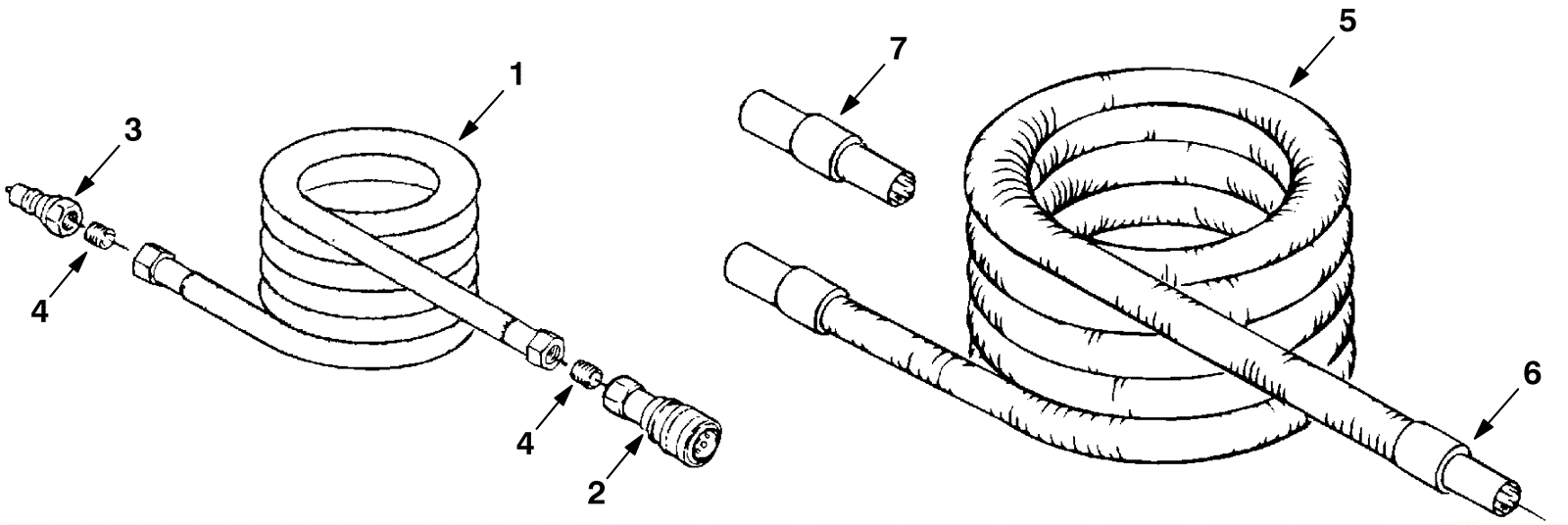

| # | Part | Description |
Req | Notes | Availability |
|---|
1a |
775-0278
|
15 foot solution hose assembly |
1 |
(includes 2-4) |
|
1b |
175-3587
|
25 foot solution hose assembly |
1 |
(includes 2-4) |
|
1c |
175-3588
|
50 foot solution hose assembly |
1 |
(includes 2-4) |
|
2 |
991-8158
|
1/4 inch BH2-60 female coupler (mate to QD40) |
1 |
|
|
3 |
991-8150
|
1/4 inch BH2-61 male nipple (mate to QD80) |
1 |
|
|
4 |
175-6244
|
Nipple |
2 |
|
|
5a |
175-3589
|
15 foot vacuum hose assembly |
1 |
(includes 6 and 7) |
|
5b |
175-3590
|
25 foot vacuum hose assembly |
1 |
(includes 6 and 7) |
|
5c |
175-3591
|
50 foot vacuum hose assembly |
1 |
(includes 6 and 7) |
|
6 |
175-6269
|
1 1/2 inch hose cuff (OBSOLETE) |
2 |
|
|
7 |
175-8758
|
Connector |
1 |
|
|
N/S |
175-2646
|
Hose bag with draw string |
1 |
|
|
