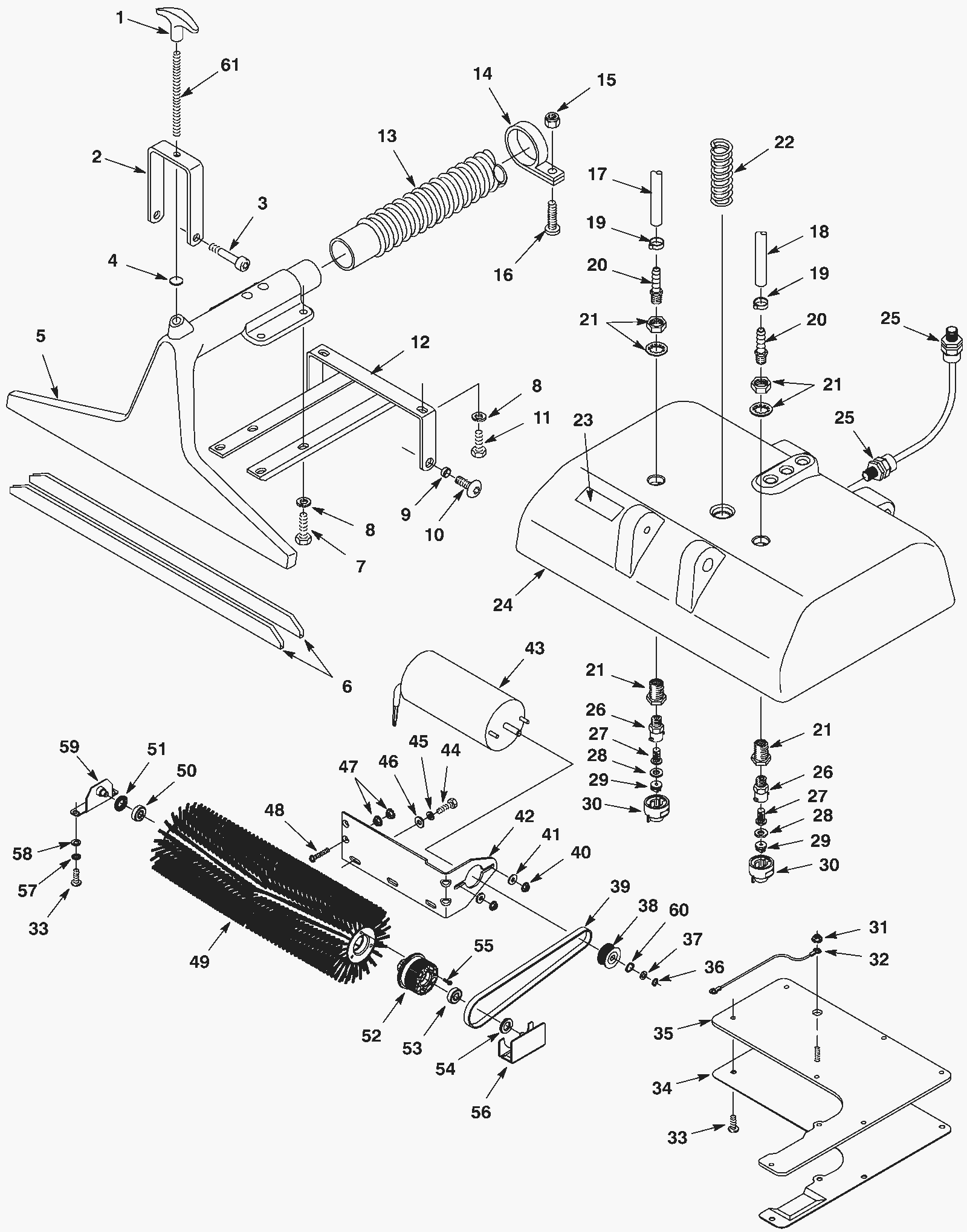

POWEREAGLE 1016 Brush Base Assembly - Model 1002564

#PartDescriptionPriceReqNotesAvailability
1 175-6113 Height adjustment knob $9.57 1 usually ships 10-16 days
2 175-6152 Height adjustment bracket $40.59 1 usually ships 10-16 days
3 175-6156 Screw 3/8 x 3/4 shoulder $5.50 2 usually ships 10-16 days
4 175-6112 Spacer $4.75 1 usually ships 10-16 days
5a 175-6148 16 inch pick-up tool (black) $696.74 1 (1016) ships same day
5b 175-6151 20 inch pick-up tool (black) $527.78 1 (1020) usually ships 10-16 days
6a 175-6146 16 inch pick-up shoe plate stainless steel $25.96 2 (1016) ships same day
6b 175-6147 20 inch pick-up shoe plate stainless steel $25.96 2 (1020) ships same day
7 999-0424 Bolt 5/16-18 x 1 hex head stainless steel $0.99 4 ships same day
8 999-0553 Washer 5/16 medium split lock stainless steel $0.99 6 ships same day
9 175-6154 Spacer $5.50 2 usually ships 10-16 days
10 175-6187 Screw 3/8-16 x 3/4 inch truss head phillips $5.50 2 usually ships 1-5 days
11 999-0030 Bolt 5/16-18 x 5/8 hex head grade 5 zinc plated $1.14 2 ships same day
12 175-6153 Mounting bracket $82.83 1 usually ships 1-5 days
13a 175-6038 Vacuum hose with cuffs 1 1/2 x 53 inch $88.44 1 (OEM) usually ships 10-16 days
13b 991-5154 Vacuum hose with cuffs 1 1/2 x 53 inch $67.68 1 (NON-OEM) usually ships 9-14 days
14 175-3123 Cable tie $4.88 1 usually ships 1-5 days
15 999-0442 Nut 10-24 nylon insert lock stainless steel $1.76 1 ships same day
16 999-0009 Screw 10-24 x 1 round head slotted zinc plated $0.99 1 ships same day
17 175-4868 Hose 3/8 x 24 1/2 inch (gray) $15.29 1 usually ships 10-16 days
18 175-7292 Vinyl tubing 3/8 x 30 inch (gray) $17.27 1 usually ships 10-16 days
19 175-6032 Hose clamp $5.50 2 ships same day
20 175-2613 Straight brass fitting $5.50 2 usually ships 10-16 days
21 175-4814 Brass strainer fitting $29.81 2 ships same day
22 175-7224 Compression spring $8.47 1 usually ships 10-16 days
23 175-6108 Height adjustment decal $8.25 1 usually ships 10-16 days
24a 275-6110 16 inch (400mm) brush housing (gray) $189.20 1 (1016) usually ships 1-5 days
24b 175-3538 20 inch base (black) $298.54 1 (1020) usually ships 1-5 days
25 175-6232 Cord grip $9.79 2 usually ships 10-16 days
26 175-4192 Quick jet body $14.30 2 usually ships 10-16 days
27 175-4204 Check valve filter screen $17.16 2 ships same day
28 175-4193 Quick jet gasket $4.09 2 ships same day
29a 175-7242 T-jet fitting $18.37 2 (1016) usually ships 10-16 days
29b 175-7227 Spray jet tip $26.18 2 (1020) ships same day
30 175-4194 Quick jet cap (green) $6.71 2 ships same day
31 999-0356 Nut 10-24 lock stainless steel $0.99 1 ships same day
32 175-3578 Ground wire assembly $4.22 1 usually ships 10-16 days
33 175-3689 Screw M5-.8 x 12mm truss head phillips stainless steel $3.83 10 ships same day
34 175-7228 Brush base plate $119.90 1 usually ships 10-16 days
35 175-7229 Brush base plate gasket $26.29 1 usually ships 10-16 days
36 175-7230 Retaining clip $4.88 1 ships same day
37 999-1666 Washer M7 flat stainless steel $0.99 1 ships same day
38 175-7231 Motor pulley $10.34 1 usually ships 10-16 days
39 175-7243 Brush belt $37.84 1 usually ships 10-16 days
40 999-0239 Nut 10-32 k-lock zinc plated $0.99 2 ships same day
41 999-0006 Washer 3/16 flat zinc plated $0.99 2 ships same day
42 175-6438 Motor mounting bracket $29.59 1 usually ships 1-5 days
43 175-7232 120V 1/4HP brush motor $309.54 1 ships same day
44 999-1032 Screw 1/4-20 x 5/8 hex head stainless steel $0.99 2 ships same day
45 999-0632 Washer 1/4 split lock stainless steel $0.99 2 ships same day
46 999-0016 Washer 1/4 flat plain finish $0.99 2 ships same day
47 999-0356 Nut 10-24 lock stainless steel $0.99 2 ships same day
48 999-0421 Screw 10-24 x 1/2 flat head phillips zinc plated $0.99 1 ships same day
49a 175-7233 13 inch stiff scrub brush assembly - CYLINDRICAL $328.24 1 (1016) (includes 050 and 051) usually ships 10-16 days
49c 175-7235 17 inch stiff scrub brush assembly - CYLINDRICAL $275.11 1 (1020) (includes 050 and 051) usually ships 10-16 days
49d 175-7236 17 inch soft scrub brush assembly - CYLINDRICAL $356.62 1 (1020) (includes 050 and 051) usually ships 10-16 days
50a 175-0069 Brush bearing $18.70 1 (OEM) ships same day
50b 991-5125 Brush bearing $2.75 1 (NON-OEM) ships same day
51 175-6444 Brush seal $38.83 1 usually ships 10-16 days
52 175-7237 Brush pulley assembly $33.44 1 (includes 53 and 54) usually ships 10-16 days
53a 175-0069 Brush bearing $18.70 1 (OEM) ships same day
53b 991-5125 Brush bearing $2.75 1 (NON-OEM) ships same day
54 175-6444 Brush seal $38.83 1 usually ships 10-16 days
55 175-7238 Screw 6 x 1 pan head phillips stainless steel $4.09 3 usually ships 10-16 days
56 175-7239 Bracket $82.17 1 ships same day
57 999-1026 Washer #10 internal lock stainless steel $0.99 2 ships same day
58 999-0393 Washer 3/16 flat aluminum $0.99 2 ships same day
59 175-7240 Bracket $55.88 1 usually ships 10-16 days
60 175-7241 Washer 3/8 wave $4.88 1 ships same day
61 175-6114 Threaded stud $47.85 1 usually ships 10-16 days
