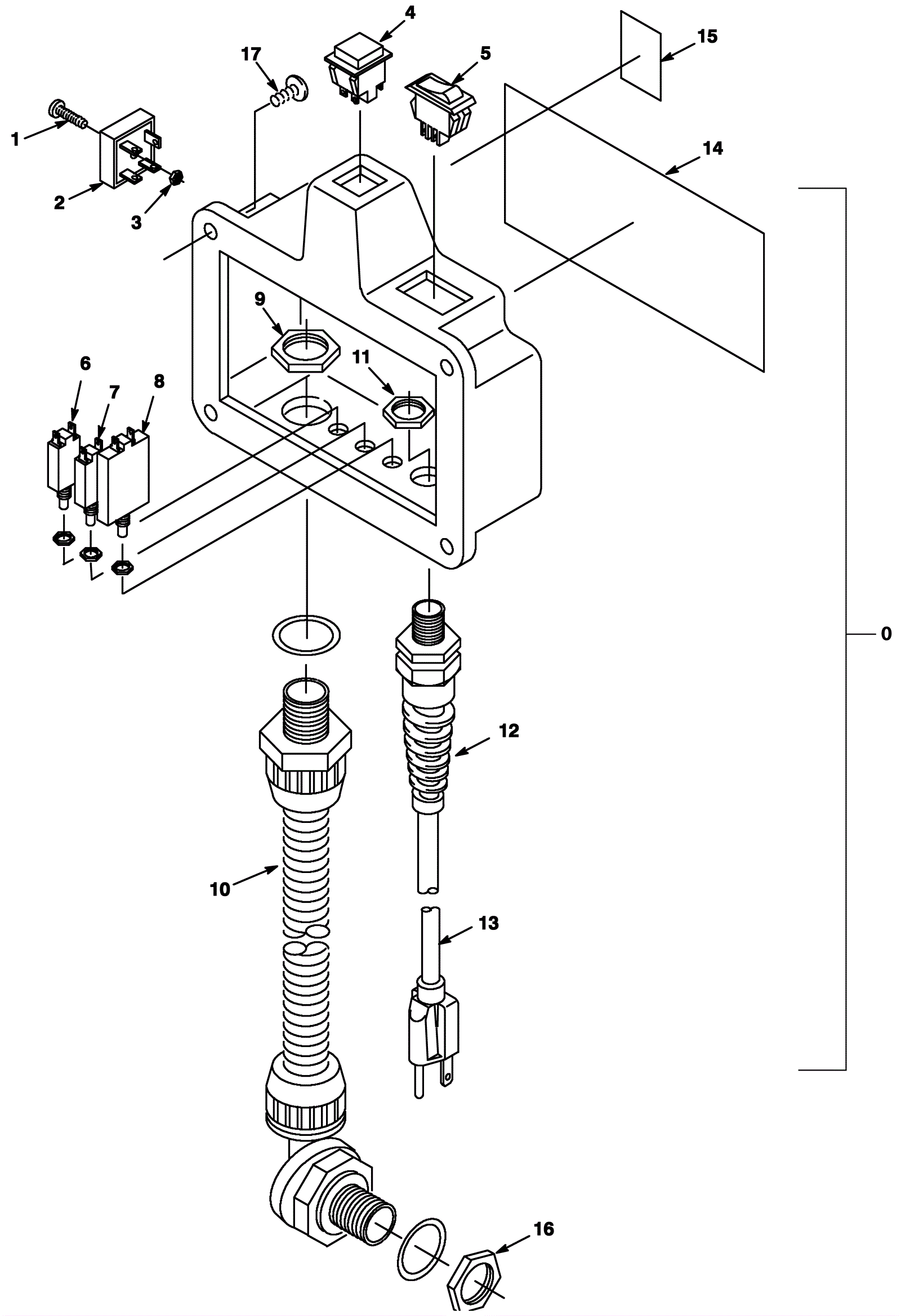

| # | Part | Description |
Req | Notes | Availability |
|---|
0 |
175-7222
|
120V control box assembly (black) |
1 |
(includes 1-15) |
|
2 |
175-6052
|
15amp rectifier |
1 |
|
|
3 |
999-0442
|
Nut 10-24 nylon insert lock stainless steel |
1 |
|
|
4 |
175-6057
|
Brush pulse switch |
1 |
Brush pressure switch |
|
5 |
175-0005
|
Rocker switch |
1 |
On/off switch |
|
6 |
175-6060
|
1.5amp circuit breaker |
1 |
(pump) |
|
7 |
275-5777
|
2amp circuit breaker |
1 |
(brush) |
|
8 |
175-6061
|
12amp circuit breaker |
1 |
(vacuum) |
|
9 |
175-6158
|
Nut 1/2 conduit |
1 |
|
|
10 |
175-3554
|
Wiring harness |
1 |
|
|
11 |
175-7223
|
Hex nut |
1 |
|
|
12 |
175-0001
|
Strain relief |
1 |
|
|
13a |
175-6064
|
14/3 pigtail cord 18 inch |
1 |
|
|
13b |
991-5002
|
16/3 extension cord 50 foot (orange) |
1 |
|
|
14 |
175-3906
|
Warning decal |
1 |
|
|
15 |
175-3562
|
On/off decal |
1 |
|
|
16 |
175-6158
|
Nut 1/2 conduit |
1 |
|
|
17 |
999-0557
|
Screw 1/4-20 x 1/2 truss head slotted stainless steel |
4 |
|
|
