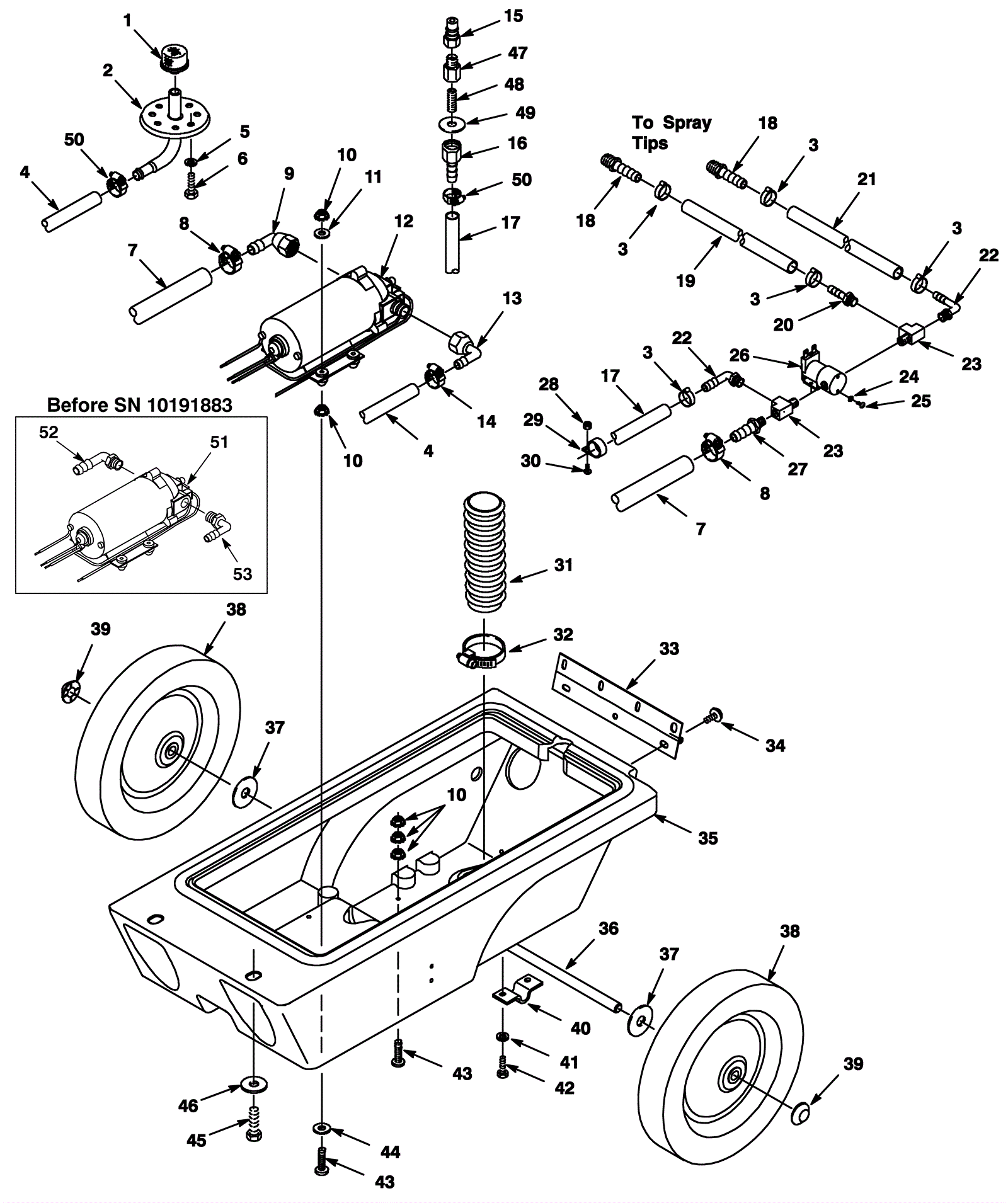

POWEREAGLE 1016 Chassis Assembly - Model 1002564

#PartDescriptionPriceReqNotesAvailability
1 175-6079 Mesh filter screen $17.60 1 ships same day
2 175-6021 Bladder plate fitting $56.87 1 usually ships 10-16 days
3 175-6032 Hose clamp $5.50 5 ships same day
4 175-7216 Hose 3/8 x 31 inch (gray) $19.14 1 usually ships 10-16 days
5 999-0632 Washer 1/4 split lock stainless steel $0.99 4 ships same day
6 999-1032 Screw 1/4-20 x 5/8 hex head stainless steel $0.99 4 ships same day
7 175-7221 24 inch hose (red) $48.29 1 usually ships 10-16 days
8 175-0199 Hose clamp $6.60 2 usually ships 10-16 days
9 275-9964 Fitting $5.50 1 usually ships 10-16 days
10 999-0356 Nut 10-24 lock stainless steel $0.99 11 ships same day
11 999-0006 Washer 3/16 flat zinc plated $0.99 4 ships same day
12a 275-9114 120V 100 PSI pump $514.69 1 usually ships 10-16 days
12b 175-0142 1/4 inch male terminal $4.88 1 usually ships 10-16 days
12c 175-0140 Terminal ring #10 $4.88 1 usually ships 10-16 days
13 175-9868 Swivel fitting 1/2 x 3/8 inch $5.50 1 usually ships 10-16 days
14 175-6081 Hose clamp $4.84 1 ships same day
15 991-8150 1/4 inch BH2-61 male nipple (mate to QD80) $10.94 1 ships same day
16 175-6022 Brass fitting $6.05 1 usually ships 10-16 days
17 275-9965 Hose $26.07 1 usually ships 1-5 days
18 175-2613 Straight brass fitting $5.50 2 usually ships 10-16 days
19 275-9966 Hose $13.64 1 usually ships 10-16 days
20 175-7218 Plastic straight fitting $4.88 1 ships same day
21 275-4905 Hose 3/8 x 22 1/2 inch (gray) $16.17 1 usually ships 10-16 days
22 175-2844 90 degree elbow fitting $5.50 2 usually ships 10-16 days
23 175-6029 Straight tee $14.08 2 ships same day
24 999-1083 Washer #8 internal star lock stainless steel $0.99 2 ships same day
25 999-0358 Screw 8-32 x 5/8 pan head phillips stainless steel $0.99 2 ships same day
26a 175-6025 Solution solenoid valve $225.50 1 (if solenoid valve is leaking try replacing the plunger with spring first before replacing entire solenoid valve) ships same day
26b 991-8598 Replacement plunger with spring for solenoid valve $19.47 1 ships same day
27 175-6030 Straight hosebarb $6.05 1 usually ships 10-16 days
28 999-0442 Nut 10-24 nylon insert lock stainless steel $1.76 1 ships same day
29 175-0988 P clamp $3.83 1 usually ships 10-16 days
30 999-1008 Screw 10-32 x 3/4 round head phillips stainless steel $0.99 1 ships same day
31 175-6090 Exhaust hose 2 x 26 inch (black) $10.45 1 ships same day
32 997-2000 Hose clamp $2.37 1 ships same day
33 175-6077 Tank hinge $13.20 1 ships same day
34 999-0557 Screw 1/4-20 x 1/2 truss head slotted stainless steel $0.99 7 ships same day
35a 275-9960 Chassis frame (OBSOLETE) $226.93 1 (1016) usually ships 1-5 days
35b 175-7220 Chassis frame (OBSOLETE) $246.07 1 (1020) usually ships 1-5 days
36 175-6095 Axle $24.97 1 usually ships 10-16 days
37 999-0187 Washer 1/2 flat plain finish $0.99 2 ships same day
38 175-6096 Wheel $78.43 2 ships same day
39 175-6097 Hub cap $5.50 2 ships same day
40 175-6098 Axle bracket $18.15 2 usually ships 10-16 days
41 999-0632 Washer 1/4 split lock stainless steel $0.99 4 ships same day
42 999-0633 Bolt 1/4-20 x 5/8 hex head stainless steel $0.99 4 ships same day
43 999-0002 Screw 10-24 x 1 1/2 pan head phillips zinc plated $0.99 5 usually ships 12-18 days
44 999-0006 Washer 3/16 flat zinc plated $0.99 4 ships same day
45 999-0649 Bolt 3/8-16 x 1 1/4 hex head stainless steel $7.25 2 ships same day
46 999-0617 Washer 3/8 x 1 flat stainless steel $1.82 2 ships same day
47 175-6014 Adapter $6.82 1 usually ships 1-5 days
48 175-6015 Nipple $6.05 1 usually ships 10-16 days
49 999-0187 Washer 1/2 flat plain finish $0.99 1 ships same day
50 175-6081 Hose clamp $4.84 2 ships same day
51a 175-6011 120V 100 PSI pump $485.65 1 (OEM) (before SN 10191883) usually ships 10-16 days
51b 175-3011 Female terminal $2.90 1 (before SN 10191883) usually ships 10-16 days
51c 175-0140 Terminal ring #10 $4.88 1 (before SN 10191883) usually ships 10-16 days
51d 991-8225 Shurflo pump $252.55 1 (NON-OEM) ships same day
52 175-6016 Elbow $6.05 1 (before SN 10191883) ships same day
53 175-6019 90 degree barbed elbow $7.70 1 (before SN 10191883) usually ships 10-16 days
