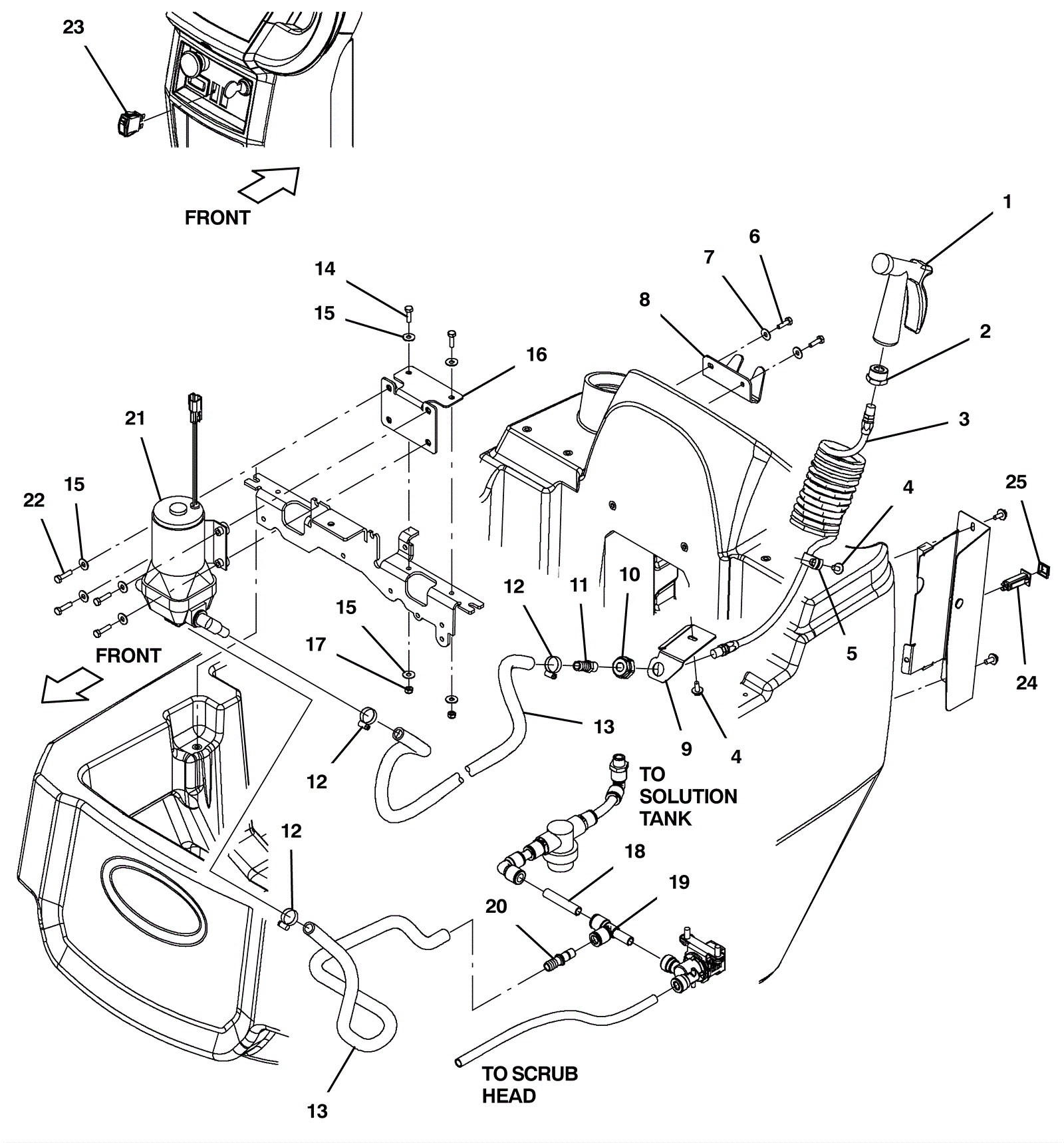

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
275-7874
|
Spray gun nozzle |
1 |
|
|
2 |
375-3347
|
Garden hose brass fitting |
1 |
|
|
3 |
175-8087
|
12 Foot black recoil hose |
1 |
|
|
4 |
999-1383
|
Screw M6-1 x 16mm hex head stainless steel |
2 |
|
|
5 |
175-2152
|
P clamp |
1 |
|
|
6 |
999-1312
|
Screw M6-1 x 20mm hex head stainless steel |
2 |
|
|
7 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
2 |
|
|
8 |
375-4642
|
Spray nozzle bracket |
1 |
|
|
9 |
375-4643
|
Hose bracket |
1 |
|
|
10 |
175-4814
|
Brass strainer fitting |
1 |
|
|
11 |
275-9954
|
Plastic strainer fitting (Tennant Industrial) |
1 |
|
|
12 |
175-6081
|
Hose clamp |
3 |
|
|
13 |
275-8340
|
HOSE, AFMKT, PVC, BRD, 0.50ID, 12FT, CLR (Tennant Industria |
1 |
|
|
14 |
999-1312
|
Screw M6-1 x 20mm hex head stainless steel |
2 |
|
|
15 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
8 |
|
|
16 |
475-1423
|
BRACKET WLDT, PUMP, SPRAY |
1 |
|
|
17 |
999-0497
|
Nut M6-1 nylon insert lock stainless steel |
2 |
|
|
18a |
375-0204
|
5 foot solution hose |
1 |
(OEM) |
|
18b |
991-1405
|
Vinyl tubing 1/2 x 3/4 (sold by the inch) |
1 |
(NON-OEM)(order qty 60 inches) |
|
19 |
375-0134
|
Plastic tee fitting |
1 |
|
|
20 |
375-0055
|
Straight plastic fitting |
1 |
(conventional model) |
|
21 |
275-7852
|
36V solution pump (Tennant Industrial) |
1 |
|
|
22 |
999-1087
|
Bolt M6-1 x 25mm hex head stainless steel |
2 |
|
|
23 |
275-4773
|
Rocker switch |
1 |
|
|
24 |
175-5969
|
15amp circuit breaker (Tennant Industrial) |
1 |
|
|
25 |
275-2596
|
Circuit breaker boot (Tennant Industrial) |
1 |
|
|
26 |
375-4232
|
Plastic fitting |
1 |
(ec-H2O model) |
|
27 |
375-0156
|
90 degree elbow |
2 |
(ec-H2O model) |
|
