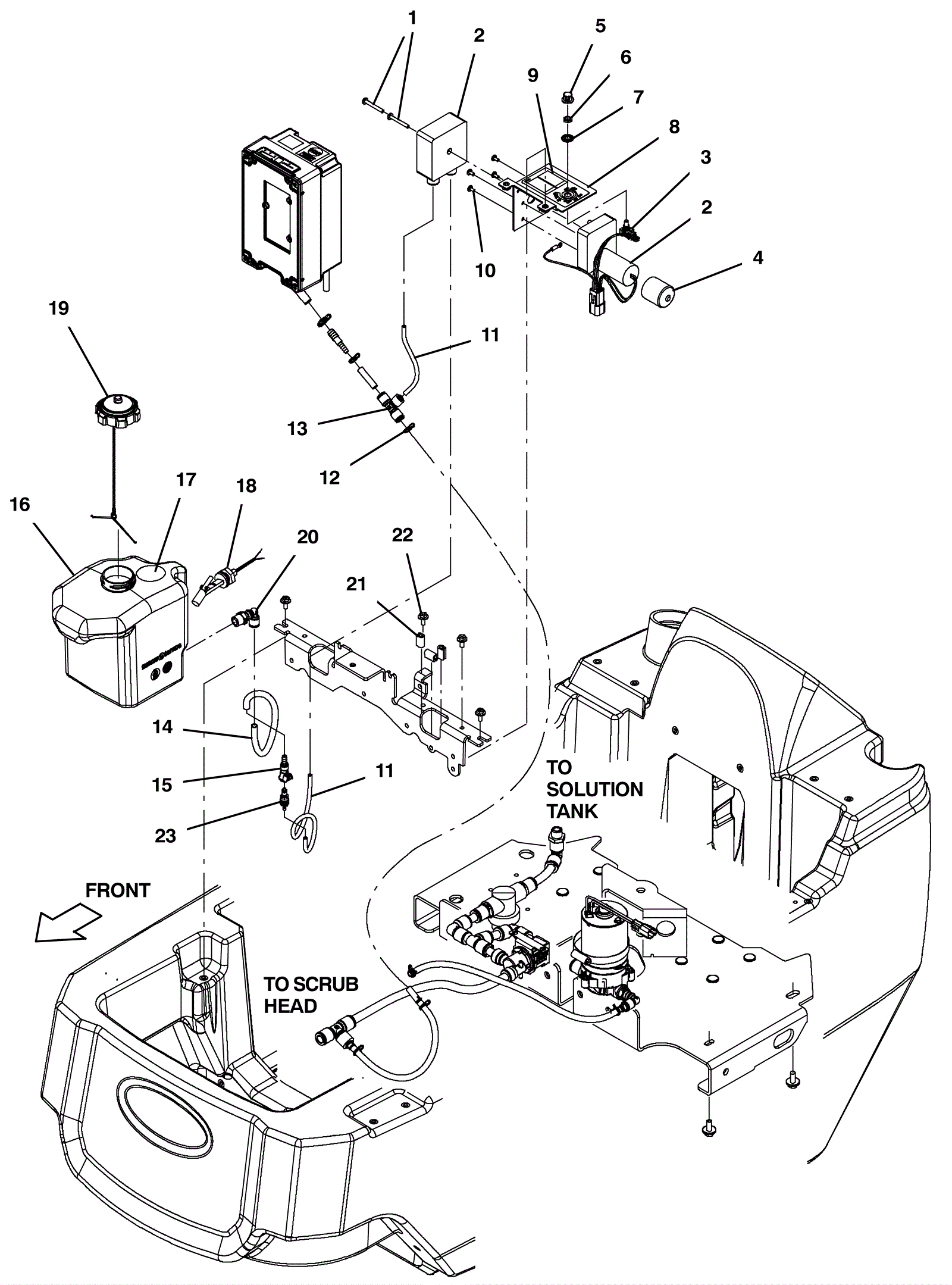

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
275-3145
|
Screw M5-.8 x 40mm pan head phillips stainless steel |
2 |
|
|
2a |
375-0159
|
24V pump assembly |
1 |
(includes 2b-3) |
|
2b |
375-0160
|
24V pump |
1 |
|
|
2c |
375-0161
|
Hose kit |
1 |
|
|
3 |
375-0162
|
Potentiometer |
1 |
|
|
4 |
175-8773
|
Vinyl cap |
1 |
|
|
5 |
175-4281
|
Potentiometer knob |
1 |
|
|
6 |
175-2277
|
Nut hex head |
1 |
|
|
7 |
175-4494
|
Washer M10 |
1 |
|
|
8 |
375-4637
|
Detergent pump bracket |
1 |
(includes 9) |
|
9 |
375-0245
|
Detergent metering decal |
1 |
|
|
10 |
999-1165
|
Screw 8-32 x 3/8 truss head phillips stainless steel |
4 |
|
|
11 |
375-3341
|
Clear PVC Hose |
1 |
|
|
12 |
175-5304
|
Hose clamp |
1 |
|
|
13 |
375-0148
|
Plastic tee fitting |
1 |
|
|
14 |
175-5305
|
Hose 1/4 x 3 foot |
1 |
|
|
15 |
375-4638
|
Plastic female fitting |
1 |
|
|
16 |
375-4639
|
Solution tank |
1 |
(includes 17-19) |
|
17 |
375-3344
|
Detergent metering tank decal |
1 |
|
|
18 |
375-0163
|
Liquid level sensor |
1 |
|
|
19 |
375-4640
|
Tank cap |
1 |
|
|
20 |
375-0154
|
90 degree elbow |
1 |
|
|
21 |
275-8203
|
Molding |
1 |
|
|
22 |
999-1383
|
Screw M6-1 x 16mm hex head stainless steel |
2 |
|
|
23 |
375-4641
|
Male plastic fitting |
1 |
|
|
