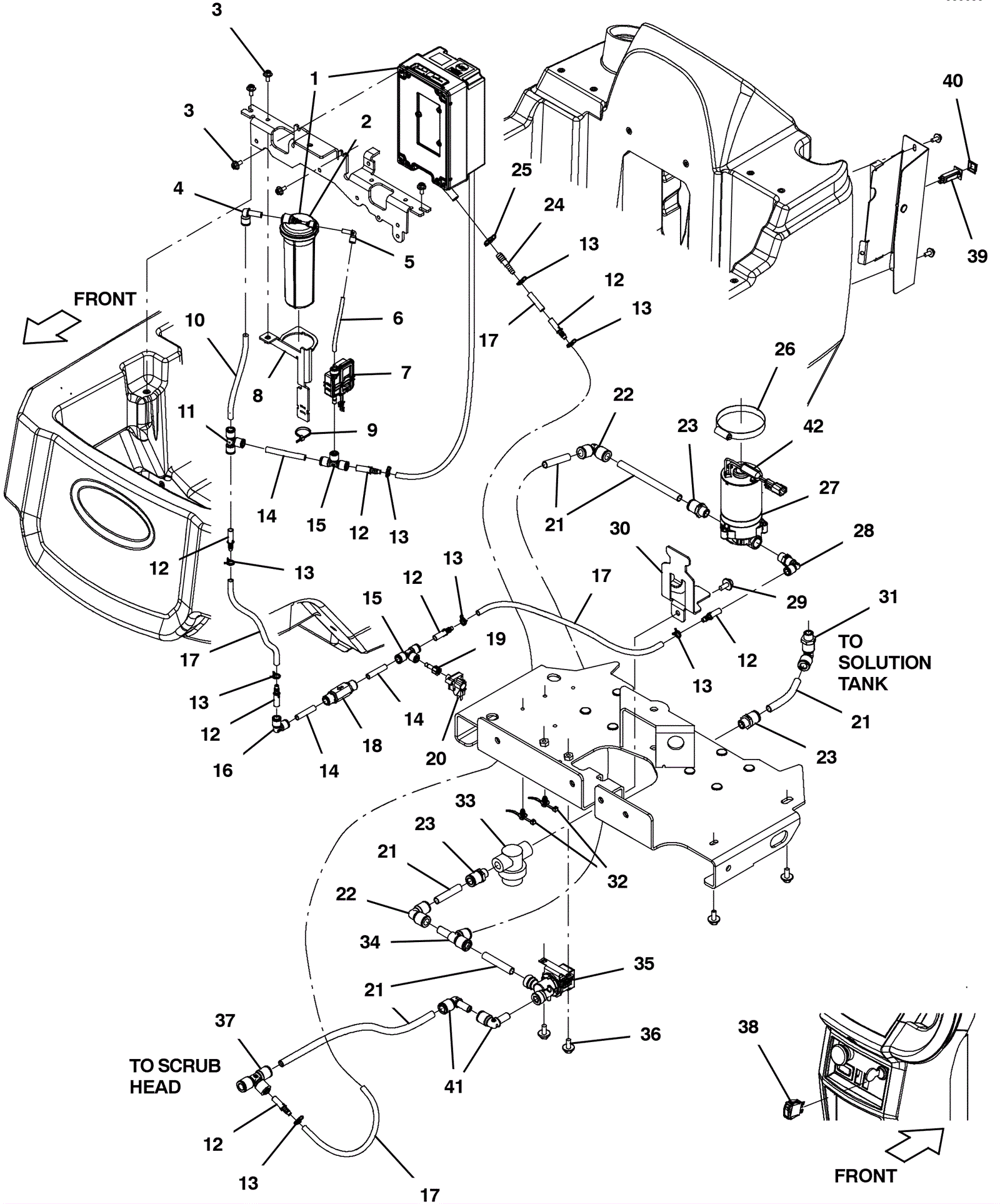

ec-H2O Solution Assembly

#PartDescription ReqNotesAvailability
1 375-0142 ec-H2O module kit 1 (includes 2)
2 375-0144 Nanoclean cartridge 1
3 999-1383 Screw M6-1 x 16mm hex head stainless steel 4
4 375-0075 90 degree elbow 1
5 375-0079 90 degree elbow 1
6 375-0145 PVC hose 1
7 375-0146 Dispenser pump assembly 1
8 375-4635 ec-H2O bracket weldment 1
9 175-7795 Cable tie 1
10 375-0143 Hose 1
11 375-0076 Plastic tee fitting 1
12 375-1138 Plastic fitting 6
13 175-5304 Hose clamp 7
14 375-0150 6 foot hose 1
15 375-0148 Plastic tee fitting 2
16 375-3339 90 degree elbow 1
17 175-9693 Hose 1/4 x 8 foot (Tennant Industrial) 1
18 375-0153 Check valve 1
19 375-4254 Straight plastic fitting 1
20 275-4944 Pressure switch 1
21a 375-0204 5 foot solution hose 1 (OEM)
21b 991-1405 Vinyl tubing 1/2 x 3/4 (sold by the inch) 1 (NON-OEM)(order qty 60 inches)
22 375-4232 Plastic fitting 2
23 375-0137 Plastic fitting 3
24 275-4947 Plastic fitting 1
25 175-3671 Hose clamp 1
26 997-2009 Hose clamp 1
27 375-0155 Solution pump 1
28 375-0154 90 degree elbow 1
29 275-4736 Screw M8-1.25 x 20mm hex washer head stainless steel SEMS 1
30 375-4636 Pump bracket 1
31 375-2508 Swivel fitting 1
32 275-5197 Fir tree clip 2
33a 375-0138 In-line filter 1 (includes 33b-33d)
33b 375-0139 Gasket 1
33c 375-0140 Mesh filter screen 1
33d 175-5868 Short clear filter bowl 1
33e 991-3109 Strainer assembly 1 (NON-OEM)
34 375-0134 Plastic tee fitting 1
35 375-4617 Solution solenoid valve 1
36 275-4736 Screw M8-1.25 x 20mm hex washer head stainless steel SEMS 2
37 375-0157 Plastic tee fitting 1
38 275-4773 Rocker switch 1
39 275-9986 10amp circuit breaker (Tennant Industrial) 1
40 275-2596 Circuit breaker boot (Tennant Industrial) 1
41 375-0156 90 degree elbow 2
42 375-4507 Split case inductor 1
