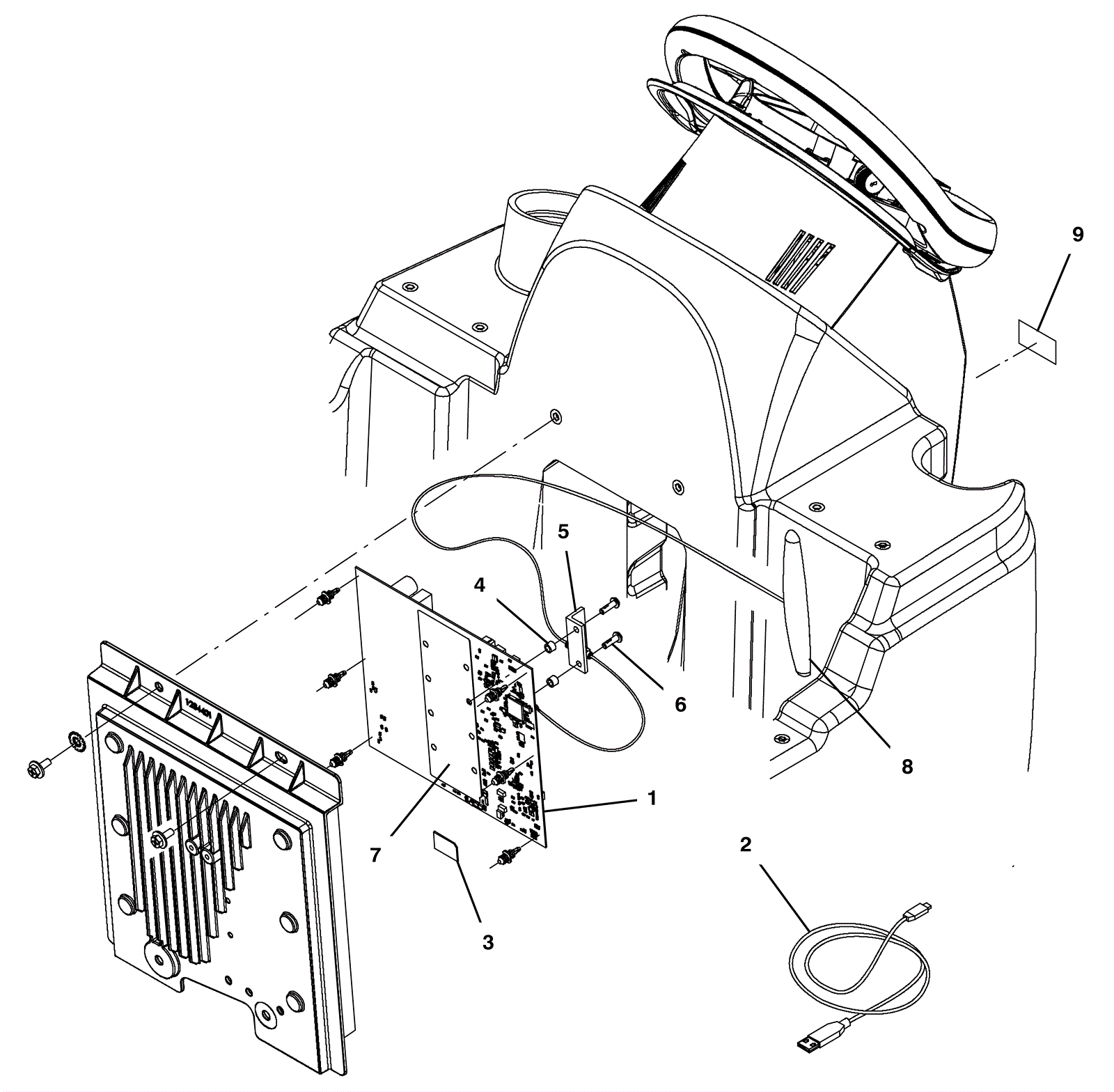

| # | Part | Description |
Req | Notes | Availability |
|---|
1a |
475-4183
|
KIT, CONTROL BOARD, TELEM, CI [T500] |
1 |
(includes 2a-3a) (requires Tennant True service or an authorized Tennant service provider) |
|
1b |
375-4634
|
Circuitboard kit with telemetry |
1 |
(includes 2a-3a) (requires Tennant True service or an authorized Tennant service provider) |
|
2a |
275-1425
|
Static ground strap (Tennant Industrial) |
1 |
|
|
2b |
375-1351
|
USB to USB mini cable |
1 |
|
|
3a |
375-9391
|
Telem antenna |
2 |
(after SN 10999246) |
|
3b |
375-0171
|
18 inch antenna (Tennant Industrial) |
1 |
(before SN 10999247) |
|
4 |
375-4267
|
Aluminum spacer |
2 |
|
|
5 |
375-4266
|
Bracket |
1 |
|
|
6 |
999-1403
|
Screw M8 x 16mm torx head |
2 |
|
|
7 |
375-3236
|
Control board pad |
1 |
|
|
8 |
175-2152
|
P clamp |
1 |
|
|
9a |
375-3337
|
Telemetry sim kit (USA) |
1 |
|
|
9b |
375-3839
|
Telemetry sim kit (International) |
1 |
|
|
10 |
175-2216
|
Diode plug |
1 |
|
|
