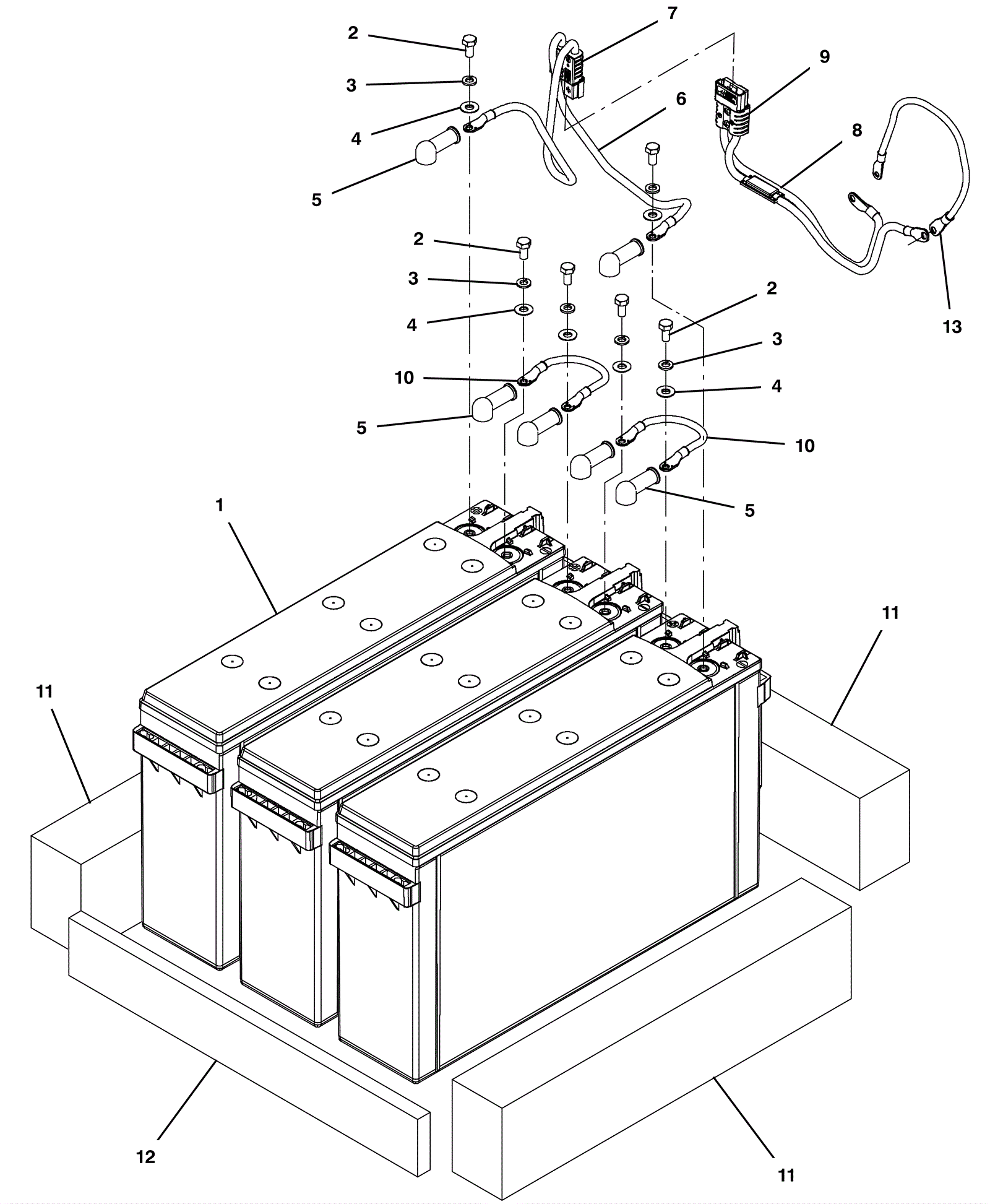

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
162-0047
|
12V 215Ah AGM battery (Group J185) (SNSR) |
3 |
(includes 2-4) |
|
2 |
999-0784
|
Screw M8-1.25 x 16mm hex head stainless steel |
2 |
|
|
3 |
999-0553
|
Washer 5/16 medium split lock stainless steel |
2 |
|
|
4 |
999-0024
|
Washer 5/16 flat stainless steel |
2 |
|
|
5 |
175-1103
|
Battery cable boot (black) |
6 |
|
|
6 |
375-4625
|
Cable assembly |
1 |
(includes 7) |
|
7 |
375-4626
|
Battery connector |
1 |
|
|
8 |
375-4627
|
Cable assembly |
1 |
(includes 9) |
|
9 |
375-4626
|
Battery connector |
1 |
|
|
10 |
998-0010
|
Battery jumper cable - ring type (red) |
2 |
|
|
11 |
175-2128
|
Battery spacer |
3 |
|
|
12 |
175-2127
|
Battery spacer |
1 |
|
|
13 |
375-3320
|
4 gauge battery jumper cable 15 inch (red) |
1 |
|
|
